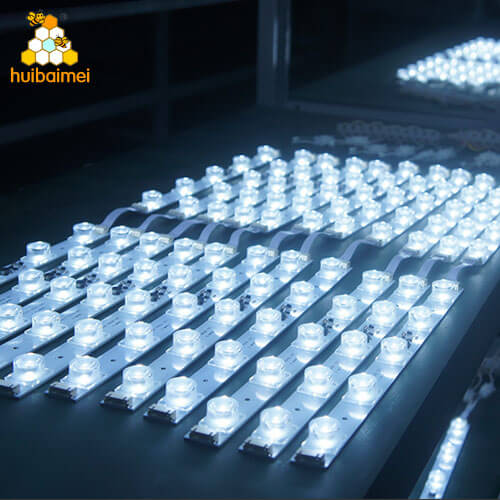

High power Wholesale China factory price SMD LED 3535 2.3W edgelight led module for double side fabric light box

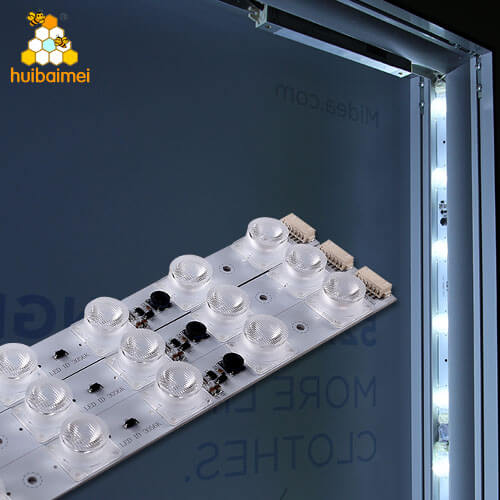

SMD3535 high power LED edge-lit solution, Samsung chip, special design of LENs to allow narrow beam angle 15*45. It is used for single or double sided lightboxes. 24VDC input,The bijective distance can be up to 1800mm for fabric light box. Aluminum PCB for good heat dissipation. Indoor as well as waterproof outdoor modules available.
Product parameters:
| Model | LED module 3535 |  |
| Led source | Edge-light | |
| Type | Rigid strip | |
| Body Material | aluminum | |
| Function | for light box, Lighting | |
| Color temperature | 6000K-7000K | |
| Emitting color | RGB/ white | High quality 2mmaluminum alloy base |
| Light Angle | 15*45 |  |
| Length | 45CM, 5 lamp beads | |
| Lamp power | 11.5W/meter | |
| CRI(Ra>) | 80 | |
| Input voltage | DC24V | |
| Lamp luminous flu(lm) | 400 | |
| Working lifetime(hour) | 50000-70000 | |
| IP rating | IP67(waterproof type) | |
| Working temperature | -40-60 | CP precision electronic components |
| Led chip brand | Samsung |
 |
| OEM & ODM | Both | |
| Certification | UL,CE,ROHS | |
| Free Sample | one sample is available | |
| MOQ | 1pcs | |
| Packaging details | carton+splint wooden frame | |
| EXW price | USD13.8 /per meter | |
| Supply ability | 100000 meters/ per week | Convenient cable wire socket |
