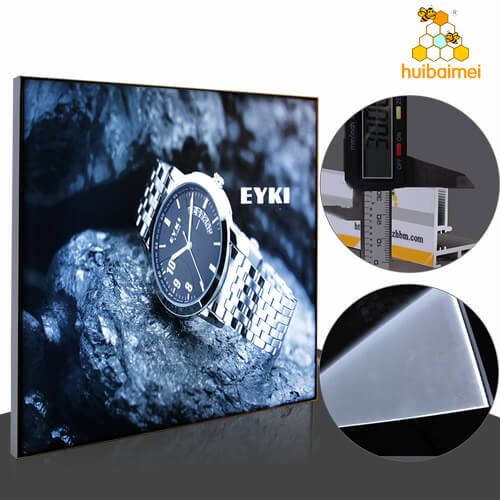

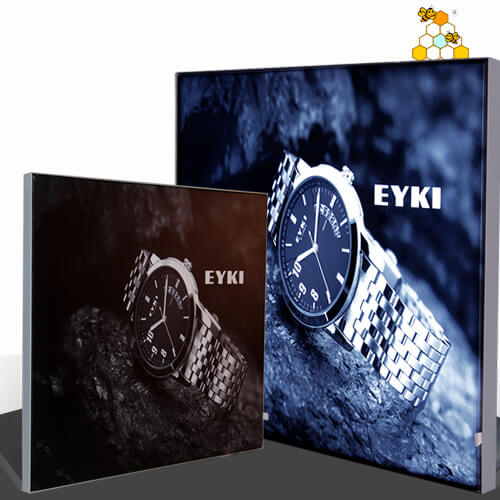

Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP

Single Side 30mm Aluminum Fabric Frame LED Slim Light Box With LGP

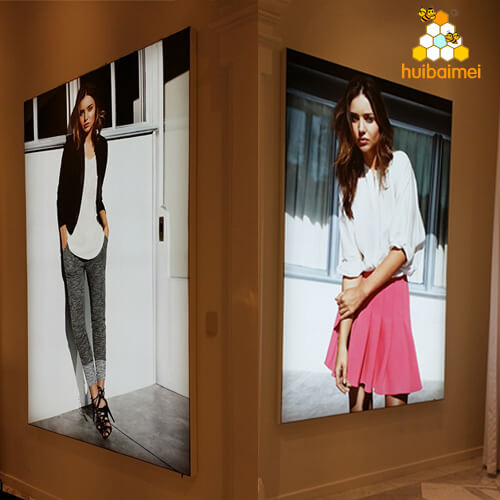

30mm ultra-thin fabric frame slim light box is cost-effective for indoor advertisement light box, this special design aluminum frame always use light guide panel for lighting and led rigid strips can be easy to insert in the aluminum frame, which can save a lot of labour cost, 2mm thickness aluminum profile is strong enough to avoid distortion. This item fabric frame slim light box be widely used in clothing advertising / cosmetics advertising and luxury brand.

Specification
Model	HBMC-W-30
Frame Thickness	30mm
Aluminum Profile Length	6meters (conventional)
Light source	LGP/SMD3030 Diffused LED backlit light
Material	6063 aluminum alloy and fabric poster
Function	For advertising and display
Frame Color	Silver,customized colors available
Shape	Square and special shape
Type	Single sided
Hang type	wall mounted or free standing
Poster print	UV,3P fabric,textile,french fabric
Surface Treatment	Anodized(conventional), other crafts available.
OEM & ODM	Both
Certification	CE UL RoHS SGS
Packing	Foam plastic bag+carton+splint wooden frame
Free Sample	Sample  is available,but you will be responsible for the shipping charge.

30mm frameless light box details:
01.Slim Design–Ultra Thin 30mm
02.Easy change picture–Embedded Poster Simply
03.Insert the LED strip and LGP into the side aluminum slot
04.Safety wiring–DC12V wire

30mm frameless light boxaccessories：
01.UV printing poster and Rubber strip
02.4 big corner connector G and Φ5 hexagonal screw spanner
03.LED rigid strip

LED Light Source：
Item HBMC-W-30 slim fabric aluminum profile, the design of “double slots”is specialized for fabric light box with LGP backlit. It is easier installation , just insert the LED light strip& LGP into the correspondingslot.The LGP is used as the backlit source. with  2 sided or 4 sided LED rigid strip. The light will be more uniformity.
