| GRADE: | 6000, 7000 Series | ALLOY OR NOT: | Is Alloy |
|---|---|---|---|
| COVER COLOR: | Milky | SURFACE TREATMENT: | Anodized Matt |
| SIZE: | Customized | ORIGIN OF PLACE: | Guangdong, China |
| COLOR: | Silver | USAGE: | LED |
| HIGH LIGHT: | led aluminium extrusion profiles, led light aluminium profile | ||

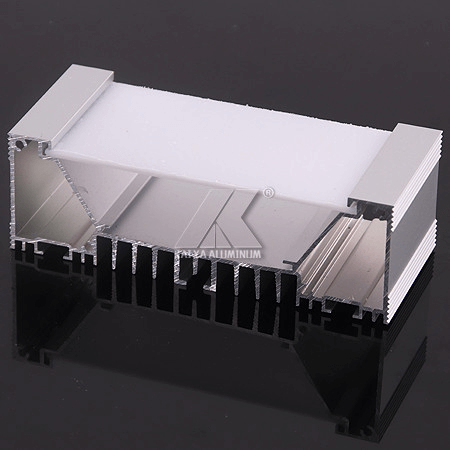

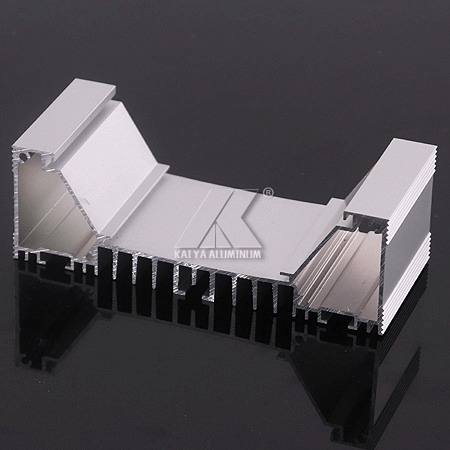

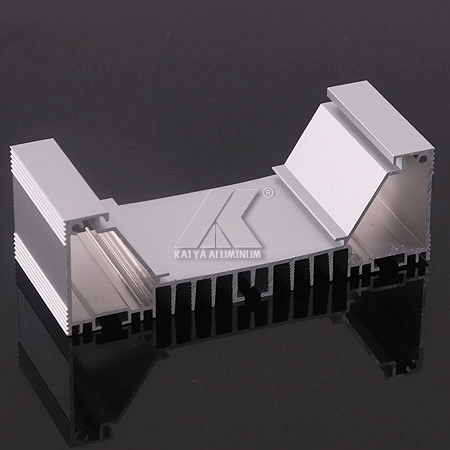

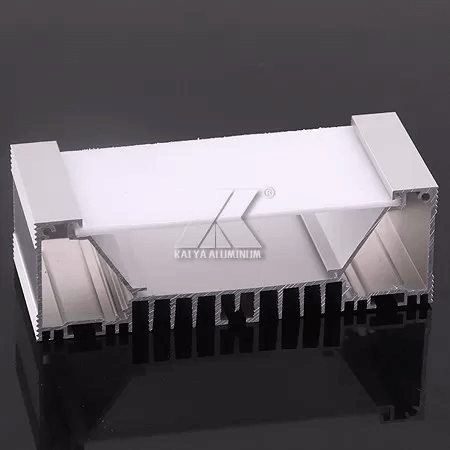

ISO Standard India Aluminum Alloy LED Bar With Milky Cover For Parking
Package : Protect film for each profile, shrink film / kraft paper exterior for each bundle or pack as customer request.
FOB port: Foshan, Shenzhen, Guangzhou port.
Delivery time: 15-20 days after receiving the deposite.
Payment term: 30% deposite and 70% balance after the delivery
Advantages of the extrusion process :
The extrusion process provides virtually unlimited opportunities for aluminium product shapes. Costs are cut by designing fewer components, which reduce fabrication and simplify assembly.
These features and benefits are unmatched by other materials and processes:
(1) Complex integral shapes
(2) Cost effective
(3) Low tooling costs
(4) Design flexibility
(5) Versatility in joining
(6) Machinable
(7) Rapid prototyping
(8) Short lead times
(9) Wide range of finishes
Mechanical Properties of Sections under Room Temperature
|
Alloy |
State |
Tensile strength test | Hardness test | ||||||||
| Tensile strength Rm M pa | Non-proportional Stretching Stress | Stretching rate | Pattern thickness | HV | HW | ||||||
| Rp0.2Mpa | (A50mm%) | mm | HV | HW | |||||||
| 6063 | T4 | 130 | 75 | 14 | – | ||||||
| T5 | 160 | 110 | 8 | 0.8 | 58 | 8 | |||||
| T6 | 205 | 180 | 8 | – | |||||||
|
6061 |
T4 | 184 | 110 | 16 | – | ||||||
| T6 | 265 | 245 | 8 | – | |||||||
| 6082
(6351) |
T4 | 205 | 110 | 12 | – | ||||||
| T6 | 290 | 250 | 6 | – | |||||||
General Chemical Composition of Alloy
| Alloy | 6063(%) | 6061(%) | 6082(%) |
| Silicon Si | 0.20~0.60 | 0.40~0.80 | 0.7~1.2 |
| Iron Fe | 0.35 | 0.70 | 0.5 |
| Copper Cu | 0.10 | 0.15~0.40 | 0.1 |
| Manganese Mn | 0.10 | 0.15 | 0.4~0.8 |
| Manganese Mg | 0.45~0.90 | 0.18~1.2 | 0.6~0.8 |
| Chromium Cr | 0.10 | 0.04~0.35 | 0.25 |
| Zine Zn | 0.10 | 0.25 | 0.2 |
| Titanium Ti | 0.10 | 0.15 | 0.1 |
| Others(each) | 0.05 | 0.05 | 0.05 |
| Others | 0.15 | 0.15 | 0.15 |
| Aluminum | Remainder | Remainder | Remainder |
FAQ ♦
Q1: What’s the thickness for anodizing? Can you do 15um?
A: Our normal thickness is about 10 um. Yes, we can do 15um and above.
Q2: How can we get your price ?
A:We need below information to quote for you:
1. Product Name;
2. Standard;
3. Material Grade (Chemical Composition);
4. Dimension;
5. Quantity;
6. The Drawing for Special Parts.
Q3: What color you can do for powder coating? The thickness for powder coat?
A: We can do any color for powder coat as long as you can provide the color sample. Our normally powder coating thickness is 60-80um.
Q4: What color you can do for wood grain?
A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc. If you need any other colors, we can do according to the color samples you provide.
Q5: What’s the delivery time for samples and mass production?
A: (1). 2-3 weeks to open the new moulds and make samples.
(2). 3-4 weeks after receipt of deposit and confirmation of the order.
