| SIZE: | Cutomized | KEYWORD: | Manufacture Profile |
|---|---|---|---|
| ORIGIN OF PLACE: | Guangdong,China | LENGTH: | Customized |
| MATERIAL: | Plywood | SHAPE: | Flat |
| TYPE: | OEM | CERTIFICATE: | ISO9000, ISO9001,ISO14000,CQC,RoHS |
| HIGH LIGHT: | aluminium wardrobe profiles, aluminum wardrobe frame | ||

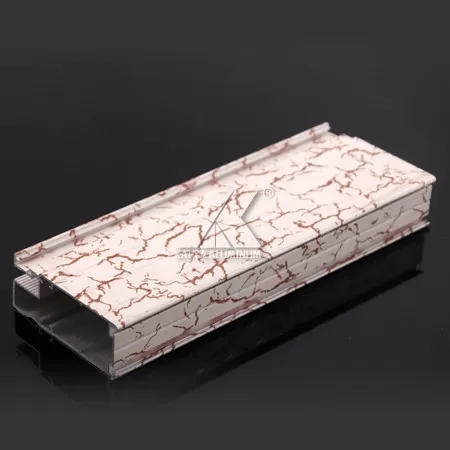

Figure 6063 Customize Size CQC Aluminum Extrusted Cabinet,Kitchen Profile
Product Description ♦
Packing : Protect film for each profile, shrink film / kraft paper exterior for each bundle or pack as customer request.FOB port: Foshan, Shenzhen, Guangzhou
Delivery time: 15-20 days after receiving the deposite.
Payment term: 30% deposite and 70% balance after the delivery
Material: 6063 Alloy
Temper: T5
Brand name: Kaiyamei Aluminum
Finish: Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polish, Wood grain, Sand Blasting
Color: Clear Satin, Bronze, Black, Golden, Silver,
Thickness: 0.8mm – 1.5mm
MOQ: 500KG. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
Length: 5.8-5.98m, or as customer’s request
Size: Customer’s request or choose our factoty drawing
Sample delivery: Two weeks (one week for mould +one week making sample)
Sample design: It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.
Maximum extruder machine: 8000 tons; Minimum extruder machine: 500 ton
Our profiles advantages ♦
(1) Lots of choices
(2) Cost effective
(3) Low tooling costs
(4) Design flexibility
(5) Versatility in joining
(6) Quick response
(7) Rapid prototyping
(8) Short delivery
(9) Wide range of finishes
(10) High quality
(11) Very little scratch.
(12) Accurate mold as well as accurate size.
(13) Standard alloy composition
(14) Both ends of the profiles are very plain and with no burr.
General Chemical Composition of Alloy ♦
| Alloy | 6063(%) | 6061(%) | 6082(%) |
| Silicon Si | 0.20~0.60 | 0.40~0.80 | 0.7~1.2 |
| Iron Fe | 0.35 | 0.70 | 0.5 |
| Copper Cu | 0.10 | 0.15~0.40 | 0.1 |
| Manganese Mn | 0.10 | 0.15 | 0.4~0.8 |
| Manganese Mg | 0.45~0.90 | 0.18~1.2 | 0.6~0.8 |
| Chromium Cr | 0.10 | 0.04~0.35 | 0.25 |
| Zine Zn | 0.10 | 0.25 | 0.2 |
| Titanium Ti | 0.10 | 0.15 | 0.1 |
| Others(each) | 0.05 | 0.05 | 0.05 |
| Others | 0.15 | 0.15 | 0.15 |
| Aluminum | Remainder | Remainder | Remainder |
Mechanical Properties of Sections under Room Temperature ♦
|
Alloy |
State |
Tensile strength test | Hardness test | ||||||||
| Tensile strength Rm M pa | Non-proportional Stretching Stress | Stretching rate | Pattern thickness | HV | HW | ||||||
| Rp0.2Mpa | (A50mm%) | mm | HV | HW | |||||||
| 6063 | T4 | 130 | 75 | 14 | – | ||||||
| T5 | 160 | 110 | 8 | 0.8 | 58 | 8 | |||||
| T6 | 205 | 180 | 8 | – | |||||||
|
6061 |
T4 | 184 | 110 | 16 | – | ||||||
| T6 | 265 | 245 | 8 | – | |||||||
| 6082
(6351) |
T4 | 205 | 110 | 12 | – | ||||||
| T6 | 290 | 250 | 6 | – | |||||||
