| GRADE: | 6063 | USAGE: | LED Profile |
|---|---|---|---|
| COVER COLOR: | Milky | COLOR: | Matt Finish |
| OEM: | Yes | CERTIFICATE: | ISO, SGS, RoSH, CQC |
| ALLOY OR NOT: | Is Alloy | TYPE: | Manufacture Profile |
| HIGH LIGHT: |
led aluminium extrusion profiles, aluminum profile for led |
||

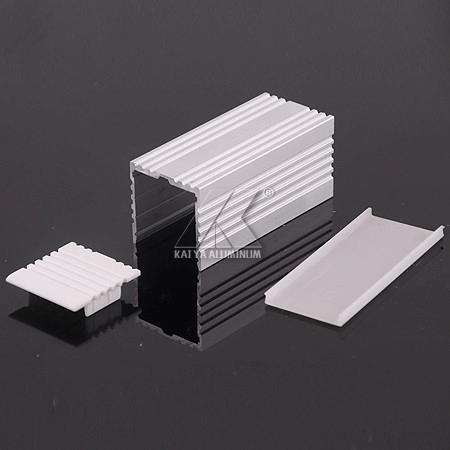

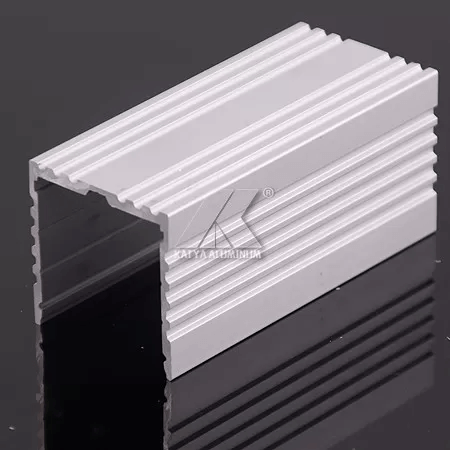

Customize Length Standad Alloy OEM Matt Finish Aluminum LED With Caps Profile
Product Description
1. Plenty of patterns and colors for your choice.
2. Strict control for surface finish, very little scratch.
3. Accurate mold as well as accurate size.
4. Standard alloy composition
5. Both ends of the profiles are very plain and with no burr.
Aluminum profile surface treatment
| Class | Min-av erg film thickness | Min-part film thickness |
| AA10 | 10 | 8 |
| AA15 | 15 | 12 |
| AA20 | 20 | 16 |
| AA25 | 25 | 20 |
Mechanical Properties of Sections under Room Temperature
|
Alloy |
State |
Tensile strength test | Hardness test | ||||||||
| Tensile strength Rm M pa | Non-proportional Stretching Stress | Stretching rate | Pattern thickness | HV | HW | ||||||
| Rp0.2Mpa | (A50mm%) | mm | HV | HW | |||||||
| 6063 | T4 | 130 | 75 | 14 | – | ||||||
| T5 | 160 | 110 | 8 | 0.8 | 58 | 8 | |||||
| T6 | 205 | 180 | 8 | – | |||||||
|
6061 |
T4 | 184 | 110 | 16 | – | ||||||
| T6 | 265 | 245 | 8 | – | |||||||
| 6082
(6351) |
T4 | 205 | 110 | 12 | – | ||||||
| T6 | 290 | 250 | 6 | – | |||||||
| Advantages of the extrusion process | ||
| The extrusion process provides virtually unlimited opportunities for aluminium product shapes. Costs are cut by designing fewer components, which reduce fabrication and simplify assembly. | ||
| These features and benefits are unmatched by other materials and processes | ||
| Complex integral shapes | Cost effective | Low tooling costs |
| Design flexibility | Versatility in joining | Machinable |
| Rapid prototyping | Short lead times | Wide range of finishes |
