| CERTIFICATE: | ISO9000, ISO9001,ISO14000,CQC,RoHS | FINISH: | Anodized |
|---|---|---|---|
| COLOR: | Black | USAGE: | Ladder |
| OEM: | Yes | HARDNESS: | T5 |
| STYLE: | Factory Profile | ORIGIN OF PLACE: | Guangdong, China |
| HIGH LIGHT: | aluminum profile for furniture, aluminium profile for kitchen cabinets | ||

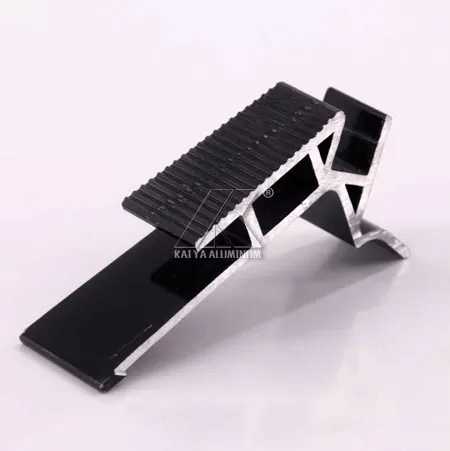

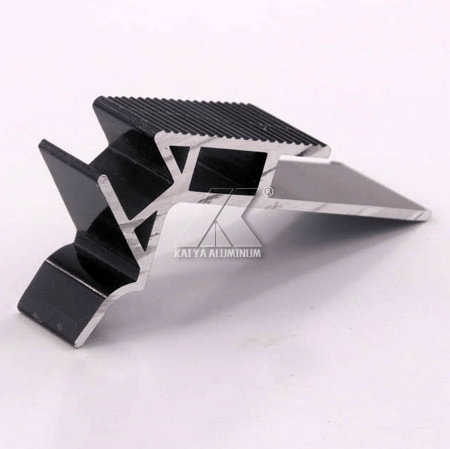

Anodized Aluminum Ladder Black Plus LED in Stage Aluminum Extrusted Profile
Prodictopm Description
Package : Protect film for each profile, shrink film / kraft paper exterior for each bundle or pack as customer request.
FOB port: Foshan, Shenzhen, Guangzhou
Delivery time: 15-20 days after receiving the deposite.
Payment term: 30% deposite and 70% balance after the delivery
| Brand Name | Kaiyamei Aluminum |
| Material | 6063 Alloy |
| Temper | T5 |
| Grade | 6000 Series |
| Thickness | General profiles thickness:0.8 – 5.0 mm; |
| Color | Anodized protection thickness: 8 – 10μm
Powder coating protection thickness: 40-80μm |
| Diameter | Customize |
| MOQ | 500KG |
| Length | 5.8-6.0m, or as cuostomer request |
| Color | Black, or as your requests |
| Surface Treatment | Mill finish , anodize, powder coating , elecrophoresis ,PVDF coating, all kinds of high simulation wood grain processing , etc. |
| Manufacture Technological Process | Aluminum ingot → Melting and casting → Homogenizing → Extrusion → Aging → Powder coating → Pouring rubber for heat insulation → Acceptance test → Packing → Warehouse → Delivery |
| Certification | ISO 9000 ; ISO 9001 ; ISO 14000 ; CQC ; RoHS |
| Sample delivery | 2 weeks |
Aluminum profile surface treatment
| Class | Min-av erg film thickness | Min-part film thickness |
| AA10 | 10 | 8 |
| AA15 | 15 | 12 |
| AA20 | 20 | 16 |
| AA25 | 25 | 20 |
| Advantages of the extrusion process | ||
| The extrusion process provides virtually unlimited opportunities for aluminium product shapes. Costs are cut by designing fewer components, which reduce fabrication and simplify assembly. | ||
| These features and benefits are unmatched by other materials and processes | ||
| Complex integral shapes | Cost effective | Low tooling costs |
| Design flexibility | Versatility in joining | Machinable |
| Rapid prototyping | Short lead times | Wide range of finishes |
Answer and Questions
Q1: What is aluminum extrusion, fabrication, and anodization?
A: Aluminum Extrusion refers to a process of creating shapes with an aluminum billet or log by forcing it to flow through a shaped opening in a die. Aluminum can be extruded into standard shapes or specific designs depending on a customer’s preference.
Aluminum Fabrication refers to building aluminum components by cutting, drilling, slotting, tapping,bending, CNC machining, mechanical assembly and welding.
Aluminum Anodization is an electro-chemical process of coating aluminum with a thin layer of oxide to increase corrosion resistance and harden the surface.
Aluminum also can be dyed with various anodizing colours,which in most widely used is Brone shades.
Q2: What’s the thickness for anodizing? Can you do 15um?
A: Our normal thickness is about 10 um. Yes, we can do 15um and above.
Q3: What color you can do for powder coating? The thickness for powder coat?
A: We can do any color for powder coat as long as you can provide the color sample. Our normally powder coating thickness is 60-80um.
Q4: What color you can do for wood grain?
A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc. If you need any other colors, we can do according to the color samples you provide
Q5: What’s the delivery time for samples and mass production?
A: (1). 2-3 weeks to open the new moulds and make samples.
(2). 3-4 weeks after receipt of deposit and confirmation of the order.
