HD photograph
With high refresh rate in excess of 2000Hz and high-brightness, SP series can satisfy the live broadcast and high definition photography constantly without shadow and flicker.
The entire screen can rotate 90° inward.

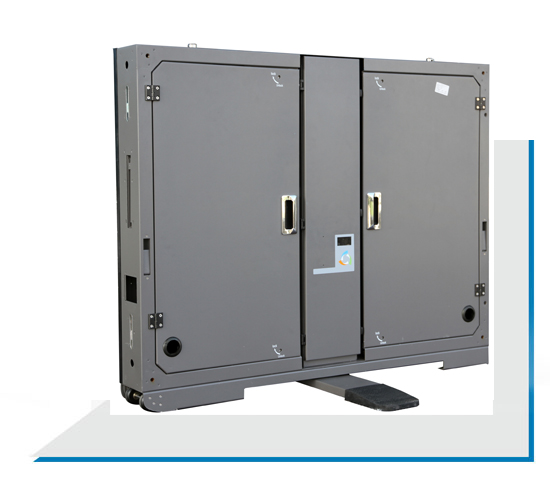

The cabinets are equipped with unique standing brackets.Nearly a half-a-meter channel will be formed quickly once you loosened the eccentric hook and held the handle easily rotate 90°. Likewise, rotation of two panels can form a channel of nearly a meter.
Safety
The module masks and rubber gasket effectively prevent athletes from being injured by unexpected bump and hit.
Ultra slim
The panel is ultra slim and light and looks stunning and splendid with a curvy figure. In addition, minimal use of wiring and the innovative application of cable cluster contribute to an ordered, clean and tidy cabinet.14.2% thinner and 13.3% lighter than the traditional cabinets.
UEFA
It totally meets UEFA stadium standard requirement, TUV-EMC certificated, widely used in different sport events.
Specification
|
Parameter |
S10P |
S12.5P |
|
|
Physical
Parameter
|
Pixel Configuration |
SMD2727 |
SMD2727 |
|
Pixel Pitch （mm） |
10 |
12.5 |
|
|
Pixel matrix per panel |
120×90 |
120×90 |
|
|
Pixel density（pixels/sq.m.） |
10000 |
6400 |
|
|
Cabinet Dimensions (LxWxH)/（mm） |
1200x900x125 |
1200x900x125 |
|
|
Module Dimensions (LxWxH)/（mm） |
300×300 |
300×300 |
|
|
Panel material |
Aluminum |
Aluminum |
|
|
Cabinet weight (kg/panel) |
45 |
45 |
|
|
Module weight (kg/panel) |
1.33 |
1.33 |
|
|
Electronic
Parameter
|
Color Grayscale (Bit) |
14 |
14 |
|
Gray Scale per Color （level) |
16384 |
16384 |
|
|
Refresh Rate（Hz） |
3840 |
3840 |
|
|
Driving Type |
1/2 |
1/2 |
|
|
Signal Transmission Distance （m） |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
|
|
Optical
Parameter
|
Brightness（nit） |
5500 |
5500 |
|
Optimal Horizontal Viewing Angle（°） |
160 |
160 |
|
|
Optimal Vertical Viewing Angle（°） |
Up 70 / down 70 |
Up 70 / down 70 |
|
|
Electrical
Parameter
|
AC Input Voltage（V） |
AC: 100V～240V |
AC: 100V～240V |
|
AC Input Power Maximum Value（W/m²） |
648 |
662 |
|
|
AC Input Power Typical Value（W/m²） |
216 |
221 |
|
|
Circumstance Parameter |
Storage Temperature（℃） |
-40 -60 |
-40 -60 |
|
Working Temperature (℃) |
-20 -50 |
-20 -50 |
|
|
IP rating (Front/Rear) |
IP65/IP54 |
IP65/IP54 |
|
|
Storage Humidity (RH) |
10%~90% non-condensing |
10%~90% non-condensing |
|
|
Working Humidity (RH) |
10%~90% non-condensing |
10%~90% non-condensing |
|
|
Lifetime Typical Value（hrs） |
≥100000 |
≥100000 |
|
|
Installation Type |
Cabinet installation type |
fix |
fix |
