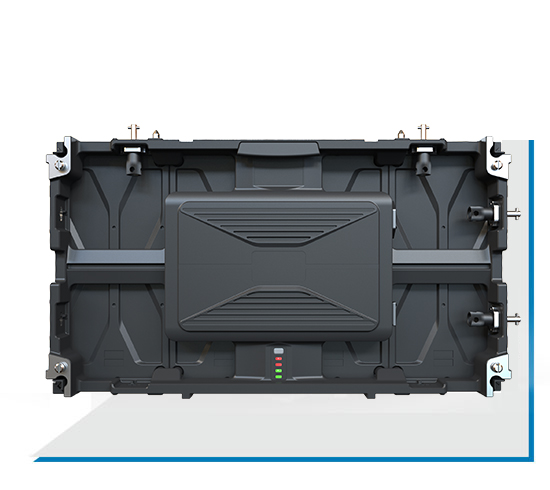

Exquisite Panel Design
HNX Series is the lider professional LED video wall solution to feature such customer-friendly design. With a slim standard 27 inch 16：9 panel size,it’s a truly seamless video wall made to fit any desired size.
Data and Power Backup
Dual redundant power supplies in each panel. If one power supply fails, the other can ensure normal working of panel. Two RV cards in each panel. If one RV card fails, the other can ensure normal working of panel. Two RV cards are synchronously working for backup function.
Full Front Access
Electric vacuum pressure tool dismantling one LED module just needs 3 seconds
Easy for Maintenance
HUB board and power supply can be sheets removed as you remove those two modules against them.
Frame structure
Frame structure for HNX fine pitch wall-mounting.
Frame structure
Frame structure for HNX fine pitch wall-mounting
Installation tool
Installation tool for HNX fine pitch wall-mounting.
Specification
|
Parameter |
HN1.2X |
HN1.5X |
HN1.8X |
HN2.5X |
|
|
Physical Parameter |
Pixel Configuration |
SMD1010 |
SMD1010 |
SMD1010 |
SMD2020 |
|
Pixel Pitch （mm） |
1.25 |
1.56 |
1.87 |
2.5 |
|
|
Pixel matrix per panel |
480×270 |
384×216 |
320×180 |
240×135 |
|
|
Pixel density（pixels/sq.m.） |
640000 |
409600 |
284444 |
160000 |
|
|
Cabinet Dimensions (LxWxH)/（mm） |
600×337.5×60 |
600×337.5×60 |
600×337.5×60 |
600×337.5×60 |
|
|
Module Dimensions (LxWxH)/（mm） |
150×337.5 |
150×337.5 |
150×337.5 |
150×337.5 |
|
|
Panel material |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
|
|
Cabinet weight (kg/panel) |
6.4 |
6.4 |
6.4 |
6.4 |
|
|
Module weight (kg/panel) |
0.68 |
0.68 |
0.68 |
0.68 |
|
|
Electronic Parameter |
Color Grayscale (Bit) |
13bit |
13bit |
13bit |
13bit |
|
Gray Scale per Color （level) |
8192 |
8192 |
8192 |
8192 |
|
|
Refresh Rate（Hz） |
3840 |
2880 |
3840 |
3840 |
|
|
Driving Type |
1/30 |
1/27 |
1/30 |
1/23 |
|
|
Signal Transmission Distance （m） |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
|
|
Optical Parameter |
Brightness（nit） |
600 |
600 |
600 |
800 |
|
Optimal Horizontal Viewing Angle（°） |
150 |
165 |
170 |
145 |
|
|
Optimal Vertical Viewing Angle（°） |
Up 60 / down 65 |
Up 70 / down 70 |
Up 65 / down 75 |
Up 55 / down 40 |
|
|
Electrical Parameter |
AC Input Voltage（V） |
AC: 100V-240V |
AC: 100V-240V |
AC: 100V-240V |
AC: 100V-240V |
|
AC Input Frequency（Hz） |
50-60 |
50-60 |
50-60 |
50-60 |
|
|
AC Input Power Maximum Value（W/㎡） |
485 |
450 |
410 |
396 |
|
|
AC Input Power Typical Value（W/㎡） |
162 |
150 |
150 |
132 |
|
|
Circumstance Parameter |
IP rating (Front/Rear) |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
|
Storage Humidity (RH) |
10%~90% non‐condensing |
10%~90% non‐condensing |
10%~90% non‐condensing |
10%~90% non-condensing |
|
|
Working Humidity (RH) |
10%~60% non-condensing |
10%~60% non‐condensing |
10%~60% non‐condensing |
10%~60% non-condensing |
|
|
Lifetime Typical Value（hrs） |
100000 |
100000 |
100000 |
100000 |
|
|
Installation Type |
Cabinet installation type |
Fix |
Fix |
Fix |
Fix |
