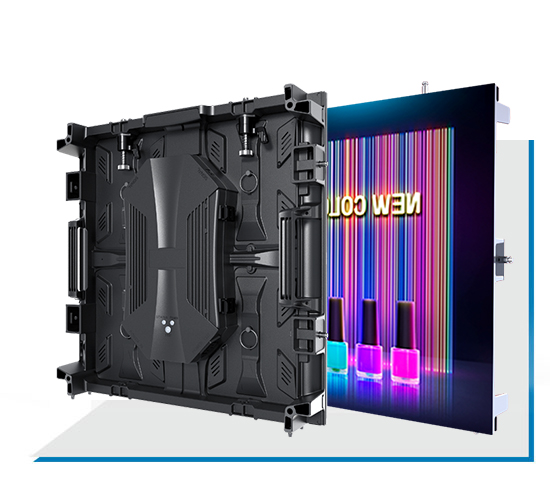

HNC1.6/1.8/2.5/3/4 PRO

Creations change the world!
HNC PRO series can be widely used in various occasions, high-definition and ultra-high definition are available!

Share with:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on email

Light and slim

The cabinet is very slim and light, it’s only 68mm thick and only 6.4kg in weight which can achieve better effect and save labor force.





Locking fast

– There are fast locks on cabinet every sides which can splicing two cabinet quickly. There are 2 locating pin which are useful for quick positioning during installation to make the work more quickly only with one people -Maximum hanging length:10 meters.



Easy for maintenance

Power, receiving card and HUB all can maintain from the back side. First, pull out the two modules nearby; second loosen the screws; then get out the receiving card, power and HUB.



Upgraded module

Ventilation holes on the module is designed for better flatness and heat dissipation.





Control box upgraded

-Metal cover  -Heat dissipation rubber The heat dissipation of the control box is much more better.

Wide viewing angle

Horizontal viewing angle all achieve 130°, vertical viewing angle all achieve 105°.



Specification

Parameter

HNC1.6 PRO

HNC1.8 PRO

HNC2.5 PRO

HNC3 PRO

HNC4 PRO

Physical

Parameter

Pixel Configuration

SMD1010

SMD1515

SMD2020

SMD2020

SMD2020

Pixel Pitch (mm)

1.667

1.87

2.5

3

4

Pixel matrix per panel

288×288

256×256

192×192

160×160

120×120

Pixel density(pixels/sqm)

359856

284444

160000

111111

62500

Cabinet Dimensions (LxWxH)/(mm)

480x480x68

480x480x68

480x480x68

480x480x68

480x480x68

Module Dimensions (LxWxH)/(mm)

240×240

240×240

240×240

240×240

240×240

Panel material

Die Casting Aluminum

Die Casting Aluminum

Die Casting Aluminum

Die Casting Aluminum

Die Casting Aluminum

Cabinet weight (kg/panel)

6.4

6.4

6.4

6.4

6.4

Module weight (kg/panel)

0.5

0.5

0.5

0.5

0.5

Electronic

Parameter

Color Grayscale (Bit)

14

14

14

14

14

Gray Scale per Color (level)

16384

16384

16384

16384

16384

Refresh Rate(Hz)

2880

2880

2880

2880

2880

Driving Type

1/24

1/32

1/24

1/27

1/15

Signal Transmission Distance (m)

CAT5 cable:<100 m;
Single mode fiber:<10 km

CAT5 cable:<100 m;
Single mode fiber:<10 km

CAT5 cable:<100 m;
Single mode fiber:<10 km

CAT5 cable:<100 m;
Single mode fiber:<10 km

CAT5 cable:<100 m;
Single mode fiber:<10 km

Optical

Parameter

Brightness(nit)

600

600

900

900

900

Optimal Horizontal Viewing Angle(°)

160

145

145

145

150

Optimal Vertical Viewing Angle(°)

Up 75 / down 75

Up 40 / down 45

Up 40 / down 45

Up 60 / down 45

Up 55 / down 55

Electrical

Parameter

AC Input Voltage(V)

AC: 200V-240V

AC: 200V-240V

AC: 200V-240V

AC: 200V-240V

AC: 200V-240V

AC Input Frequency(Hz)

50-60

50-60

50-60

50-60

50-60

AC Input Power Maximum Value(W/sqm)

372

333

388

363

384

AC Input Power Typical Value(W/sqm)

124

111

172

121

128

Circumstance

Parameter

IP rating (Front/Rear)

IP40/IP20

IP40/IP20

IP40/IP20

IP40/IP20

IP40/IP20

Storage Temperature(℃)
-40-60
-40-60
-40-60
-40-60
-40-60
Working Temperature (℃)
0-40
0-40
0-40
0-40
0-40

Storage Humidity (RH)

10%~90% non‐condensing

10%~90% non‐condensing

10%~90% non‐condensing

10%~90% non‐condensing

10%~90% non‐condensing

Working Humidity (RH)

10%~60% non-condensing

10%~60% non‐condensing

10%~60% non‐condensing

10%~60% non‐condensing

10%~60% non‐condensing

Lifetime Typical Value(hrs)

100000

100000

100000

100000

100000

Installation

Cabinet installation type

Fix

Fix

Fix

Fix

Fix

Remark: Power consumption tolerance: ±15%, according to the actual situation

Shenzhen LAMP Technology Co.,Ltd. reserves the right to modify specifications and parameters without prior notice.
