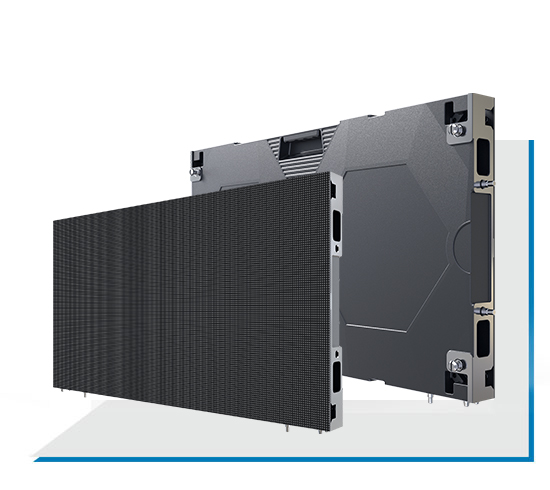

HNA1.2/1.5/1.8

Indoor fixed installation 16:9 small spacing products!
Multi-assembly Widely application Design for indoor/fix Retail shops, chain stores, TV studios, Cinemas, Airports, Museums.

Share with:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on email

HDR HD display

Full name is High-Dynamic Range -HDR screens can display images in high brightness perfectly. By enhancing the contrast of details in the video greatly, it can show details in both light and shadow more clear -HNA fine pitch series supports HDR function, with brilliant display effects and great ability to show color in its most real status.



16:9 ratio standard screen

-It can make big screen with 16:9 ratio freely, which can match the majority of standard video perfectly -It can make 2K, 4K and 8K big screen ideally and reflect the video content in its most real status at largest, by matching dot-to-dot content displaying.



Intelligent modules

Store and manage calibration data, LED panel information, module parameters and detect the broken LED by dots intelligently. Support to load parameter data and backup the calibration data.



Double backup of PSU and signal

Double backup of power and signal, so when there is any breakdown, the display quality is still guaranteed and stable.



Full front maintenance

Full front maintenance without any space needed for backside.





Wireless connection

There are no cables between cabinets and no apparent cables outside the cabinet. Inner cable connection will make the transmission of signal and power more stable, and the whole will look more neat and simple.



One screen for multiple purposes

Mirror screen, meeting all-in-one machine solution, one screen multi-purpose perfect for different fields.



Specification

Parameter

HNA1.2

HNA1.5

HNA1.8

Physical

Parameter

Pixel Configuration

SMD1010

SMD1010

SMD1515

Pixel Pitch (mm)

1.25

1.56

1.875

Pixel matrix per panel

480×270

384×216

320×180

Pixel density(pixels/sqm)

640000

409600

284444

Cabinet Dimensions (LxWxH)/(mm)

600×337.5×40

600×337.5×40

600×337.5×40

Module Dimensions (LxWxH)/(mm)

150×337.5

150×337.5

150×337.5

Panel material

Die Casting Aluminum

Die Casting Aluminum

Die Casting Aluminum

Cabinet weight (kg/panel)

5.5

5.5

5.5

Module weight (kg/panel)

0.35

0.35

0.35

Electronic

Parameter

Color Grayscale (Bit)

13

13

13

Gray Scale per Color (level)

8192

8192

8192

Refresh Rate(Hz)

3840

2880

3840

Driving Type

1/30

1/27

1/30

Signal Transmission Distance (m)

CAT5 cable:<100 m;
Single mode fiber:<10 km

CAT5 cable:<100 m;
Single mode fiber:<10 km

CAT5 cable:<100 m;
Single mode fiber:<10 km

Optical

Parameter

Brightness(nit)

600

600

600

Optimal Horizontal Viewing Angle(°)

175

175

168

Optimal Vertical Viewing Angle(°)

Up 80 / down 85

Up 80 / down 85

Up 70 / down 75

Electrical

Parameter

AC Input Voltage(V)

AC: 100V-240V

AC: 100V-240V

AC: 100V-240V

AC Input Frequency(Hz)

50-60

50-60

50-60

AC Input Power Maximum Value(W/sqm)

540

496

675

AC Input Power Typical Value(W/sqm)

180

165

225

Circumstance

Parameter

IP rating (Front/Rear)

IP40/IP20

IP40/IP20

IP40/IP20

Storage Temperature(℃)
-40-60
-40-60
-40-60
Working Temperature (℃)
0-40
0-40
0-40

Storage Humidity (RH)

10%~90% non‐condensing

10%~90% non‐condensing

10%~90% non‐condensing

Working Humidity (RH)

10%~60% non-condensing

10%~60% non‐condensing

10%~60% non‐condensing

Lifetime Typical Value(hrs)

100000

100000

100000

Installation

Cabinet installation type

Fix

Fix

Fix

Remark: Power consumption tolerance: ±15%, according to the actual situation

Shenzhen LAMP Technology Co.,Ltd. reserves the right to modify specifications and parameters without prior notice.
