Smooth round corner
Seamless and smooth round corner for cube project.

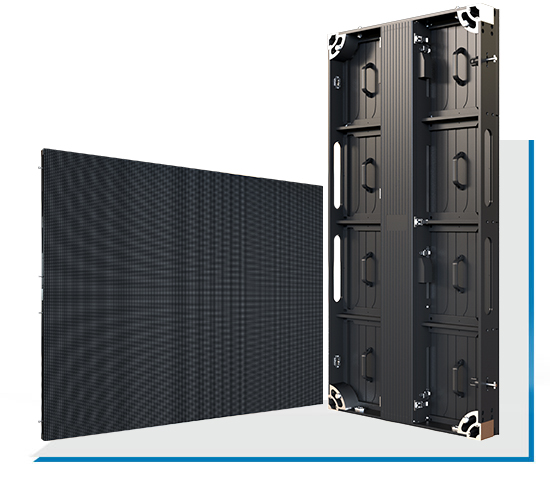

Diversified cabinet size
Diversified cabinet size to meet the needs of different scenarios, providing a 500x500mm, 500x750mm, 500x1000mm,cabinet option.
Good heat dispassion
Fanless design,the cabinet is designed with a full hollow structure and a large cooling area, and thus it takes little time for cooling. The thermal conductive adhesive attached to the power supply is in contact with the back cover to accelerate the cooling in the control cabinet.
Waterproof module
Waterproof module, reducing the risk of water ingress into the module.
Front maintenance
Remove the module, open the front panel buckle of the control box, remove the front panel and the entire large adapter plate (both power supply and card are fixed on the large adapter plate), and unplug the connector to maintain the power supply; remove the fixing screws of the receiving card or adapter plate to maintain the receiving card or adapter plate.
Fast installation
The left and right quick locks between the cabinets are quickly installed. For front installation, both the quick installation with a hanging pin and the installation mode of connecting piece and steel structure are optional. Rear installation comes standard with the cabinet connecting pieces, along with the structural drawings for installation.
Specification
Parameter
|
L3.9X
|
L4.8X
|
L5.9X
|
Physical
Parameter
|
Pixel Configuration
|
SMD1921
|
SMD1921
|
SMD2727
|
Pixel Pitch (mm)
|
3.9
|
4.8
|
5.9
|
Pixel matrix per panel
|
128×128/192/256
|
104×104/156/208
|
84×84/126/168
|
Pixel density(pixels/sq.m.)
|
65536
|
43264
|
28224
|
Cabinet Dimensions (LxWxH)/(mm)
|
500×500/750/1000×90
|
500×500/750/1000×90
|
500×500/750/1000×90
|
Module Dimensions (LxWxH)/(mm)
|
500×250
|
500×250
|
500×250
|
Panel material
|
Aluminum Profile
|
Aluminum Profile
|
Aluminum Profile
|
Cabinet weight (kg/panel)
|
9/13/16
|
9/13/16
|
9/13/16
|
Module weight (kg/panel)
|
1.57
|
1.57
|
1.57
|
Electronic
Parameter
|
Color Grayscale (Bit)
|
14bit
|
14bit
|
14bit
|
Contract
|
3814:1
|
7682:1
|
9410:1
|
Gray Scale per Color (level)
|
16384
|
16384
|
16384
|
Refresh Rate(Hz)
|
3840
|
3840
|
3840
|
Driving Type
|
1/16
|
1/9
|
1/7
|
Signal Transmission Distance (m)
|
CAT5 cable:<100 m;
Single mode fiber:<10 km
|
CAT5 cable:<100 m;
Single mode fiber:<10 km
|
CAT5 cable:<100 m;
Single mode fiber:<10 km
|
Optical
Parameter
|
Brightness(nit)
|
5000-5500
|
5000-5500
|
5500-6000
|
Optimal Horizontal Viewing Angle(°)
|
150
|
150
|
150
|
Optimal Vertical Viewing Angle(°)
|
Up 30/down 45
|
Up 40/down 55
|
Up 40/down 55
|
Electrical
Parameter
|
AC Input Voltage(V)
|
AC: 100V~240V
|
AC: 100V~240V
|
AC: 100V~240V
|
AC Input Frequency(Hz)
|
50
|
50
|
50
|
AC Input Power Maximum Value(W/m²)
|
574
|
715
|
672
|
AC Input Power Typical Value(W/m²)
|
192
|
238
|
224
|
Circumstance
Parameter
|
Storage Temperature(℃)
|
‐40 ‐60
|
‐40 ‐60
|
‐40 ‐60
|
Working Temperature (℃)
|
-30 -50
|
-30 -50
|
-30 -50
|
IP rating (Front/Rear)
|
IP65/IP54
|
IP65/IP54
|
IP65/IP54
|
Storage Humidity (RH)
|
10%~90% non‐condensing
|
10%~90% non‐condensing
|
10%~90% non‐condensing
|
Working Humidity (RH)
|
10%~90% non‐condensing
|
10%~90% non‐condensing
|
10%~90% non‐condensing
|
Lifetime Typical Value(hrs)
|
100000
|
100000
|
100000
|
Installation Type
|
Cabinet installation type
|
Fix
|
Fix
|
Fix
|
