L10DF/L16DF

Share with:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on email

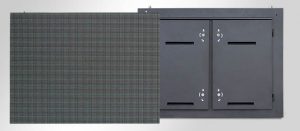

Simple and beautiful

Traditional steel cabinet with DIP lights design, it looks simple, neat, beauty and sturdy, which can operate in outdoor environment for long time without failures. Simple structure, LF series can be widely used in various occasions.

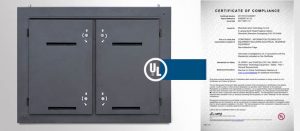

UL Certification

LDF series are UL listed and passed EMC test, they are reliable with high quality that they can be used in various applications safely.

High brightness

High brightness outdoor led display ensures vivid and clear images quality even in the bright sunlight and fits both day and night. High Brightness reached to 9000nits; Grey scale is reached to 16bits Excellent performance, it can show colorful pictures anywhere!

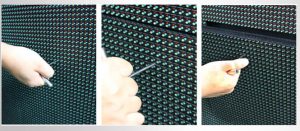

Front or rear maintenance

The cabinet support front and rear maintenance. Modularization design is convenient for installation and maintenance, which can fit customer demands better.

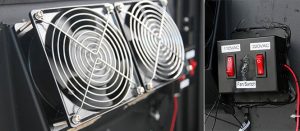

High IP rating & Perfect heat dissipation

IP65/54, this series will cater to most outdoor applications due to its outstanding water resistance and safety performance. There are 4 pcs fans, which can improve the heat dissipation efficiently to ensure good and stable play performance. The voltage can switch between 110V and 220V.

Specification

Parameter

L10DF

L16DF

Physical

Parameter

Pixel Configuration

DIP

DIP

Pixel Pitch (mm)

10

16

Pixel matrix per panel

96×96

62×62

Pixel density(pixels/sq.m.)

10000

3906

Cabinet Dimensions (LxWxH)/(mm)

960x960x120

960x960x148

Module Dimensions (LxWxH)/(mm)

320×320

320×320

Panel material

Aluminum

Aluminum

Cabinet weight (kg/panel)

37.5

37.5

Module weight (kg/panel)

1.85

1.85

Electronic

Parameter

Color Grayscale (Bit)

14

14

Gray Scale per Color (level)

16384

16384

Refresh Rate(Hz)

2160

2160

Driving Type

1/4

1/1

Signal Transmission Distance (m)

CAT5 cable:<100 m;
Single mode fiber:<10 km

CAT5 cable:<100 m;
Single mode fiber:<10 km

Optical

Parameter

Brightness(nit)

9000

9000

Optimal Horizontal Viewing Angle(°)

110

110

Optimal Vertical Viewing Angle(°)

60

60

Electrical

Parameter

AC Input Voltage(V)

AC: 100V~240V

AC: 100V~240V

AC Input Frequency(Hz)

50

50

AC Input Power Maximum Value(W/m²)

460

627

AC Input Power Typical Value(W/m²)

154

209

Circumstance

Parameter

Storage Temperature(℃)

‐40 ‐60

‐40 ‐60

Working Temperature (℃)

-20 -50

-20 -50

IP rating (Front/Rear)

IP65/IP54

IP65/IP54

Storage Humidity (RH)

10%~90% non‐condensing

10%~90% non‐condensing

Working Humidity (RH)

10%~90% non‐condensing

10%~90% non‐condensing

Lifetime Typical Value(hrs)

≥100000

≥100000

Installation Type

Cabinet installation type

Fix

Fix
