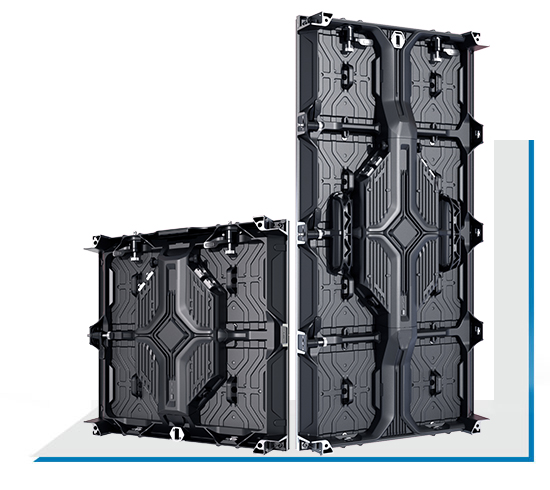

Light and slim
The cabinet is slim, it’s only 81mm in thickness which can achieve better wall mounted effect The cabinet is light, it’s only 7.5kg in weight which is labor saving.
Module upgraded
250×250mm large module design,which is easy to maintain; PCB is in direct contact with the cabinet body for better flatness.
Upgraded cabinet
The room of control box is bigger, and there are many heat dissipation rubbers, which are good for heat dispassion. Dual backup of power supply and receiving card is optional.
Easy maintenance
When maintain power, receiving card and HUB from rear side that you just need to pull out the two modules nearby; second loosen the screws; then get out the receiving card, power and HUB.
Fast assembling
There are 4 locating pins which are useful for quick positioning during installation to make the work more quickly and conveniently. There are two sets fast locks on cabinet upside and downside and 3 snap-locks on left and right side which can splicing two cabinets quickly.
HDR effect
Full HDR display scheme is provided
Specification
|
Parameter |
GN1.5 PLUS |
GN1.9 PLUS |
GN2.5 PLUS |
GN2.6 PLUS |
GN2.9 PLUS |
GN3.1 PLUS |
GN3.9 PLUS |
|
|
Physical Parameter |
Pixel Configuration |
SMD1010 |
SMD1010 |
SMD2020 |
SMD2020 |
SMD2020 |
SMD2020 |
SMD2020 |
|
Pixel Pitch （mm） |
1.5 |
1.9 |
2.5 |
2.6 |
2.9 |
3.1 |
3.9 |
|
|
Pixel matrix per panel |
320×320 |
256×256/512 |
200×200/400 |
192×192 / 384 |
168×168 / 336 |
160×160/320 |
128×128/256 |
|
|
Pixel density（pixels/sq.m.） |
409600 |
262144 |
160000 |
147456 |
112896 |
102400 |
65536 |
|
|
Cabinet Dimensions (LxWxH)/（mm） |
500X500X81 |
500X500X81 |
500X500/1000X81 |
500X500/1000X81 |
500X500/1000X81 |
500X500/1000X81 |
500X500/1000X81 |
|
|
Module Dimensions (LxWxH)/（mm） |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |
|
|
Panel material |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
|
|
Cabinet weight (kg/panel) |
7.5 |
7.5/12.5 |
7.5 / 12.5 |
7.5 / 12.5 |
7.5 / 12.5 |
7.5 / 12.5 |
7.5 / 12.5 |
|
|
Module weight (kg/panel) |
0.57 |
0.57 |
0.57 |
0.57 |
0.57 |
0.57 |
0.57 |
|
|
Electronic Parameter |
Color Grayscale (Bit) |
14bit |
14bit |
14bit |
14bit |
14bit |
14bit |
14bit |
|
Gray Scale per Color （level) |
16384 |
16384 |
16384 |
16384 |
16384 |
16384 |
16384 |
|
|
Refresh Rate（Hz） |
3840 |
3360 |
3840 |
2160 |
3840 |
3840 |
3840 |
|
|
Driving Type |
1/32 |
1/32 |
1/25 |
1/24 |
1/21 |
1/27 |
1/16 |
|
|
Signal Transmission Distance （m） |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
CAT5 cable:＜100 m; |
|
|
Optical Parameter |
Brightness（nit） |
600 |
600 |
900 |
900 |
900 |
900 |
900 |
|
Optimal Horizontal Viewing Angle（°） |
170 |
170 |
165 |
145 |
165 |
165 |
170 |
|
|
Optimal Vertical Viewing Angle（°） |
Up 80/down 80 |
Up 75/down 75 |
Up 75/down 75 |
Up 55/down 45 |
Up 75/down 75 |
Up 75/down 75 |
Up 75/down 75 |
|
|
Electrical Parameter |
AC Input Voltage（V） |
AC: 100V~240V |
AC: 100V~240V |
AC: 100V~240V |
AC: 100V~240V |
AC: 100V~240V |
AC: 100V~240V |
AC: 100V~240V |
|
AC Input Frequency（Hz） |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
AC Input Power Maximum Value（W/m²） |
568 |
446 |
444 |
440 |
376 |
474 |
357 |
|
|
AC Input Power Typical Value（W/m²） |
190 |
149 |
148 |
147 |
125 |
158 |
120 |
|
|
Circumstance Parameter |
Storage Temperature（℃） |
‐40 ‐60 |
‐40 ‐60 |
‐40 ‐60 |
‐40 ‐60 |
-40 -60 |
‐40 ‐60 |
‐40 ‐60 |
|
Working Temperature (℃) |
0-40 |
0‐40 |
0‐40 |
0‐40 |
0- 40 |
0‐40 |
0‐40 |
|
|
IP rating (Front/Rear) |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
|
|
Storage Humidity (RH) |
10%~90% non‐condensing |
10%~90% non‐condensing |
10%~90% non‐condensing |
10%~90% non‐condensing |
10%~90% non-condensing |
10%~90% non‐condensing |
10%~90% non‐condensing |
|
|
Working Humidity (RH) |
10%~60% non-condensing |
10%~60% non‐condensing |
10%~60% non‐condensing |
10%~60% non‐condensing |
10%~60% non-condensing |
10%~60% non‐condensing |
10%~60% non‐condensing |
|
|
Lifetime Typical Value（hrs） |
100000 |
100000 |
100000 |
100000 |
100000 |
100000 |
100000 |
|
|
Installation Type |
Cabinet installation type |
Fix |
Fix |
Fix |
Fix |
Fix |
Fix |
Fix |
1.Shenzhen LAMP Technology Co.,Ltd. reserves the right to modify specifications and parameters without prior notice.
