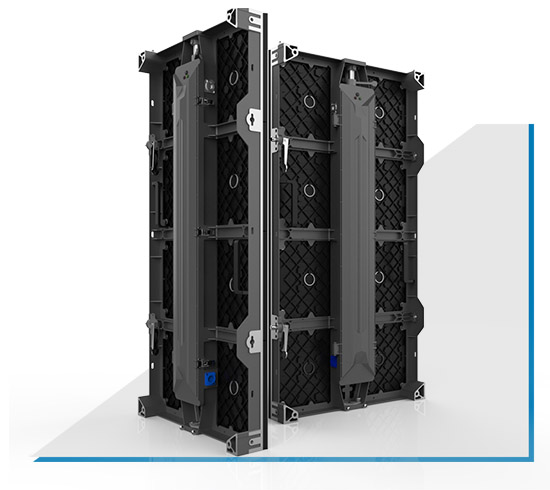

High quality die-casting aluminum cabinet
Ultra high precision CNC workmanship processing precision < 0.1mm; special seamless connection design, cabinet adjustable structure to control the gap within ±0.03 mm.Lamp’s relentless pursuit of high quality indoor and outdoor fixed and rental products.
-5°~+5°convex and concave curve
It’s easy assembling for -5°~+5°convex and concave curve, ultra-light, easy for installation and a cost effective masterpiece. User experience of operation on the screen will bring you a different feeling for displays.
Front installation & maintenance
Our product provide front access solution you can install the screen from the surface of the wall. No maintenance path needed, each module is equipped with magnet cylinder, which connect the module onto the panel structure.
Excellent performance
Multi-functional led display, amazing display effect with great noise control. The content will embrace you with vivid color and great visual impact.
Specification
Parameter |
GN2.5 |
GN2.6 |
GN3.1 |
GN3.9 |
GN4.8 |
GN5.9 |
|
Physical Parameter |
Pixel Configuration |
SMD2020 |
SMD2020 |
SMD2020 |
SMD2020 |
SMD2020 |
SMD2020 |
Pixel Pitch (mm) |
2.5 |
2.6 |
3.1 |
3.9 |
4.8 |
5.9 |
|
Pixel matrix per panel |
200×400 |
192×384 |
160X320 |
128×256 |
104×208 |
84×168 |
|
Pixel density(pixels/sq.m.) |
160000 |
147456 |
102400 |
65536 |
43264 |
28224 |
|
Cabinet Dimensions (LxW)/(mm) |
500X1000 |
500X1000 |
500X1000 |
500X1000 |
500X1000 |
500X1000 |
|
Module Dimensions (LxWxH)/(mm) |
250X500 |
250X500 |
250X500 |
250X500 |
250X500 |
250X500 |
|
Panel material |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
|
Cabinet weight (kg/panel) |
13.5 |
13.5 |
13.5 |
13.5 |
13.5 |
13.5 |
|
Module weight (kg/panel) |
0.6 |
0.6 |
0.6 |
0.6 |
0.5 |
0.5 |
|
Electronic Parameter |
Color Grayscale (Bit) |
14bit |
14bit |
14bit |
13bit |
13bit |
13bit |
Gray Scale per Color (level) |
16384 |
16384 |
16384 |
8192 |
8192 |
8192 |
|
Refresh Rate(Hz) |
2880 |
2160 |
2880 |
2160 |
2160 |
2160 |
|
Driving Type |
1/25 |
1/32 |
1/27 |
1/16 |
1/13 |
1/7 |
|
Signal Transmission Distance (m) |
CAT5 cable:<100 m; |
CAT5 cable:<100 m; |
CAT5 cable:<100 m; |
CAT5 cable:<100 m; |
CAT5 cable:<100 m; |
CAT5 cable:<100 m; |
|
Optical Parameter |
Brightness(nit) |
900 |
900 |
900 |
900 |
900 |
900 |
Optimal Horizontal Viewing Angle(°) |
160 |
150 |
170 |
150 |
160 |
160 |
|
Optimal Vertical Viewing Angle(°) |
Up 70/down 70 |
Up 80/down 80 |
Up 75/down 75 |
Up 55/down 55 |
Up 65/down 70 |
Up 65/down 70 |
|
Electrical Parameter |
AC Input Voltage(V) |
AC: 200V~240V |
AC: 100V~240V |
AC: 100V~240V |
AC: 100V~240V |
AC:100V~240V |
AC:100V~240V |
AC Input Frequency(Hz) |
50 |
50 |
50 |
50 |
50 |
50 |
|
AC Input Power Maximum Value(W/m²) |
528 |
445 |
390 |
432 |
412 |
480 |
|
AC Input Power Typical Value(W/m²) |
176 |
152 |
130 |
144 |
138 |
160 |
|
Circumstance Parameter |
Storage Temperature(℃) |
‐40 ‐60 |
‐40 ‐60 |
‐40 ‐60 |
-40 -60 |
‐40 ‐60 |
‐40 ‐60 |
Working Temperature (℃) |
0-40 |
0‐40 |
0‐40 |
0- 40 |
0‐40 |
0‐40 |
|
IP rating (Front/Rear) |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
IP40/IP20 |
|
Storage Humidity (RH) |
10%~90% non‐condensing |
10%~90% non‐condensing |
10%~90% non‐condensing |
10%~90% non-condensing |
10%~90% non‐condensing |
10%~90% non‐condensing |
|
Working Humidity (RH) |
10%~60% non-condensing |
10%~60% non‐condensing |
10%~60% non‐condensing |
10%~60% non-condensing |
10%~60% non‐condensing |
10%~60% non‐condensing |
|
Lifetime Typical Value(hrs) |
100000 |
100000 |
100000 |
100000 |
100000 |
100000 |
|
Installation Type |
Cabinet installation type |
Fix |
Fix |
Fix |
Fix |
Fix |
Fix |
