About scissor lift table:
The stationary scissor lift table is a kind of cargo lifting equipment with good lifting stability and wide application range. It is mainly used for the transportation of goods between the production line height difference; the material is on the line and the lower line; the height of the workpiece is adjusted during the assembly of the workpiece; Feeding of the material machine; lifting of components during assembly of large equipment; loading and unloading of large-scale machine tools; loading and unloading places with forklifts and other transportation vehicles for fast loading and unloading of goods. Simple hydraulic lifting platform
The fixed hydraulic scissor lift can be configured with other additional devices according to the requirements of use.
1.Specifications:
| Model | SST1001 | SST1002 | SST1003 | |
| Load capacity | kg | 1000 | 1000 | 1000 |
| The min height | mm | 205 | 205 | 240 |
| The max height | mm | 990 | 990 | 1300 |
| Lifting time | s | 20-25 | 20-25 | 30-35 |
| Voltage | v/hz | 380/50 | 380/50 | 380/50 |
| Platform size | mm | 1300X820 | 1600X1000 | 1700X850 |
| Base size | mm | 1240X640 | 1240X640 | 1580X640 |
| Packing size | mm | 1310X820X210 | 1610X1010X210 | 1710X850X210 |
| Net weight | kg | 180 | 200 | 220 |
| Model | SST2001 | SST2002 | SST4001 | SST4002 | |
| Load capacity | kg | 2000 | 2000 | 4000 | 4000 |
| Platform size | mm | 1300X850 | 1600X1000 | 1700X1200 | 2000X1200 |
| Max height | mm | 1000 | 1000 | 1050 | 1050 |
| Min height | mm | 230 | 230 | 250 | 250 |
| Lifting time | s | 20-25 | 20-25 | 30-40 | 30-40 |
| Voltage | v/hz | 380/50 | 380/50 | 380/50 | 380/50 |
| Base size | mm | 1300X640 | 1220X785 | 1220X785 | 1600X785 |
| Packing size | mm | 1310X860X240 | 1610X1010X240 | 1710X1210X250 | 2010X1210X250 |
| Net weight | kg | 260 | 290 | 410 | 450 |
2.Details:
Motor pumping station, lifting goods quickly, smooth and powerful
High-quality steel, large shear bearing, strong stability
Sealed oil pump, import sealing parts to effectively protect hydraulic leaks
Hand control,High security
Limit switch, when the platform reaches the highest position, the platform is locked ,so that can garantee the platform stability.

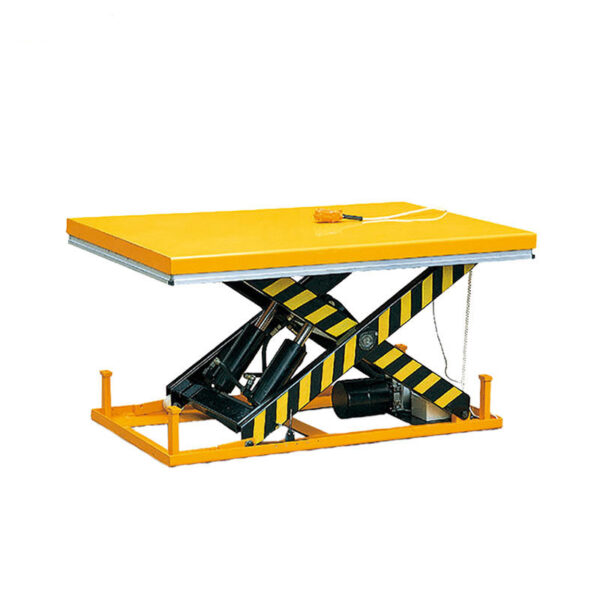

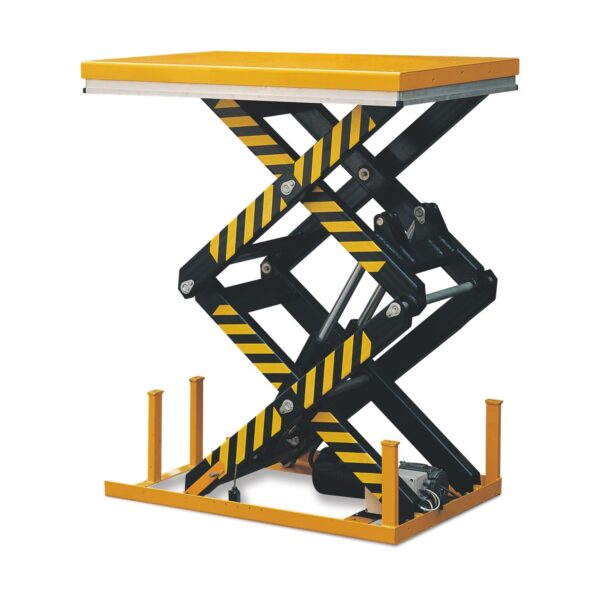

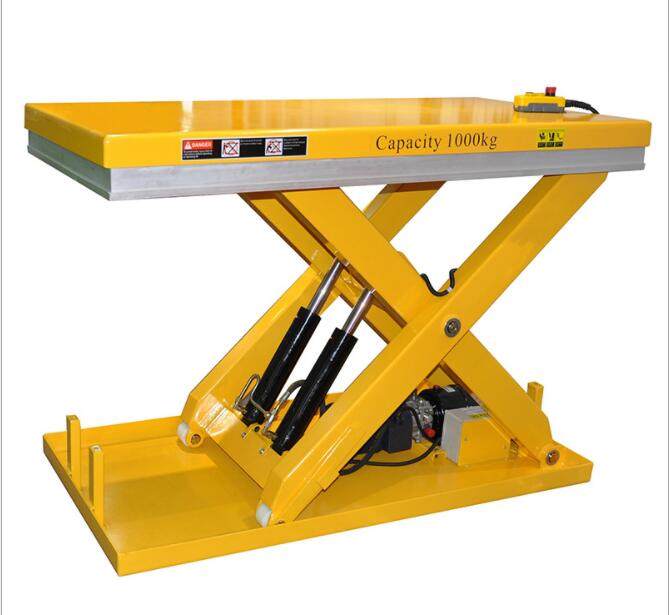

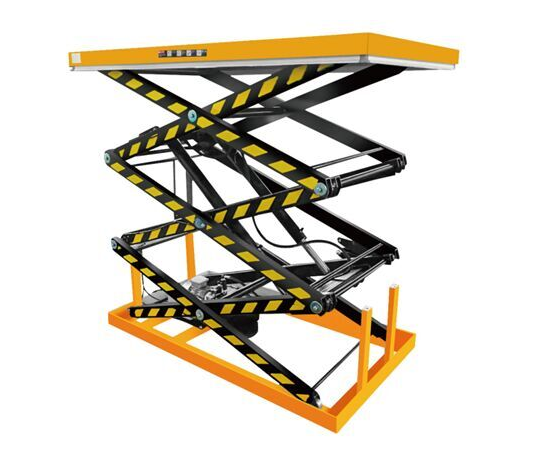

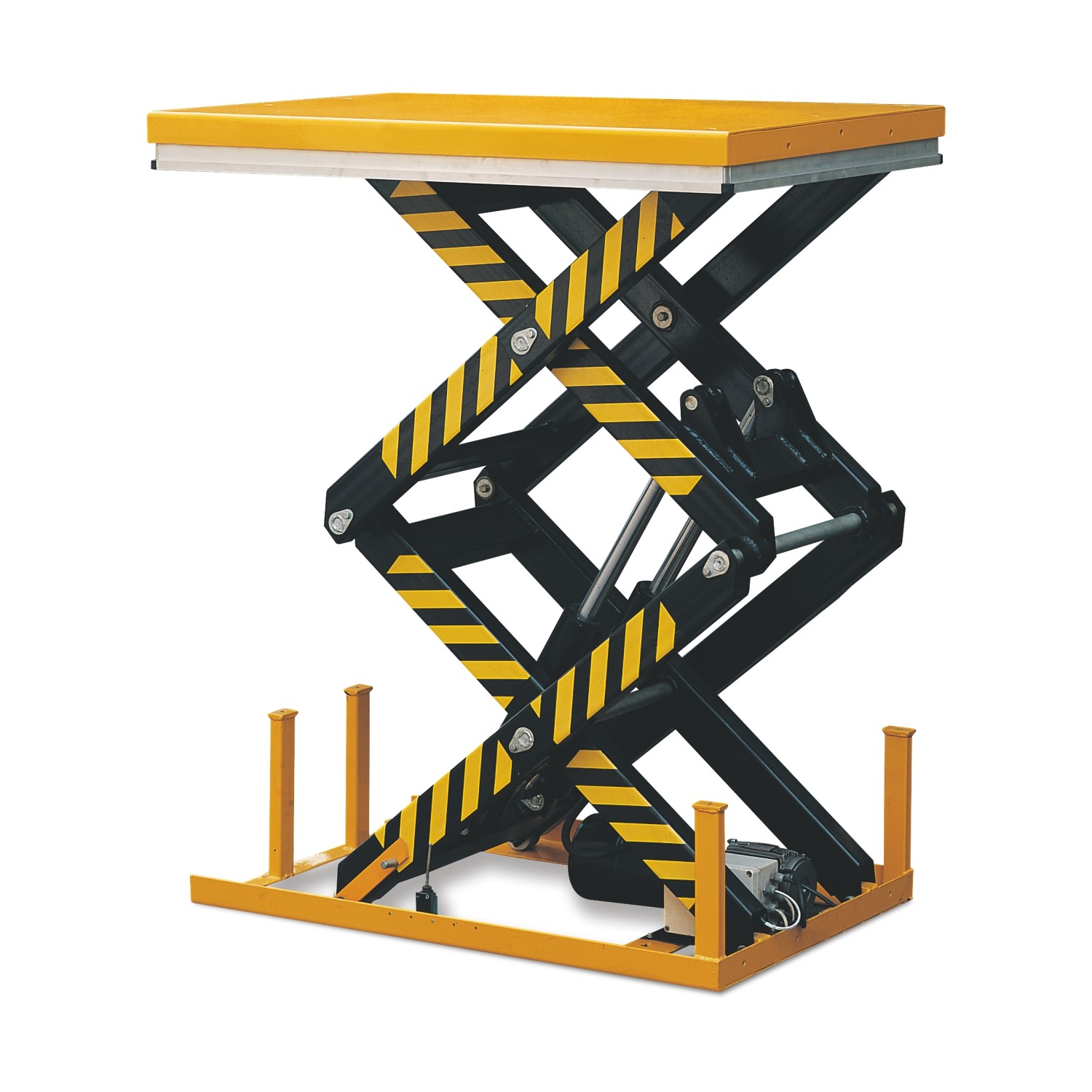

3.Product show:
