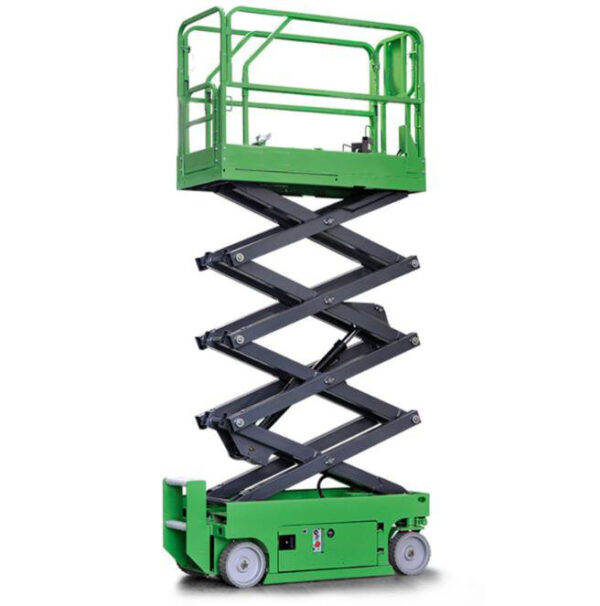

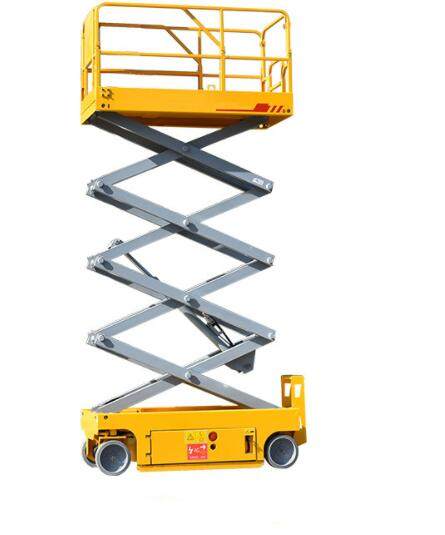

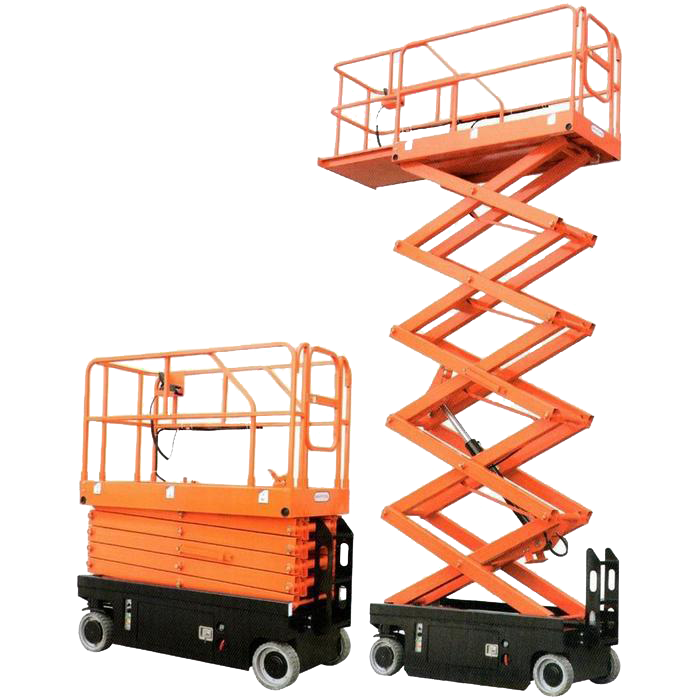

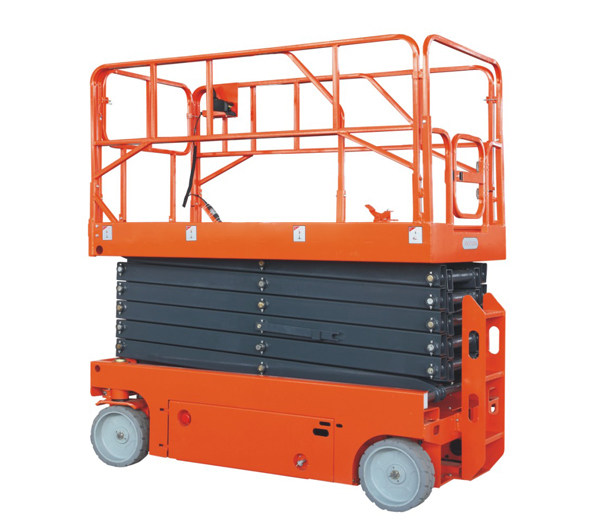

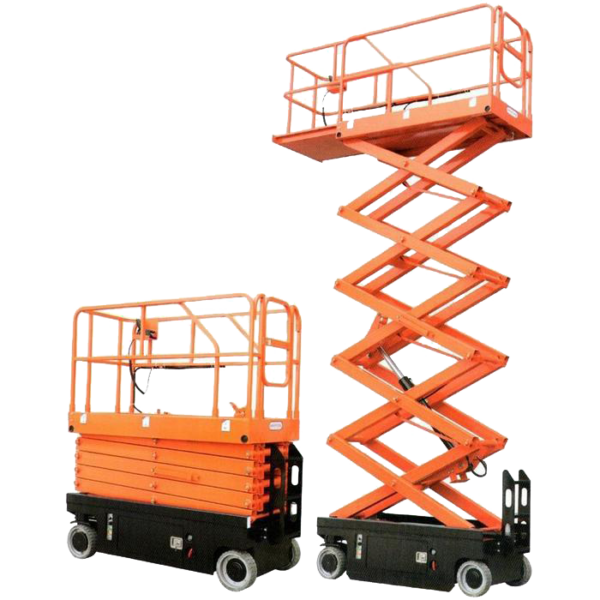

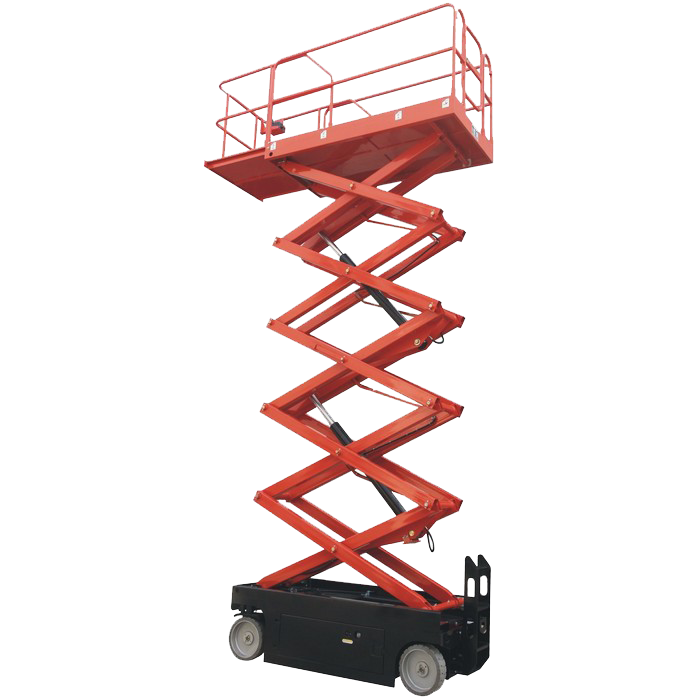

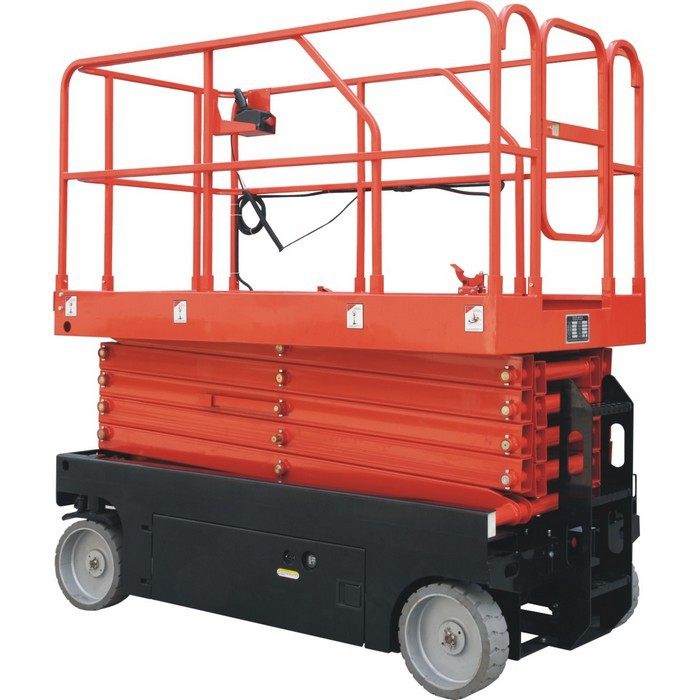

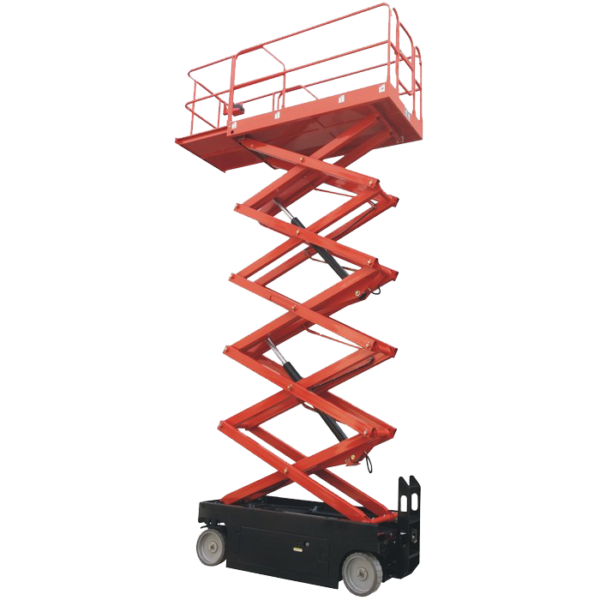

About Self propelled scissor lift:
The self-propelled scissor type aerial work platform has a self-propelling function, and can be freely walked, retracted, and turned under the working state without external power supply and power traction. It is flexible to move, easy to operate, and free to move up and down. It can be completed by one person. Durable, reliable and easy to maintain. Free turning device, emergency descent system. Working height from 4 meters to 12 meters, imported configuration, high power, high-skilled operating system. Stable performance, smooth walking and lifting, sensitive direction, simple and convenient control, giving you the convenience in the factory area and indoor high-altitude operation and high-floor delivery. It reduces your precious time and improves your work efficiency. A good helper for efficient and safe production!
Specifications:
| Model Number | HS06 | HS08 | HS10 | HS12 | |
| Max platform height | mm | 6000 | 8000 | 10000 | 11800 |
| Max working height | mm | 8000 | 10000 | 12000 | 13800 |
| Load capacity | kg | 300 | 300 | 300 | 300 |
| Maximum height when closing (guardrail stands up) | mm | 2150 | 2275 | 2400 | 2525 |
| Maximum height when closing (guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 |
| Total length | mm | 2400 | 2400 | 2400 | 2400 |
| Total width | mm | 1150 | 1150 | 1150 | 1150 |
| Platform size | mm | 2270×1150 | 2270×1150 | 2270×1150 | 2270×1150 |
| Extended platform Length | mm | 900 | 900 | 900 | 900 |
| Minimum ground clearance (closed state) | mm | 110 | 110 | 110 | 110 |
| Minimum ground clearance (lifting state) | mm | 20 | 20 | 20 | 20 |
| Wheelbase | mm | 1850 | 1850 | 1850 | 1850 |
| Minimum turning radius (inner wheel) | mm | 0 | 0 | 0 | 0 |
| Minimum turning radius (outer wheel) | mm | 2100 | 2100 | 2100 | 2100 |
| Machine moving speed (closed state) | km/h | 3.5 | 3.5 | 3.5 | 3.5 |
| Machine moving speed (lifting state) | km/h | 0.8 | 0.8 | 0.8 | 0.8 |
| Rise/fall speed | sec | 70/80 | 70/80 | 70/80 | 70/80 |
| Battery | V/Ah | 4×6/210 | 4×6/210 | 4×6/210 | 4×6/210 |
| charger | V/A | 24/25 | 24/25 | 24/25 | 24/25 |
| Maximum climbing ability | % | 20 | 20 | 20 | 20 |
| Working maximum allowable angle | / | 2-3° | 2-3° | 2-3° | 2-3° |
| Driven | / | Double front wheel | |||
| Hydraulic brake wheel | / | Double rear wheel | |||
| Wheel size Solid tireless tire | / | Φ381×127 | Φ381×127 | Φ381×127 | Φ381×127 |
| extended platform load capacity | kg | 113 | 113 | 113 | 100 |
| Net weight | kg | 1900 | 2080 | 2490 | 2760 |
Details:
Countertop control handle for easy operation
High quality tubing, no leakage
Imported American batteries, battery durable
High-strength scissors, low failure rate
