Sports Stadium LED Screen

Sports stadium LED displays are used on indoor to give the score and time or relay broadcasting the composition.

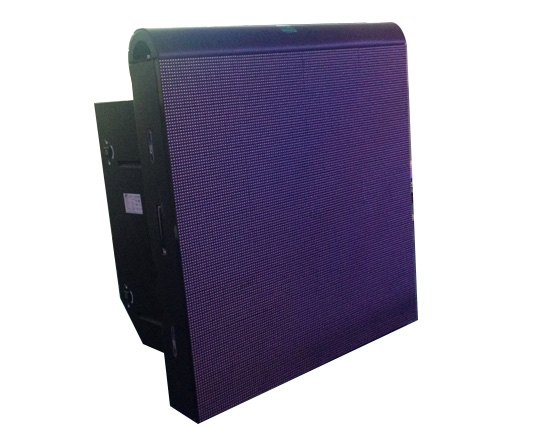

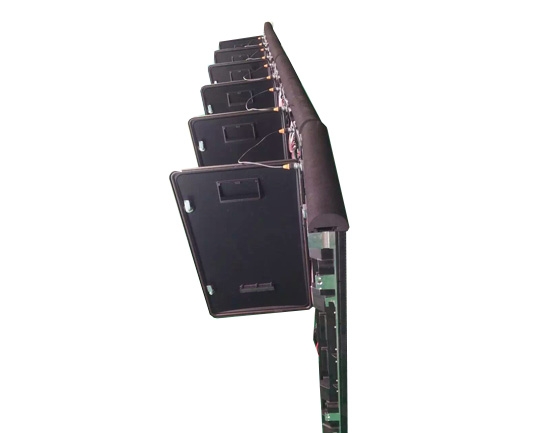

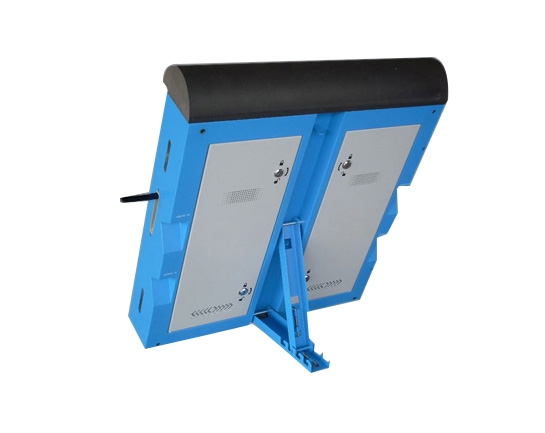

Because there are many lights in the stadium, the brightness must above 1000nits. It needn’t too higher viewing distance. But high refresh frequency is absolutely necessary . I t needn’t too higher protection grade, but it must have soft mask and soft top cover to protect the display.
Due to the Sports stadium LED displays maybe used in compsition, it is necessary have higher resolution so that can check out the score at any time. And there must have many audiences, so good viewing angle is also very necessary. The viewing angle should be wider than common used.

http://cri-led.cn/uploads/image/20160815/1471277685.jpg

http://cri-led.cn/uploads/image/20160815/1471270119.jpg

http://cri-led.cn/uploads/image/20160815/1471275178.jpg

http://cri-led.cn/uploads/image/20160815/1471270117.jpg

http://cri-led.cn/uploads/image/20160815/1471278185.jpg

Item P10 P16
Module LED type Full color Full color
Pixel configuration 1R1G1B 1R1G1B
Module size 320*160mm 256*256mm
LEDs SMD3535 SMD
Pixel density(dot/m2) 10000 3906
Pixel pitch 10 mm 16mm
Resolution 32 x 16 16 x 16
Scan mode 1/4scan Static
Driver IC MBI5124 MBI5124
Supply voltage DC 5V 4.6-5.5V
Max.Power 45W 60W
Max. current 10A 12A
 Working Temperature -30℃ – 50℃ -30℃ – 50℃
Cabinet spec Material of cabinet Iron

Iron

Color Option
Cabinet size 960*960mm 1024*1024mm
Resolution 96*96 64*64
Quantity of module 6*6 4*4
Brightness 7500 cd/㎡ 8000 cd/㎡
  Viewing angle(H) 160 degree 140 degree
  Viewing angle(V) 120 degree 120 degree
Flatness <1mm <1mm
Module clearance <1mm <1mm
Weight 50 kg 55 kg
Max.power consumption 900W/pcs 960W/pcs
     Frame rate ≥60Hz/s ≥60Hz/s
Refresh rate 1920Hz 1920Hz
Gray scale 16 bits 16bits
Signal input RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
MTBF >5000 hours >5000 hours
Life time >100000 hours >100000 hours
