Poster Led Screen

Poster Screen
Indoor series
MODEL C 2.5 C 1.9
LAMP LED Type SMD(2020) SMD(1010)
MODULE Pixel pitch 2.571mm 1.944mm
LED module size 216×288mm 216×288mm
Resolution(H×W) 84×112 111×148
LED driving method 1/28 dynamic scan 1/27 dynamic scan
CABINET LED module layout(H×W) 9×2 9×2
Resolution(H×W) 756×224 1000×296
Cabinet area 1.11m² 1.11m²
Cabinet size 1944×576×100mm 1944×576×100mm
Net. weight/m² 32kg 32kg
Ingress Protection Front IP40/Rear IP40 Front IP40/Rear IP40
Power AC 240/100±10% AC 240/100±10%
Serviceability Front service Front service
DISPLAY Max.Power consumption 600W/cabinet 750W/cabinet
Avg.Power consumption 260-300W/cabinet 345-375W/cabinet
Viewing Angle(H/V) 160°/160° 160°/160°
Brightness 1000dc/m² 1000dc/m²
Pixel density(pixel/m²) 169344 279936
Contrast ratio 3,000:1 3,000:1
Temperature/ Humidity -30°C to  45°C;10% to 90% -30°C to  45°C;10% to 90%
(Operation/Storage)
Lifetime(50% brightness) 100,000hours 100,000hours
Processing 16bit 16bit
Colors 281trillion 281trillion
Refresh rate ≥1920Hz ≥1920Hz
Frame rate 60fps 60fps
Brightness level Manually/Auto/Programmable Manually/Auto/Programmable

Poster Screen
Indoor series
MODEL C 2.5 C 1.9
LAMP LED Type SMD(2020) SMD(1010)
MODULE Pixel pitch 2.571mm 1.944mm
LED module size 216×288mm 216×288mm
Resolution(H×W) 84×112 111×148
LED driving method 1/28 dynamic scan 1/27 dynamic scan
CABINET LED module layout(H×W) 9×2 9×2
Resolution(H×W) 756×224 1000×296
Cabinet area 1.11m² 1.11m²
Cabinet size 1944×576×100mm 1944×576×100mm
Net. weight/m² 32kg 32kg
Ingress Protection Front IP40/Rear IP40 Front IP40/Rear IP40
Power AC 240/100±10% AC 240/100±10%
Serviceability Front service Front service
DISPLAY Max.Power consumption 600W/cabinet 750W/cabinet
Avg.Power consumption 260-300W/cabinet 345-375W/cabinet
Viewing Angle(H/V) 160°/160° 160°/160°
Brightness 1000dc/m² 1000dc/m²
Pixel density(pixel/m²) 169344 279936
Contrast ratio 3,000:1 3,000:1
Temperature/ Humidity -30°C to  45°C;10% to 90% -30°C to  45°C;10% to 90%
(Operation/Storage)
Lifetime(50% brightness) 100,000hours 100,000hours
Processing 16bit 16bit
Colors 281trillion 281trillion
Refresh rate ≥1920Hz ≥1920Hz
Frame rate 60fps 60fps
Brightness level Manually/Auto/Programmable Manually/Auto/Programmable

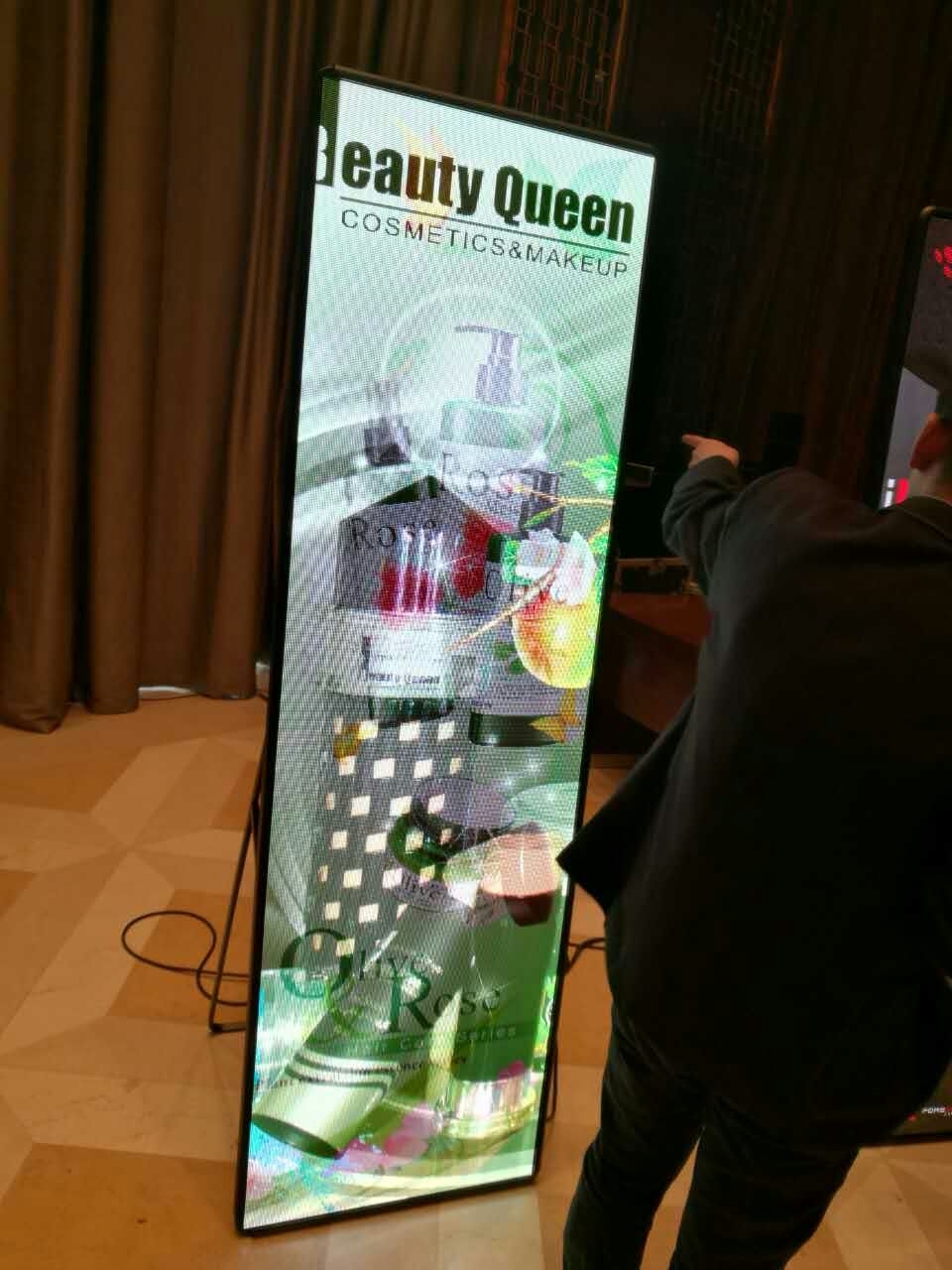

Poster Led Screen in Dubai Exhibition 2017
