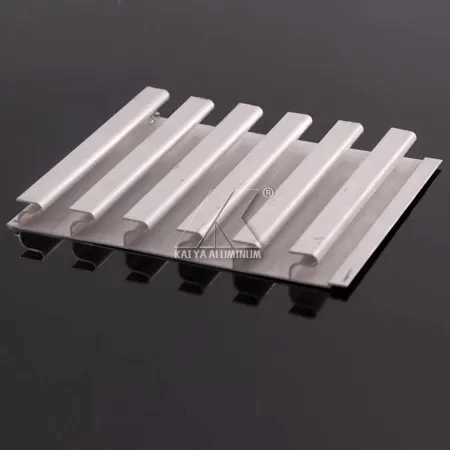

Little Deformation Furniture Aluminium Profiles Eco - Friendly With Extensibility

Product Details:

Place of Origin: CHINA
Brand Name: KAIYAMEI
Certification: ISO9000, ISO9001,ISO14000,CQC,RoHS
Model Number: KAHJ001

Payment & Shipping Terms:

Minimum Order Quantity: 500KG
Price: Negotiable
Packaging Details: protect film for each profile, shrink film / kraft paper exterior for each bundle or pack as customer request.
Delivery Time: 15-40 days
Payment Terms: T/T, Western Union
Supply Ability: 100000 tons per year

Share with:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on email
SZIE: Customize USAGE: Shop
FINISH: Mill Finish ORIGIN OF PLACE: Guangdong, China
COLOR: Green NAME: Hot Sale Profile
TEMPER: T3-T8 LENGTH: Customize
HIGH LIGHT: aluminium furniture profiles, aluminium profile for kitchen cabinets

Mill Finish Aluminum Storage Rack in Shop OEM Aluminum Extrusted Profile


Prodictopm Description

Brand Name Kaiyamei Aluminum
Material 6063-T5
Temper T3 – T8
Thickness General profiles thickness:0.8 – 5.0 mm;
Color Anodized protection thickness: 8 – 10μm

Powder coating protection thickness: 40-80μm

MOQ 500KG
Diameter Customize
Length 5.8-6.0m, or as cuostomer request
Color 3D Wood Grain as your requests
Finish Mill finish , anodize, powder coating , elecrophoresis ,PVDF coating, all kinds of high simulation wood grain processing , etc.
Deep Processing Cutting , punching .
Certification ISO 9000 ; ISO 9001 ; ISO 14000 ; CE

; RoHS

Markets We Sold Australia , Germany , North America , Africa and European countries and Southeast Asian area



Advantages of the extrusion process
The extrusion process provides virtually unlimited opportunities for aluminium product shapes. Costs are cut by designing fewer components, which reduce fabrication and simplify assembly.
These features and benefits are unmatched by other materials and processes
Complex integral shapes Cost effective Low tooling costs
Design flexibility Versatility in joining Machinable
Rapid prototyping Short lead times Wide range of finishes



Alloy 6063(%) 6061(%) 6082(%)
Silicon Si 0.20~0.60 0.40~0.80 0.7~1.2
Iron Fe 0.35 0.70 0.5
Copper Cu 0.10 0.15~0.40 0.1
Manganese Mn 0.10 0.15 0.4~0.8
Manganese Mg 0.45~0.90 0.18~1.2 0.6~0.8
Chromium Cr 0.10 0.04~0.35 0.25
Zine Zn 0.10 0.25 0.2
Titanium Ti 0.10 0.15 0.1
Others(each) 0.05 0.05 0.05
Others 0.15 0.15 0.15
Aluminum Remainder Remainder Remainder





Alloy



State

Tensile strength test Hardness test
Tensile strength Rm M pa Non-proportional Stretching Stress Stretching rate Pattern thickness HV HW
Rp0.2Mpa (A50mm%) mm HV HW
6063 T4 130 75 14
T5 160 110 8 0.8 58 8
T6 205 180 8


6061

T4 184 110 16
T6 265 245 8
6082

(6351)

T4 205 110 12
T6 290 250 6
