| FINISH: | Wood Grain | SHAPE: | Square |
|---|---|---|---|
| OEM: | Yes | LENGTH: | Customize Length |
| ALLOY OR NOT: | Is Alloy | TYPE: | Wood Grain Square Tube |
| ORIGIN OF PLACE: | Guangdong, China | TEMPER: | T3-T8 |
| HIGH LIGHT: | aluminium extrusion tube, anodised aluminium tube | ||

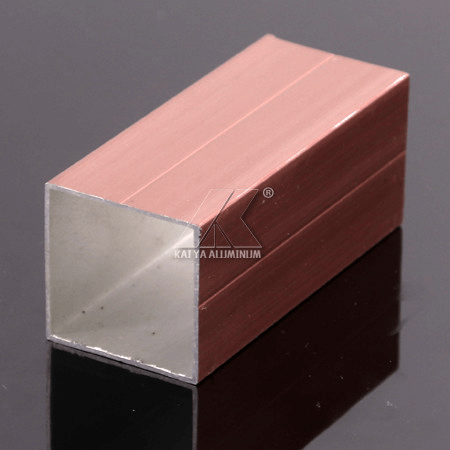

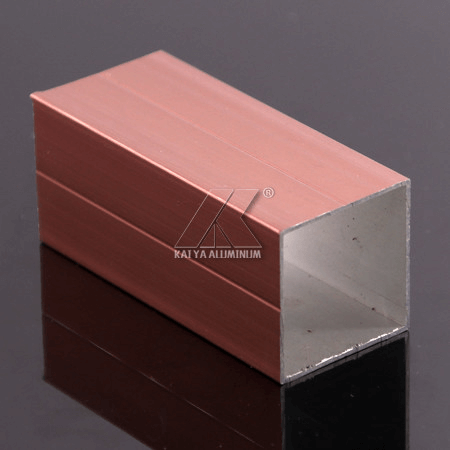

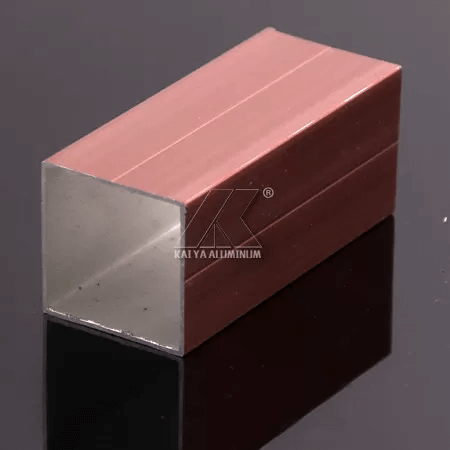

Light Wood Grain Middle Size SquareAlloy Aluminium Tube Extrusted Profiles
Product Description
| Brand Name | Kaiyamei Aluminum |
| Produt Name | Hot sale wood grain profile |
| Material | 6063 Alloy |
| Grade | 6000 Series |
| Temper | T5 |
| MOQ | 500 KG |
| Thickness | General profiles thickness:0.8 – 5.0 mm; as coutomer’s request |
| Color Thickness | Anodized protection thickness: 8 – 10μm
Powder coating protection thickness: 40-120μm |
| Diameter | 25mm, or as customer request |
| Length | 5.8-6.0m, or as cuostomer request |
| Color | 3D wood grain, as your requests |
| Finish | Mill finish , anodize, powder coating , elecrophoresis ,PVDF coating, all kinds of high simulation wood grain processing , etc. |
| Sample delivery | 2 weeks |
| Delivery | A month, the time depends on quantity and size |
| Markets | Australia , Germany , North America , Africa and European countries and Southeast Asian area |
Genearl Profile
| Alloy | 6063(%) | 6061(%) | 6082(%) |
| Silicon Si | 0.20~0.60 | 0.40~0.80 | 0.7~1.2 |
| Iron Fe | 0.35 | 0.70 | 0.5 |
| Copper Cu | 0.10 | 0.15~0.40 | 0.1 |
| Manganese Mn | 0.10 | 0.15 | 0.4~0.8 |
| Manganese Mg | 0.45~0.90 | 0.18~1.2 | 0.6~0.8 |
| Chromium Cr | 0.10 | 0.04~0.35 | 0.25 |
| Zine Zn | 0.10 | 0.25 | 0.2 |
| Titanium Ti | 0.10 | 0.15 | 0.1 |
| Others(each) | 0.05 | 0.05 | 0.05 |
| Others | 0.15 | 0.15 | 0.15 |
| Aluminum | Remainder | Remainder | Remainder |
Electrophoretic coating surface treatment
|
Class |
Film thickness um | ||
| Local thickness of anodize oxide film um | paint film local film thickness um | complex film local film thickness um | |
| A | ≥9 | ≥912 | ≥21 |
| B | ≥9 | ≥7 | ≥16 |
| Note: Electrophoretic paint profiles are supplied at B level, and other grades can be supplied as required by customers. | |||
Aluminum profile surface treatment
| Class | Min-av erg film thickness | Min-part film thickness |
| AA10 | 10 | 8 |
| AA15 | 15 | 12 |
| AA20 | 20 | 16 |
| AA25 | 25 | 20 |
