PRODUCT DESCRIPTION

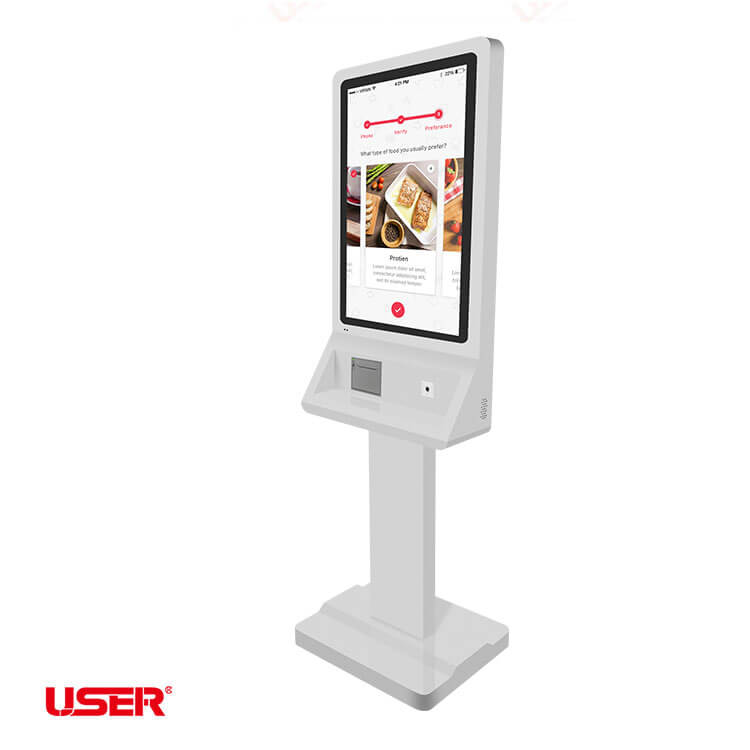

What is User interactive Self-ordering kiosk?

Interactive kiosk is any computer-like device deployed in a public venue to give people self-service access to products and services. These kiosks are usually placed in airports, restaurants, libraries, retail stores and many other public places. Although kiosks are like computers, they provide only a few specific tasks such as food ordering, product search, ticket reservation and etc. While Interactive are designed and optimized for remote control and management.

Interactive kiosks were first developed in 1970s.In fact the very first ones didn’t have the same quality as today. By time passage their structure has experienced noticeable differences. They moved from original mouse and keyboard to innovative touchscreen interface. Even in many kinds of kiosk high security fingerprint or face recognition is provided for authentication.

User Company provides interactive kiosk in three categories separately:

1- Self-ordering kiosk: This type of kiosk is specifically for picking an item among various products or services displayed on the screen. Probably you have seen them mostly in restaurants, subway stations and etc.

Interactive self ordering kioskInteractive self ordering kiosk

2- K-type kiosks: This type of interactive kiosks have been quite popular among for a while. These are available in various series and configuration.

k-type kioskk-type kioskk-type kiosk

3- Interactive whiteboardAs it’s obvious by its name this type of device is quite suitable to be used for small presentation is limited areas such as small seminars or classrooms.

Interactive whiteboardInteractive whiteboardInteractive whiteboard

Here we explore some of the features Self-ordering kiosk:

High-quality LCD Screen: User provides the device with a high-quality screen which utilizes explosion-proof glass. To –explore the details, the touchable screen is anti-violent, scratch-resistant, dust-proof and waterproof that helps you maintain in better. Besides, Industrial high-performance LCD screen ensures high image clarity, high brightness and stability of use. It can also be upgrade from 1080P to 2K or 4K

Infrared & Capacitive Touch System: Infrared radiation (IR), or infrared light, is a type of radiant energy that’s invisible to human eyes but that we can feel as heat. This radiation is commonly used to distinguish difference among human and other objects. The innovative touch screen equipped in this device also uses Infrared radiation (IR) to make capable only for finger touch and will no act to any other object.

Operating system (OS): User Company kiosks come with customized operating system will put your hands to choose your preferred OS among WindowsAndroidLinux or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.. In this way, you will supply pleasant user experience for your customers based on their interest.

Multiple Inputs: Powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB.

Multiple Configuration: You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .You can have minimum 512Mb storage to 16GB.Moreover we let you to choose your favorite OS between Android and Windows.

24/7 usage: As one the important features of interactive kiosk is to be able to work non-stop for long hours and days. User Company interactive kiosks are built for 24/7 commercial use of uninterrupted work with the stable performance.

Landscape-&-Portrait: All the K-type kiosks can be purchased in landscape and portrait screen according to your requirements.

Kiosk body: The covering shell of kiosk is made up of high-strength steel, which is ultra-thin, beautiful and strong, and has excellent protection performance

Wide-viewing angle: Unlike a conventional display surface where it’s not to view the monitor at 178 degrees (side to side), User interactive kiosks let you have this wide-viewing angle keeping display brightness and contrast.

IPS commercial grade panel: IPS (In-plane switching) is a screen technology for display screens of kiosks. Firstly this was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.

Lifetime technical support: This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.

3 Years warranty: User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing. The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.

FUNCTIONS & PARAMETERS

User Interactive self-ordering kiosk

Product model US-AD*****
Screen

parameters

Size 32” Audio system Horn 2×5W(8Ω)
Back type Backlight integration Sound mode standard
Display Proportion 16:9 Output Interface PC output interface RJ45 1、USB  2
Physical resolution 1920X1080 L/R Audio output 1 RCA X2
Color depth 16.7M Power consumption Input voltage C 100~240v 50/60HZ
Viewing angle R/L/U/D 89/89/89/89 Standby power / rated power ≤3W/≤180W
Brightness 450 cd/㎡ Cabinet Material SPCC
Contrast 5000:1 Exterior color Black (default) gold silver
Response time 5ms External conditions Working temperature / humidity 0℃~50℃/20%~80%
Service time 60000 hours Storage temperature / humidity -10℃~60℃/5–95%
Screen size Power
Touch Panel Options Infrared Touch (IR Touch ) Capacitive Touch Nano Capacitive Touch
Touch Points 10 points touch 10 points touch 10 points touch
Material IR Tube G+G G+F
Response Time <8ms <3ms <5ms
Touch Times 50 million times 50 million times 50 million times
Transmittance 0.92 0.95 0.85
Touch Panel
Touch Panel Options Infrared Touch (IR Touch ) Capacitive Touch Nano Capacitive Touch
Touch Points 10 points touch 10 points touch 10 points touch
Material IR Tube G+G G+F
Response Time <8ms <3ms <5ms
Touch Times 50 million times 50 million times 50 million times
Transmittance 0.92 0.95 0.85
Control Processing Unit (CPU)
Version CPU Internal Storage Out Storage Interface System supporting
Display Version E9-B11/ E9-BNC/E6J-AV No storage USB /HDD/SSD HDMI/VGA/DVI/USB Android /Windows/Linux OS
Standalone Version Mstar V56 No storage

( 8G/16G available)

support SD card and USB Flash HDMI/USB/SD Only Standalone OS
Configuration
Configuration CPU Chip architecture Processor Maximum resolution support System Version Storage
Basic level A20 Cortex-A7 Dual-Core 1080P Android 4.1 512Mb +8G
A33 CortexTM-A7 Quad-core 1080P Android 4.4 512Mb/1Gb +8G
A64 Cortex-A53 Quad-core 1080P Android 5.1 512Mb/1Gb +8G
Middle level RK3128 Cortex-A7 Quad-Core 1080P Android 6.0 512Mb/1Gb +8G
RK3368 Coretex-A53 Octa-Core 2K/4K Android 6.0 1Gb/2Gb +8G
RK3188 Cortex A9 Quad-Core 2K Android 6.0 1Gb/2Gb +8G
Top level RK3288 Cortex-A17 Quad-Core 4K Android 6.0 2Gb +8G
RK3399 Cortex-A72 Dual-core +Quad-core 4K Android 7.1 4Gb +16G
Amlogic T960X Cortex-A53 Quad-Core 4K Android 7.1 2Gb+8G
Operating System (OS)
Operating System CPU System Version Graphics RAM Storage
Windows OS Core-i3 Win 7/ Win 10 3.7HZ/3.9HZ 4G (8G available ) 120G SSD/500G HDD
Core-i5 Win 7/ Win 10 3.2HZ/3.4HZ 4G (8G available ) 120G SSD/500G HDD
Core-i7 Win 7/ Win 10 3.4HZ/3.6HZ 4G (8G available ) 120G SSD/500G HDD
