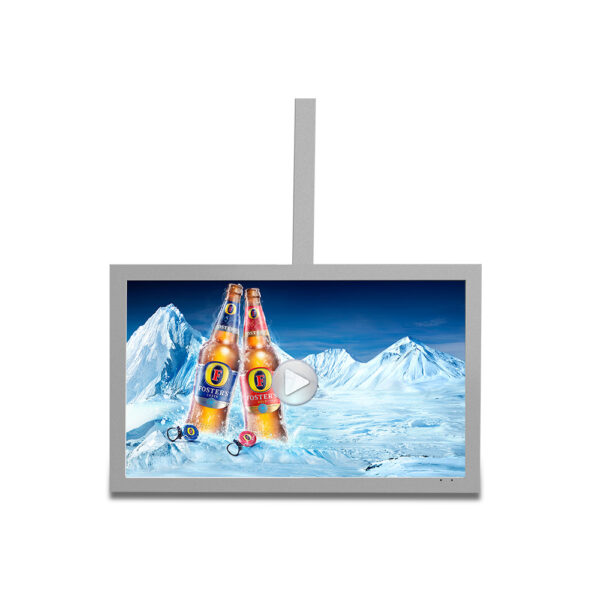

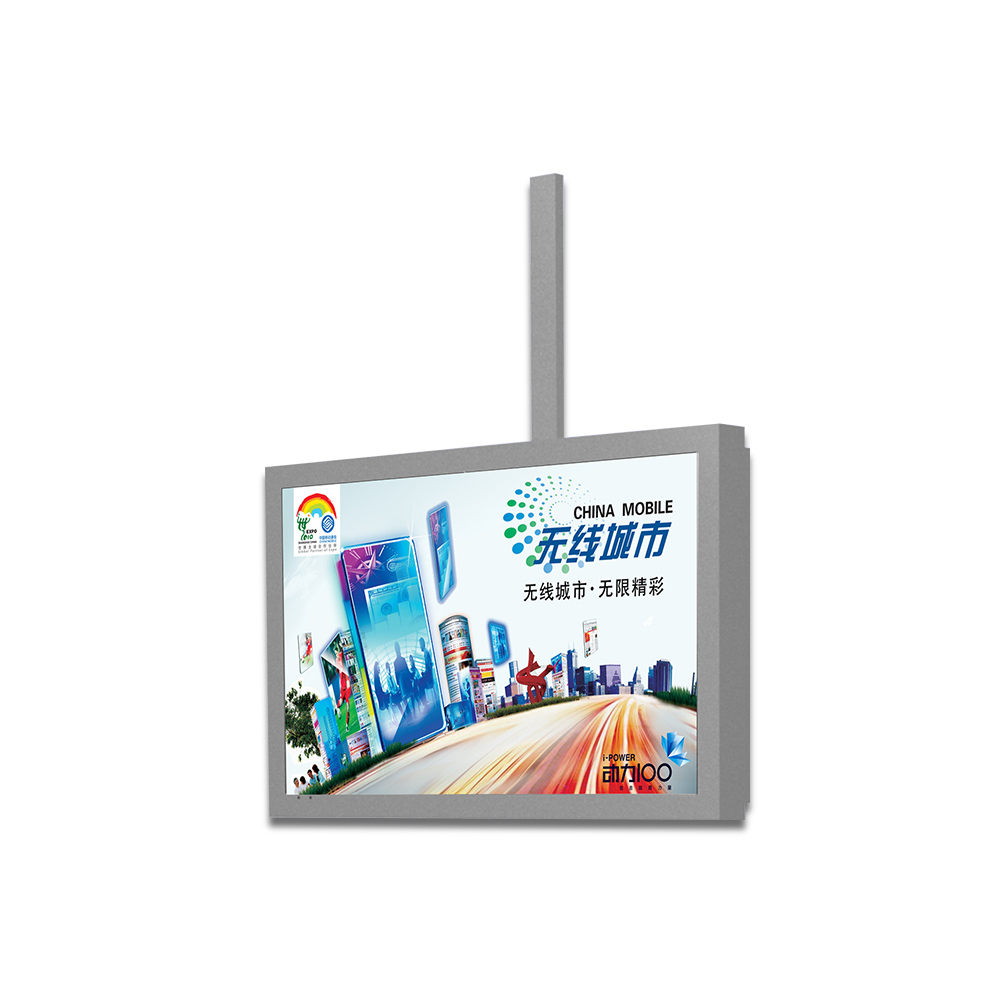

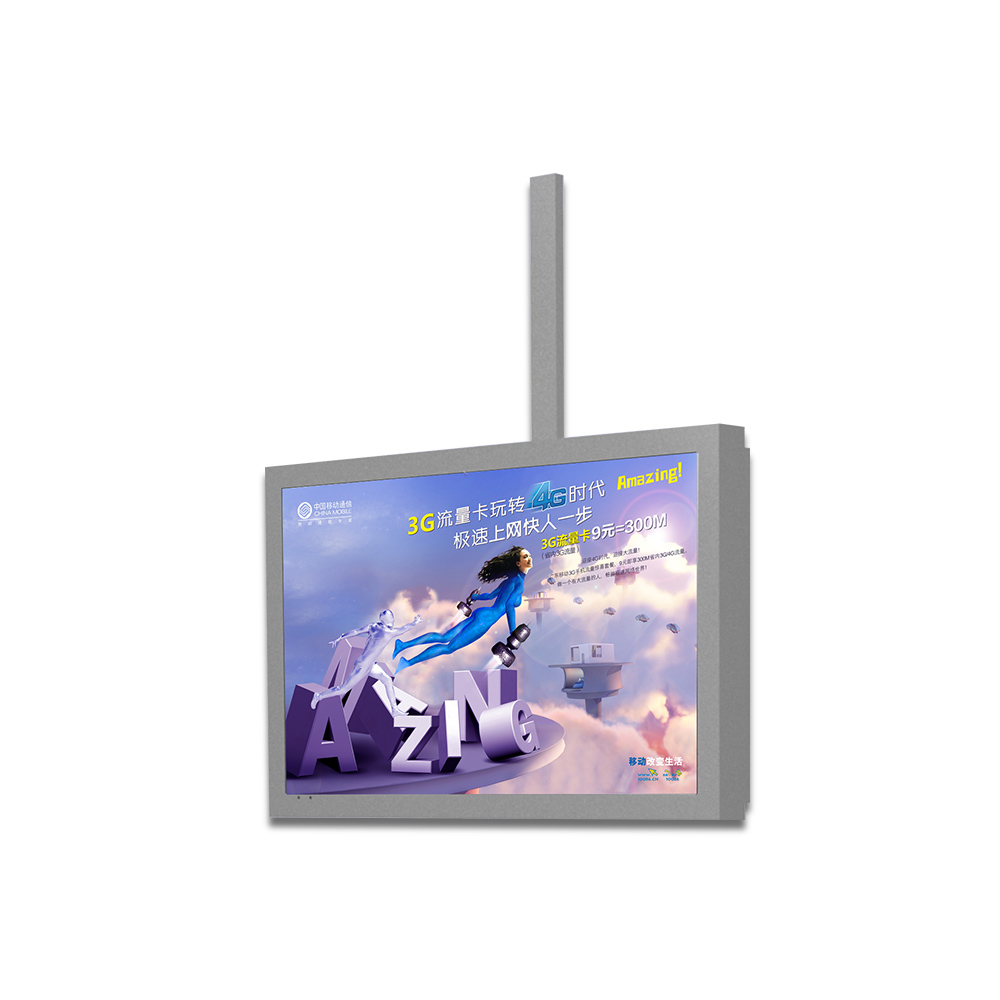

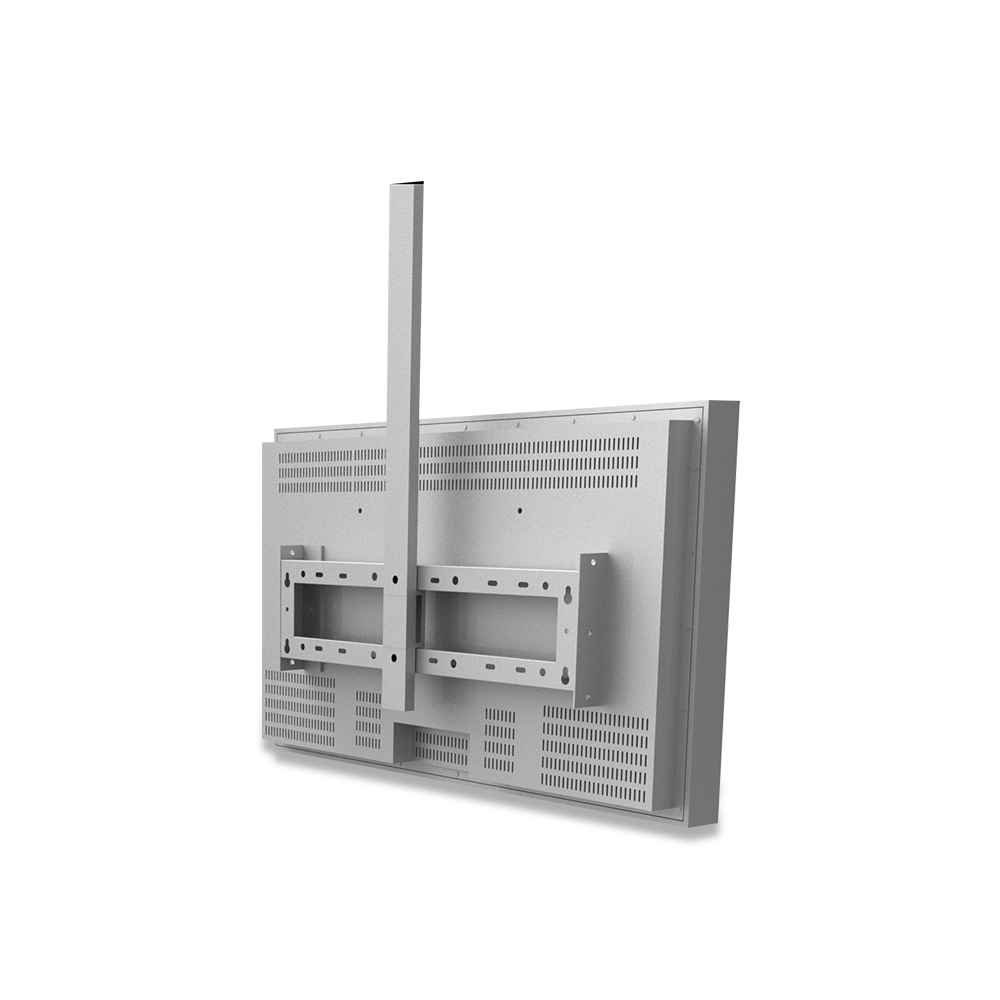

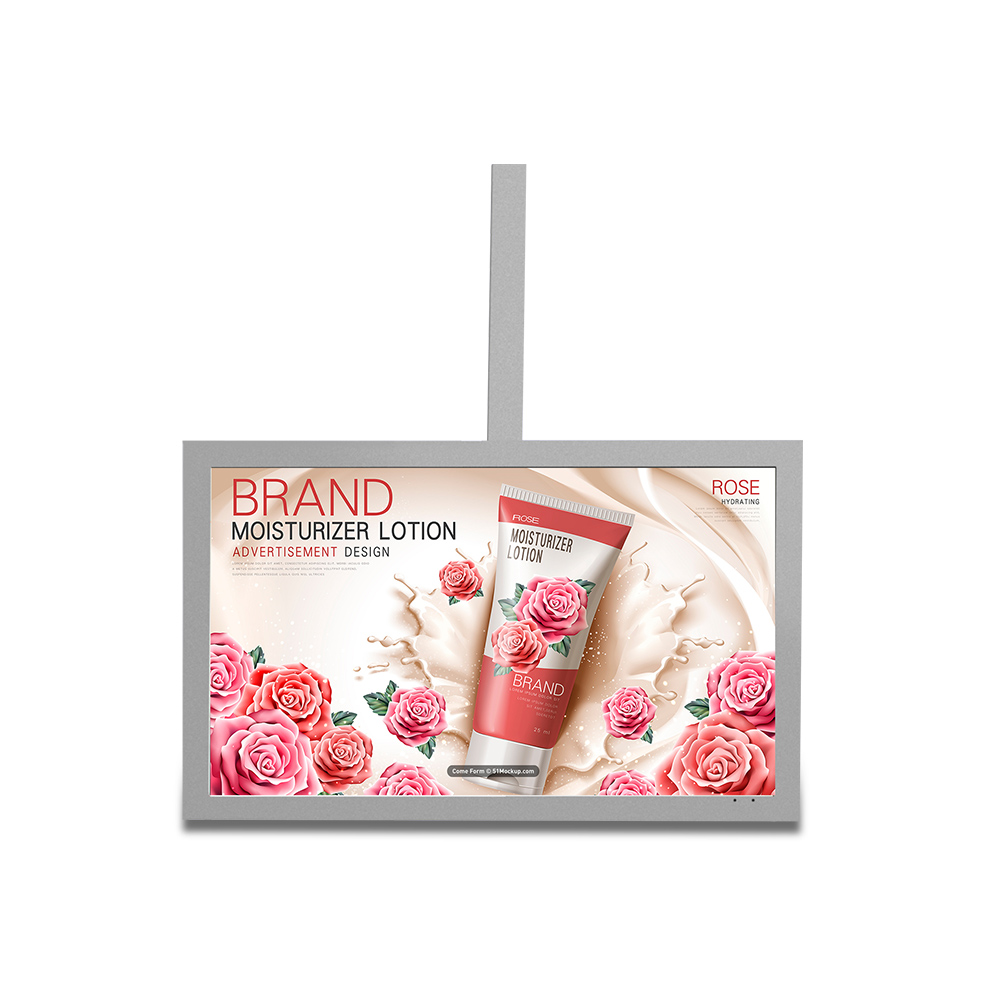

22inch roof fixing outdoor lcd advertising display

Share with:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on email

specifications:

 size options 32’’43″/49’’ /55’’/ 65’’/ 75’’/86’’100’’
Display ratio  16:9
Resolution 1920*1080 /3840*2160
Brightness 1500nits-3500nits
Contrast ratio  1000:1
View angle 178° horizontal/ 178°vertical
Main interfaces USB*1

AV-IN*1

HDMI-IN*1

Audio-IN*1

Audio-OUT*1

DC*1

Glass 6mm dual tempered laminated AR glass, anti-UV 99.99%,anti-vandal,anti-solar radiation
brightness control Automatic light-sensitive system
Temperature control system Fan-cooling system/Air conditioner options
operating temperature -40°C to +65°C
Noise ≦55dB
power supply AC 110-240V
Protection IP65
 Dust-proof Dust Seal
Anti-corrision YES
Anti theft Lock Included
OS Optional Android/Windows10
Touch screen Optional
Camera Optional
Mini PC Optional

High-light lcd panel:

1.We use 1500nits-300nits high brightness lcd panel  which is developed by Kingchong,it is sunlight visible. And with light sensor, can adjust brightness.

2.6MM Vandal AR glass.Anti-UV 99.99%,anti-vandal,anti-solar radiation.

Version:

There are 3 versions for your options.

1.Stansalone version: With HDMI input and USB.With player. Can play image/video

2.Network version:With Android or windows OS. Can use wifi.support bluetooth,3G/4G module/GPS

3.Network version with touch: It can be touch, can interactive,support google map.

Features:

Cooling system:

We have Fan cooling system and Air conditioner for your options:

1.Fan cooling system:Install some Fans inside of kiosk, can cooling the temperature inside of lcd kiosk and lcd panel. Can continute to work for 24 hours/7days.

2.Airconditioner system: Can cooling and heating the temperature inside of lcd kiosk and lcd panel, outdoor kiosk can work nomally under 40℃.

Remote control:

We can prvide software for you if you need it.You can remotely control multic lcd signage at the same time, it means you can stay at your home,but you can control all screens installed outside of your home,like street, parks .

Any more details?? do not hesitate to contact with us.

Quotation can be negotiated.
