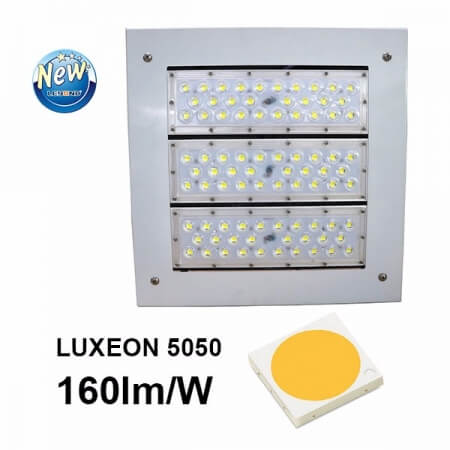

150W LED Canopy Light

Operation and Storage Condition

·Operation Ambient Temperature -40 to +50°C, Relative Humidity 20~90%

·Input Voltage 100~240V AC, 50/60Hz

·Storage Ambient Temperature -40 to +65°C, Relative Humidity 5~95%

·Mounting Height : Suitable for 6~15m height

Assembly and Installation

·Assembly-Electricity

Ø Blue : Neutral

Ø Brown : Line

Ø Yellow-Green : Ground

Package

Inner box Size: 420mm×415mm×165mm

Outer box Size: 430mm×430mm×350mm    (2 PCS LED Canopy Light)

• Using philips led chip to ensure high lumen and long life.

• The shell with the anodic oxidation treatment, strong corrosion resistance.

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.

• Perfect Light Distribution Solution：Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

• There are 24°，36°,60°, 90°, 160°  beam angle options for the Lens.

• Scientifically-designed heat dissipater with much better cooling effect.

• High luminous efficiency， Whole lamp output light effiency >120LM/W.

• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED light, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

• The CCT of Warm white、Neutral white、Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable
