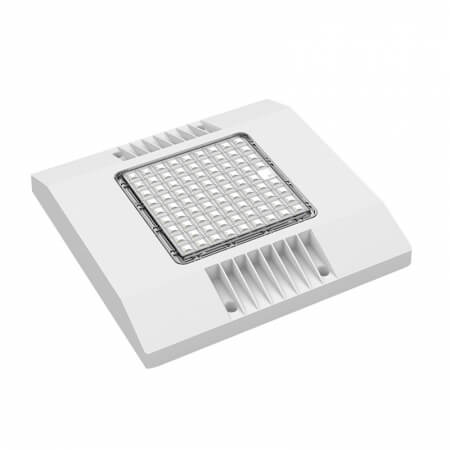

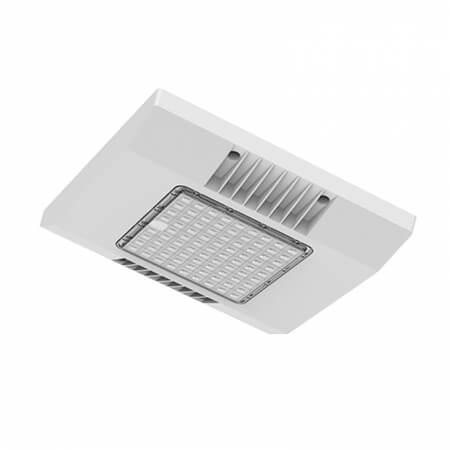

100W LED Canopy Light

100W LED Canopy Light

Color : White
Product Code : LY-YL20100XX
Brand : Leyond

Share with:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on skype
Share on email
    Par  NO

Parameter

 LY-YL20100PW   LY- YL20100WW LY- YL20100NW
Inptut voltage AC100V~240V  50/60HZ
Sysem consumption(W) 100 100 100
Luminous flux(lm) 16500 15000 15500
Chip Brand LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050
Beam Angle 85 DEG 85 DEG 85 DEG
CRI >70
Color Temperature Warm white:5000-6500K / Neutral white:2700-3200K / Pure white:4000-4500K
LED Driver

MEAN WELL  HLG-150H   / HLG-150  / ELG-150

Luminous efficiency(lm/w) >155
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 383x383x61 383x383x61 383x383x61
Net Weigh(kg) 5.8 5.8 5.8
Package Size(mm) 415*415*120 415*415*120

415*415*120

Gas Station | Office |Factory | Warehouse | Shopping Mall | Gymnasium | Plant Area | Petrol Station Conference Centers |Shopping Mall | Garage| Workshop Station

•  Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.

•  Adoption LEYOND exclusive Lens with light transmittance up to 98%.

• Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .

• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

•  There are 95°beam angle for your optional, optimized light distribution design solution.

•  High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

• The whole lamp with the powder coating is brighter, without fading and corrosion.

•  Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

•  The CCT of Warm white、Neutral white、Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

•  Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

•   Input Voltage 100~240V AC, 50/60Hz

•   Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%

•   Mounting Height : Suitable for 6~18m height
