1 set of queue machine consisting of 17 pcs of led display and 17 pcs of call terminal,
Wirelesss speaker 2 and media player 1 wireless transmitter 1
Product Outlook
Product Features
The Ticket Kiosk with Touch comes with a wide range of features that make it a top-of-the-line product.
These features include:
1. User-friendly touch screen interface
2. Multiple language support
3. Credit card and cash payment options
4. High-resolution display for clear ticket selection
5. Reliable and secure hardware and software
Specification
✔17″ brand new original panel with LCD backlight;
✔Main control service system: the core of the call system, which manages and controls each subsystem;
✔Database management: data backup and restore;Ticket collecting sub-system: provide information entry,
number allocation, printing small ticket function;
✔Call subsystem: to allocate customers to specific service Windows through business rules and procedures;
✔Display subsystem: realize the basic information of the ticket is displayed on the LED screen or
LCD screen to remind customers;
✔Voice subsystem: realize voice reminder, voice broadcast ticket number to the window or other types of room, etc.
✔Evaluation subsystem: conduct satisfaction survey on staff’s attitude and efficiency to provide
the basis for improving staff’s work efficiency;
✔Reservation subsystem: realize the priority of reservation number, save waiting time,
support wechat, network and other reservation methods;
Basic Parameter | |

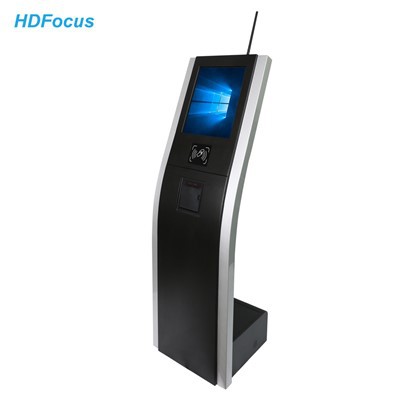

Product name | Ticket Kiosk |
Model | PD2230 |
Screen | 17 inch widescreen LCD |
Resolution | 1440*900 |
printer | EPSON; M – T532; 80mm thermal paper width; 200mm/s printing speed |
Performance
CPU | Intel® Celeron J1900 |
RAM | 2G RAM |
Storage | 64G SSD |
Main Board | Industrial motherboard |
Graphic Card | Integrated graphics card |
Network Port | 10/100M/1000M adaptive port |
Windows OS | WIN7 Flagship version 32 bit |
Other
The input voltage | AC 220V 50Hz |
Signal output | 433 MHZ. 20dBm; 100 mw ∽ 3 w; Transfer radius 150 m to 300 m |
Weight | 46kg |
Size | 1500×450×460mm |
Working Temperature | 0- 40 ℃ |
The input voltage | AC 220V 50Hz |
color | White or Black |
Media Player
Basic Parameter
Product name | Media player |
Model | J1800 |
power | DC12V |
size | 197*197*36mm |
Performance
CPU | Intel® Celeron J1800 |
RAM | 2G RAM |
Storage | 64G SSD(can expand) |
Main Board | Industrial motherboard |
Graphic Card | Integrated graphics card |
Network Port | 10/100M/1000M adaptive port |
Windows OS | WIN7/win8/win10/linux |
Call Terminal
Wireless Speaker
Wireless Transmitter
Advantages
The TicketKioskwithTouch offers multiple advantages to customers:
1. Convenient and easy-to-use interface
2. Faster transaction process, eliminating the need for long lines and wait times
3. The kiosk can be installed in different locations, increasing accessibility for customers
4. User-friendly interface that reduces the need for customer support staff
5. Provides a secure and reliable platform for ticket purchases
Suitable for
The Ticket Kiosk with Touch is suitable for various types of events, including music concerts,
sports tournaments, and movie theaters. It is also ideal for different venues, including shopping malls,
airports, and transportation hubs.
In conclusion, the Ticket Kiosk with Touch is a game-changing product that makes it easy and convenient
for customers to purchase tickets, reducing wait times and increasing overall customer satisfaction.
Its advanced features, advantages, and suitability for different events and venues make it an excellent
addition to any ticket-selling business or event organization.
