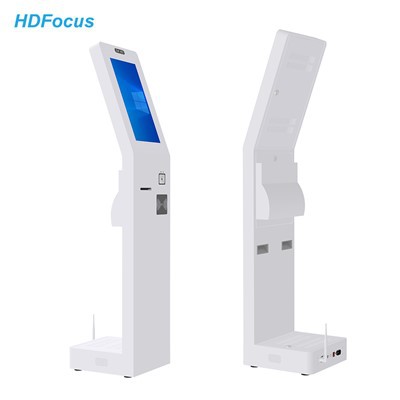

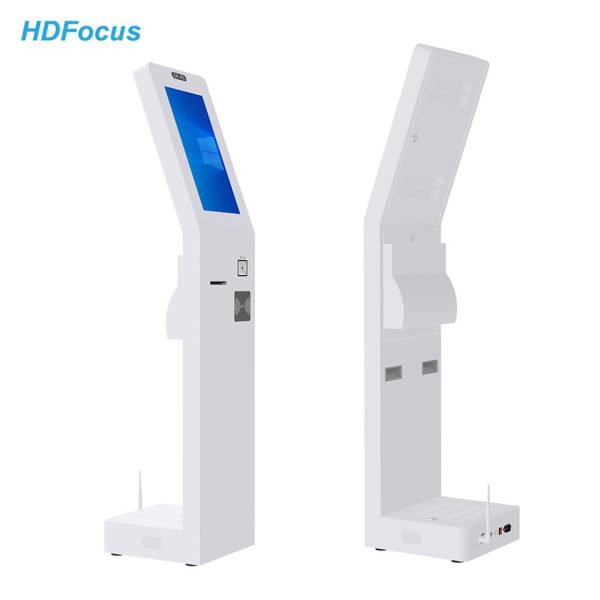

Self Ordering Floor Standing All-in-one Kiosk

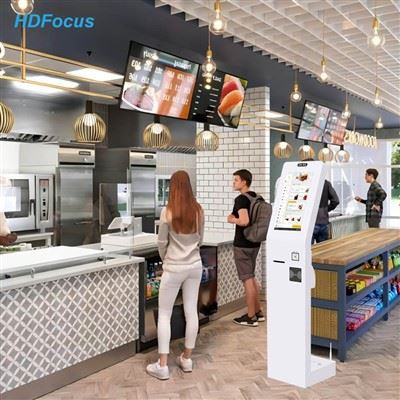

Introducing the HDFocus Self Ordering Floor Standing All-in-one Kiosk, available in three sizes: 18.5 inch, 21.5 inch, and 27 inch. Our kiosk is designed for self-service, making checkout easier and more efficient. Ideal for retail stores, healthcare facilities, restaurants, hospitality venues, and corporate environments.

Product Details

One of the standout features of our kiosk is the 1080P high-definition display, which provides a more vivid visual effect for users. Our kiosk also utilizes 10 point capacitive touch technology, which creates a rich human-computer interaction experience without lag.

Product Outlook

01

Main Features
◆ High end design, perfect for self-ordering and queuing application;
◆ Full HD brand new original panel;
◆ Built in sensitive 10 points capacitive touch;
◆ Built in 80mm thermal printer, 58mm thermal printer(optional);
◆ Built in sensitive QR scanner(optional);
◆ Built in 2M/5M/8M pixels camera at the top middle(optional);
◆ Built in NFC module(optional);
◆ Windows 7, 8.1 and 10 trial version or Android OS (optional);
◆ Support Ethernet, WIFI network, and can customize 3/4G function;
◆ Industrial level design, support 24/7 working;
◆ CE, RoHS, TELEC and PSE certified
◆ ISO9001 and ISO14000 certified;
02
Display
Display Screen
18.5″ TFT-LCD
21.5″ TFT-LCD
27″ TFT-LCD
Panel Backlight
LED Backlight
LED BacklightLED Backlight
Display Ratio
16:9
16:916:9
Color
16.7M colors
16.7M colors16.7M colors
Display area
409*230mm
477*268mm
598*336mm
Resolution
1920*1080
1920*10801920*1080
Brightness
350cd/m2
350cd/m2350cd/m2
Contrast
≥ 1000:1
≥ 1000:1≥ 1000:1
View Angle
89° left and right, up and down
89° left and right, up and down89° left and right, up and down
Screen Response
Time
10/10(Tr/Td) ms
10/10(Tr/Td) ms
7/5(Tr/Td) ms
OS
Android OS 11.0 and above
Android OS 11.0 and above
Android OS 11.0 and above

Our self-ordering payment kiosk is perfect for restaurant systems integrators, as it can be easily customized to suit specific requirements. With the ability to install third-party self-service applications, our kiosk is versatile and can be tailored to meet any business need.

Customizable
Printer:
Type
Thermal printer 58mm/80mm
Print width
576 dots
Resolution
203DPI
Print Speed
150mm/s(max)
Paper Width
79.5 ± 0.5 mm
Paper Thickness
60~120um
Print Baud Rate
9600,19200,38400,115200
Life
1 million times



QR Scanner:
Sensor
CMOS
Resolution
640*480
Communicate Port
TTL232, RS232, USB(HID,CDC) available (need
choose one of them, standard is USB port)
Format
2D, 1D
Accuracy
5 mil
Lighting
White LED
View Angle
Horizontal: 68°, Portrait: 51°



NFC:
Support Card
MIFARE One ( M1 ), S50 , S70 , NTAG2 the X- the
X- series, Fudan F08 , the I – COD E-the X- and
other types of label; the same time, also supports
second-generation ID card, the city a cartoon,
bank identification card
Supporting Agreement
ISO15693 , ISO14443-A , ISO14443-B , ISO 18092
Wave Special Rate
115200 bps
Reading Distance
20mm~60mm (depending on the tag and antenna)
Interface
USBUART TTL



Camera
Sensor Type
CMOS
Pixel
2M/5M/8M pixels (optional)
Resolution
1920*1080
Field Angle
95°
Connect
USB 2.0



Our self-service kiosk is the perfect solution for businesses looking to streamline checkout and increase turnover. Whether you’re looking to improve customer experiences or free up staff to focus on more important tasks, the HDFocus Self Ordering Floor Standing All-in-one Kiosk gets the job done.

03



Touch
Touch Type
Capacitive Touch
Points
10 points
Touch Recognition
> 1.5mm(Finger, touch pen opaque objects)
Scanning Accuracy
4096*4096
Scanning Rate
200Hz
Response Time
Less than 5ms
Communication
USB2.0
Life Time
Over 80,000,000 touches



05
Others
Format
PAL, NTSC
Speaker
10W*2
Freestand Racker
Basement*1
Voltage
DC12V/AC100-240V 50/60Hz
Power
≤ 80W
Product Net
Dimension
1516.5*360*350mm
Gross Weight
25KG

04

Dimension
06
07
In conclusion, HDFocus offers a high-quality self-ordering payment kiosk that is designed for modern businesses. With a sleek design, high-definition display, and customizable options, our kiosk is the perfect addition to any business looking to improve efficiency, productivity, and customer satisfaction.
