P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels
| Place of Origin | China |
| Brand Name | TBC |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | E4 |
Product Details
Pixel: 4mm
LED Type: SMD
Cabinet Size: 960x960mm
Viewing Angle: 160°/160°
Brightness: 6000-7500 Nits
Ingress Rate: IP65
High Light: led digital billboards, led billboard advertising
Product Description
4K HD Outdoor P4mm Led Media Video Wall for High End Restaurant and Hotels
Application:
4K HD Outdoor P4mm Led Media Video Wall are the most frequent used outdoor led video wall product in the high end restaurant, hotels and stores, annual sales over 20,000 sqm. High definition, high clarify and contrast ratio making it the perfect choice for high profile outdoor advertising.
Features and Advantages:
1. The SMD (3-in-1) LED package provides wider viewing angles and extremely close viewing distances.
2. Advanced video processing produces crystal-clear, detailed images with smooth motion reproductions.
3.High brightness,waterproof IP65, dust-proof, UV-proof, noise-free, endure high-temperature, corrosion resisting. Work stable in 365 days 24 hours at any weather.
4.Low power consumption, environmental protection and energy saving.
5.Image feeds delivered in both standard and high-definition formats.
6.Full-depth image calibration in the factory and in the field provides for a uniform display picture.
7.Integrates seamlessly with a variety of other video products.
2. Advanced video processing produces crystal-clear, detailed images with smooth motion reproductions.
3.High brightness,waterproof IP65, dust-proof, UV-proof, noise-free, endure high-temperature, corrosion resisting. Work stable in 365 days 24 hours at any weather.
4.Low power consumption, environmental protection and energy saving.
5.Image feeds delivered in both standard and high-definition formats.
6.Full-depth image calibration in the factory and in the field provides for a uniform display picture.
7.Integrates seamlessly with a variety of other video products.
Parameters
| Brightness | nits | 5500 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle – Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle – Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 61 | ||
| Cabinet width | mm | 1024 | ||
| Cabinet height | mm | 1024 | ||
| Cabinet depth | mm | 150 | ||
| Cabinet area | sq. m. | 1.05 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP54 | ||
| Operating temperature range | deg. C | – 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 4 | ||
| Pixel matrix per cabinet | 256×256 | |||
| Pixels per cabinet | 65536 | |||
| Lines per meter | 250 | |||
| Pixels per sq. meter | 62500 | |||
| LEDs per sq. meter | 62500 | |||
| Recommended minimum viewing distance | m | 4 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 970/330 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||

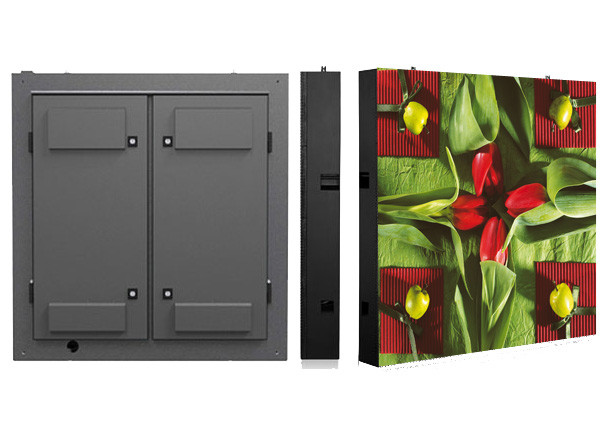

Pictures:
