1)Resolution HD 720P
2)6mm lens
3)Support Onvif, POE
4)Support P2P (Plug to play)
5)Night vision 30M
6) 1 year Warranty
7) With CE,FCC, RoHS certificates

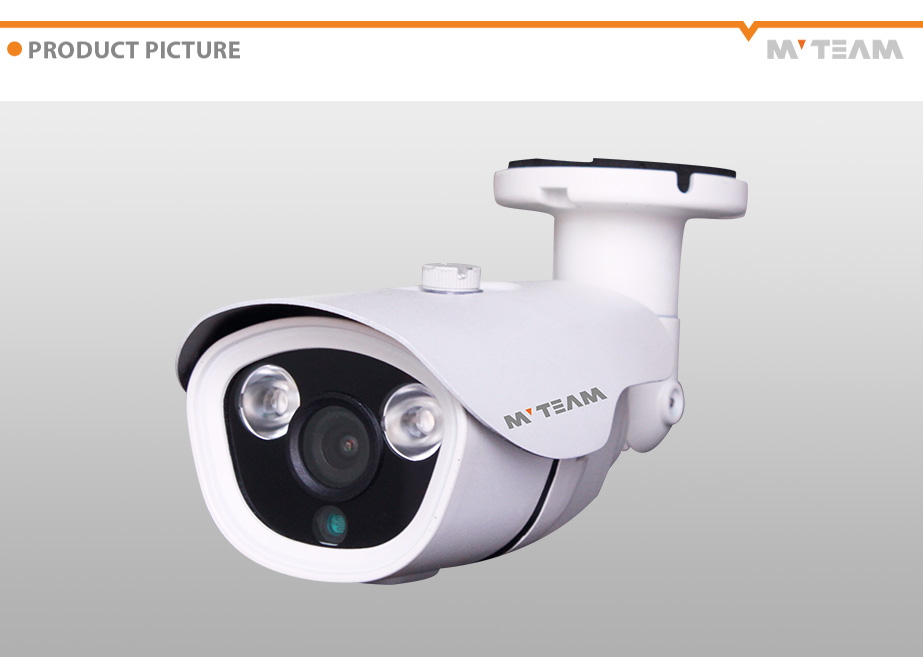

| Model | MVT-M1420 | |
| Sensor type | Hi3518E+OV9712,1/3″ CMOS sensor | |
| Compress standard | H.264 Main profile,MPEG4,MJPEG | |
| Main Stream | H.264 | |
| Shutter speed | 1/50(1/60) ~ 1/100,000 s | |
| Video compression | 32Kbps~16Mbps | |
| Lens | 3M Pixels 6mm Lens | |
| Lens Interface type | (M12) | |
| Day and night switch system | IR-CUT | |
| Audio Compression | ADPCM | |
| Minimum illumination | 0.05Lux @Color,0.01Lux B/W | |
| Image setting | Saturation,brightness,contrast ratio can be adjusted by CMS and IE browser | |
| Intelligent alarm | Motion detecting, video loss,network cable disconnection, and IP address conflict | |
| Memory Function | Network storage | |
| Network Protocol | P2P,RTP,RTSP,TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP | |
| General function | Flash-prevention, double stream, heartbeat, password protection | |
| Communication interface | 1ch RJ45,10M/100M ethernet ports adaptively | |
| LED | 2pcs of 3rd generation led array | |
| IR distance | 30m | |
| IP Grade | – | |
