| ORIGIN OF PLACE: | Guangdong,China | TEMPER: | T5 |
|---|---|---|---|
| HARDNESS: | 2200pa | SURFACE TREATMENT: | Mill Finish |
| USAGE: | Heatsink | OEM: | Yes |
| CERTIFICATE: | ISO9000, ISO9001,ISO14000,CQC,RoHS | SIZE: | Customize Size |
| HIGH LIGHT: | large diameter aluminum extrusions, extruded aluminium profiles | ||

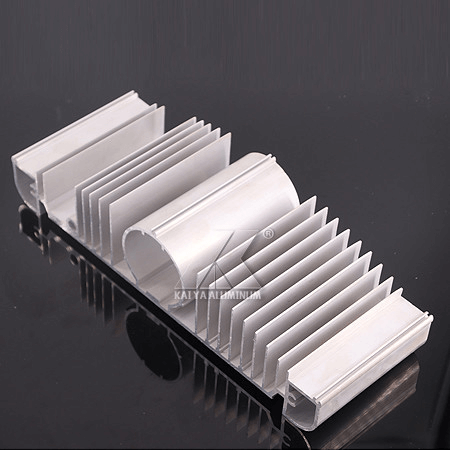

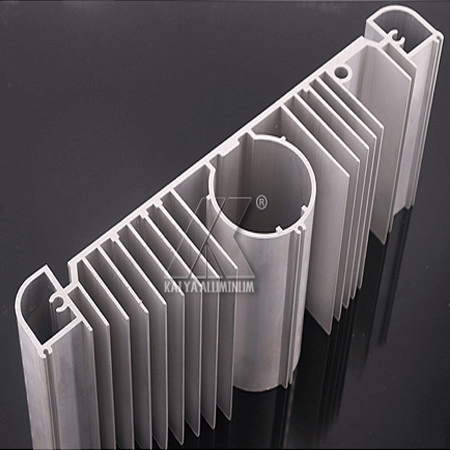

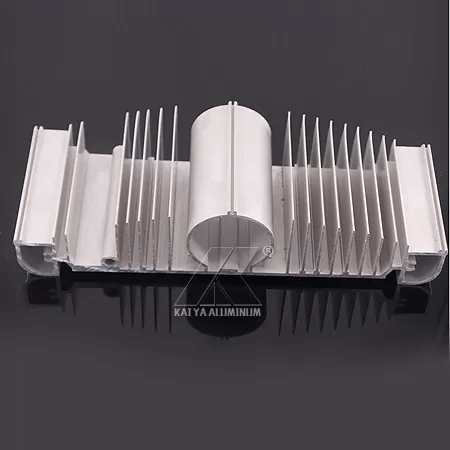

Mill Finish Big Size Heatsink Aluminum Profile 6063-T5 OEM Extrusted Profile
Prodictopm Description
(1) Complex integral shapes
(2) Cost effective
(3) Low tooling costs
(4) Design flexibility
(5) Versatility in joining
(6) Machinable
(7) Rapid prototyping
(8) Short delivery
(9) Wide range of finishes
(10) Plenty of patterns and colors for your choice.
(11) Strict control for surface finish, very little scratch.
(12) Accurate mold as well as accurate size.
(13) Standard alloy composition
(14) Both ends of the profiles are very plain and with no burr.
Mechanical Properties of Sections under Room Temperature
|
Alloy |
State |
Tensile strength test | Hardness test | ||||||||
| Tensile strength Rm M pa | Non-proportional Stretching Stress | Stretching rate | Pattern thickness | HV | HW | ||||||
| Rp0.2Mpa | (A50mm%) | mm | HV | HW | |||||||
| 6063 | T4 | 130 | 75 | 14 | – | ||||||
| T5 | 160 | 110 | 8 | 0.8 | 58 | 8 | |||||
| T6 | 205 | 180 | 8 | – | |||||||
|
6061 |
T4 | 184 | 110 | 16 | – | ||||||
| T6 | 265 | 245 | 8 | – | |||||||
| 6082
(6351) |
T4 | 205 | 110 | 12 | – | ||||||
| T6 | 290 | 250 | 6 | – | |||||||
Anodized surface treatment
| Anodized surface treatment: minimum partial thickness of coating on decorative surface around 8μm – 10μm. |
