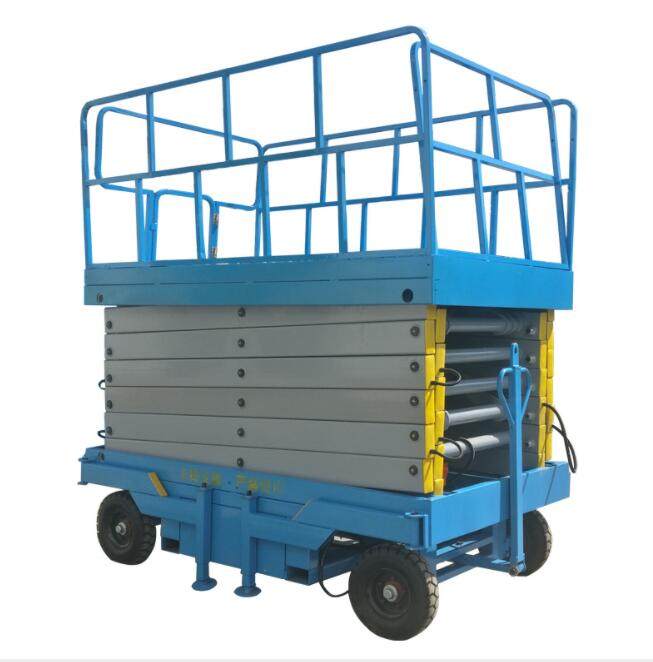

Full Electric Scissor Lift

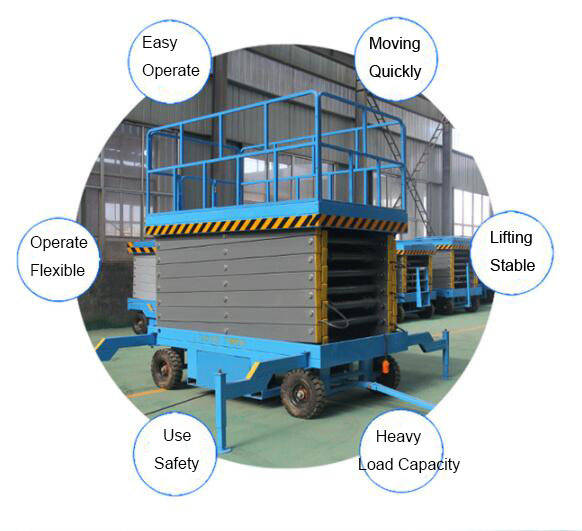

About electric scissor lift

The mobile lifting platform is a multi-purpose machine that can be used for vertical lifting indoor and outdoor. It can be widely used in stations,Mechanical installation, equipment repair, maintenance, etc. Inside and outside of docks, airports, bridges, halls, and workshops. This machine has the advantages of simple operation, beautiful appearance, convenient movement, stable lifting, high work efficiency, etc., and is welcomed by users.

Specifications

Model	Max. platform Height (m)	Load capacity	Table Size（mm)	Overall size(mm)	N.W.(kg)
Model	Max. platform Height (m)	Load capacity	Table Size（mm)	Overall size(mm)	N.W.(kg)	500kg Load capacity
ESL0504	4	500	2100*830	22509501100	800
ESL0506	6	500	2100*830	22509501200	880
ESL0507	7	500	2100*830	22509501280	970
ESL0508	8	500	2100*930	225010601380	1050
ESL0509	9	500	2100*930	225010601500	1165
ESL0510	10	500	2100*1230	225013501530	1360
ESL0511	11	500	2100*1230	225013501650	1400
ESL0512	12	500	2550*1530	279616701750	2260
ESL0514	14	500	2812*1530	306717301810	2400
ESL0516	16	500	2812*1600	306718002080	3500
ESL0518	18	500	3070*1600	332118102080	3900
1000kg Load capacity
ESL1004	4	1000	2100*1200	225013501180	1250
ESL1006	6	1000	2100*1200	220013501300	1400
ESL1008	8	1000	2100*1200	220013501420	1585
ESL1010	10	1000	2100*1200	220013501530	1700
ESL1012	12	1000	2550*1530	279616701750	2560
ESL1014	14	1000	2812*1530	306717501810	2765
1500kg Load capacity
ESL1506	6	1500	2100*1530	225017501530	1780
ESL1508	8	1500	2100*1530	225017501690	2070
ESL1510	10	1500	2100*1530	225017501850	2250
ESL1512	12	1500	2550*1530	225017621850	2900
ESL1514	14	1500	2816*1600	304518521960	3400
2000kg Load capacity
ESL2006	6	2000	2100*1530	225017501530	1780
ESL2008	8	2000	2100*1530	225017501690	2070
ESL2010	10	2000	2100*1530	225017501850	2250
ESL2012	12	2000	2550*1600	279618521954	3200
ESL2014	14	2000	2816*1600	306718522230	3900
