| MATERIAL: | 6063, 6061 | GRADE: | 6000.7000 Series |
|---|---|---|---|
| FINISH: | Anodized | LENGTH: | 5.8-6.0m ,customize |
| OEM: | Yes | USAGE: | Windows |
| ALLOY OR NOT: | Is Alloy | CERTIFICATION: | ISO9000, ISO9001 |
| ORIGIN OF PLACE: | Guangdong, China | TEMPER: | T5 |
| HIGH LIGHT: | aluminium extrusion tube,anodised aluminium tube | ||

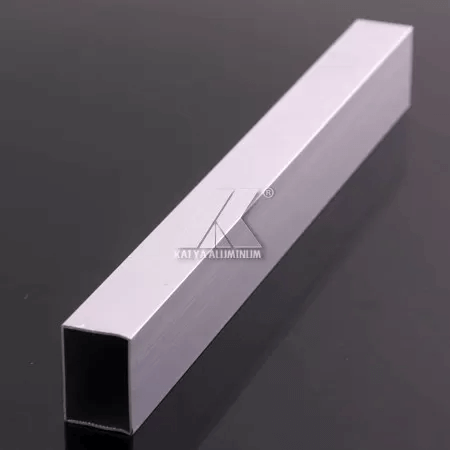

Anodized 6000 Series 13x25mm Square Tube Alloy Aluminum Extrusion Profile
Product Description
1. Brand name: Kaiyamei Aluminum
2. Material: 6063
3.Temper: T3-T8
4.Thickness: General profile 0.8mm – 5.0 mm
5. Color: Bronze, silver, Gold, Black, Champagne or as your request
6. Finish: Anodize, Powder coating, Wooden grain, elecrophoresis, PVDF coating and so on,
7. Shape: Square , flat , round , hollow , oval , triangle , U – profiles , L – profiles , T – profiles, H – profiles , customized avaliable
8. Deep Processing: Cutting , punching , drilling , tapping , milling , bending , welding etc.
9. Manufacture Technological Process: Aluminum ingot► Melting and casting ► Homogenizing ►Extrusion►Aging ► Powder coating ►Pouring rubber for heat insulation ► Acceptance test► Packing ► Warehouse ►Delivery
10. Markets: Australia , Germany , North America , Africa and European countries and area
11. Packing: Protect film for each profile, shrink film / kraft paper exterior for each bundle or pack as customer request.
| Advantages of the extrusion process | ||
| The extrusion process provides virtually unlimited opportunities for aluminium product shapes. Costs are cut by designing fewer components, which reduce fabrication and simplify assembly. | ||
| These features and benefits are unmatched by other materials and processes | ||
| Complex integral shapes | Cost effective | Low tooling costs |
| Design flexibility | Versatility in joining | Machinable |
| Rapid prototyping | Short lead times | Wide range of finishes |
Mechanical Properties of Sections under Room Temperature
|
Alloy |
State |
Tensile strength test | Hardness test | ||||||||
| Tensile strength Rm M pa | Non-proportional Stretching Stress | Stretching rate | Pattern thickness | HV | HW | ||||||
| Rp0.2Mpa | (A50mm%) | mm | HV | HW | |||||||
| 6063 | T4 | 130 | 75 | 14 | – | ||||||
| T5 | 160 | 110 | 8 | 0.8 | 58 | 8 | |||||
| T6 | 205 | 180 | 8 | – | |||||||
|
6061 |
T4 | 184 | 110 | 16 | – | ||||||
| T6 | 265 | 245 | 8 | – | |||||||
| 6082
(6351) |
T4 | 205 | 110 | 12 | – | ||||||
| T6 | 290 | 250 | 6 | – | |||||||
