The interactive board is perfect for training, and meeting applications, and it has become a more and more popular trend to replace the traditional projector product.
Product YouTube video show:

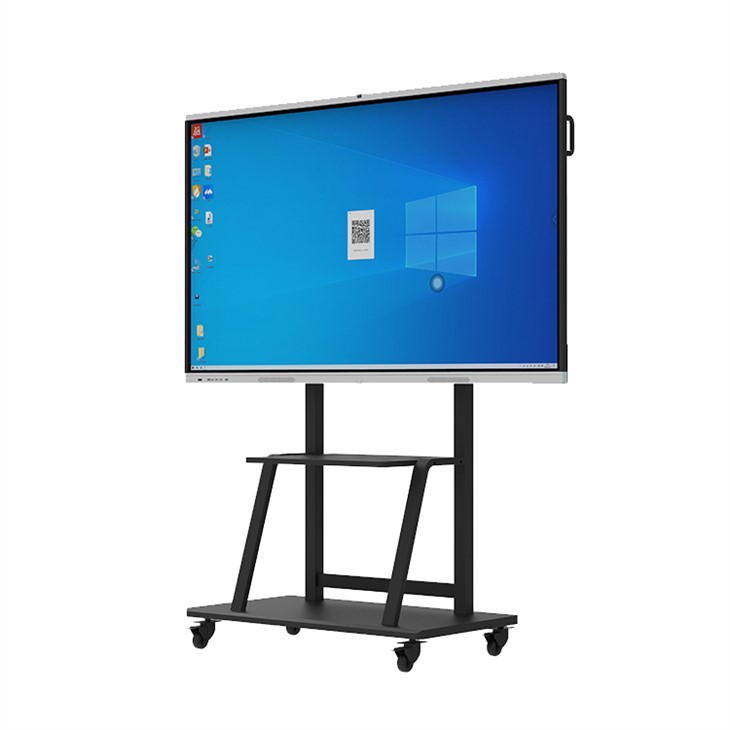

65inch Interactive Smart Whiteboard for Meeting and Teaching Room, Multi-Media 20 Points Infrared 4K Movable Touch Screen All-in-one Full HD Flat Panel
✓ MULTI-TOUCH
Support for multi-touch, up to 20 points, support more person on-screen demonstration, faster and responsive.
✓ BUILD-IN WIFI
Without laying an expensive video conferencing line network, with built-in WIFI, just an ordinary network can be realized, dual-system operation Windows and Android. Depth of integration, data sharing, HD, smooth, stable video conference.
✓ REMOTE MEETINGS
Remote mode, screen sharing synchronized, video double talk, could be displayed as a professional video conferencing equipment, remote meeting. Achieving efficient communication anytime, anywhere.
✓ WHITEBOARD WRITING
Excellent speed, smart-erase, 4kwritten whiteboard, note the more delicate and full.
✓ SMART COMMENTS
No matter documentation and external projection, all could be comments, writings and comments, automatic identification, systems according to the current state of your judgment
Product Specification
| Display | Size: 65″ |
| TFT LCD Module with DLED Backlight | |
| 1431(H)*807(V)(64.5″ diagonal) | |
| Aspect Ratio: 16:9 | |
| Native Resolution: UHD 3840*2160 (Pixels) | |
| Color: 1.07B colors (10 bit) | |
| Brightness: 350 nits (typ.) | |
| Contrast Ratio: 6500:1 (DCR) | |
| Response Time: 5ms | |
| Viewing Angles: H=178, V=178 typ. | |
| Surface Treatment: Hardness: 7H, anti-glare coating | |
| Bezel: Slim | |
| Orientation: Landscape | |
| Android OS | Processor: ARM Cortex A73*2+Cortex A53*2 1.8Hz |
| RAM: 3GB DDR4 | |
| Storage: 32GB | |
| Touch | Type/Tech: IR Recognition |
| Touch Resolution: 32767*32767 | |
| Touch Point: 20 points touch, 10 points writing | |
| I/O Interface | HDMI: 2.0*3 (3840*2160 @60Hz) |
| RGB/VGA*1 | |
| Audio: *1 (PC audio in) | |
| RS232:*1 | |
| OPS: *1 PC Slot (proprietary) | |
| HDMI: 1*(4k/60Hz) | |
| Audio: *1 (Earphone out) | |
| SPDIF: 1 | |
| RJ45: *1 | |
| Type A: USB2.0: front*2(smart port for all), Rear*2 USB3.0: front*1 | |
| Type B: *2, for touch | |
| SPEAKERS: 12W*2 (Front position speakers)+15W*1 | |
| HDMI: 3840*2160 | |
| Embedded OS: Android 8.0 | |
| Others | Voltage: 100-240V AC+/-10% Wide Range |
| Wall Mount (VESA): 500*400 | |
| Temperature: 0 to 40 | |
| Humidity: 10%-90% RH non-condensing | |
| Physical(mm):1483.2*884*91.8mm | |
| Packaging(mm):1600*1000*200mm | |
| Net(kg): 40kg | |
| Gross(kg): 48kg | |
| OPS (Can change) | Intel i3CPU, 4G RAM, 128G SSD |
| Intel i5CPU, 4G RAM, 128G SSD | |
| Intel i7CPU, 4G RAM, 128G SSD | |
| Certificate & Rack | We passed the following regulations: CE, ROHS, FCC |
| Floorstanding rolling trolley(OPTIONAL) | |
| Height Adjust: Yes | |
| We offer free WALL MOUNT BRACKET | |
| Physical(W*H*D): 1300*1600*650mm/51.2*63.0*25.6in | |
| Packaging(W*H*D): 1550*770*165mm/61*30.3*6.5in | |
| Net: 29.5kg/65.0lb | |
| Gross: 43.5kg/95.9lb | |
|
OPS Spec available can free to choose |
|||||
|
Android |
Standard Windows |
Medium Windows |
High Windows |
Top Windows |
|
|
Chip |
Intel NM70 |
||||
|
CPU |
RK3368, Magny-Cours 1.8GHz |
Dicaryon/ Quad-core |
Intel Core i3 |
Intel Core i5 |
Intel Core i7 |
|
Storage |
8GB EMMC (scalable) |
Mainboard：OPS；hard disk：120G SSD（optional 4 and 8G or lager capacity hard disk） |
Mainboard： OPS； hard disk：120G SSD （optional 4 and 8G or larger capacity hard disk） |
Mainboard：OPS；harddisk：120G SSD（optional 4 and 8G or lager capacity hard disk） |
Mainboard： OPS；harddisk：120G SSD （optional 4 and 8G or larger capacity hard disk） |
|
Video card |
Dicaryon/ Quad-core |
Intel Core i3 |
Intel HD Graphics |
Intel HD Graphics |
|
|
Interface |
USB*2；SD*1；Audio *1；LAN*1；WIFI*1 |
4 pieces USB2.0、2 piecesUSB3.0、one piece RJ45、1 piece MIC input、 1 piece HDMI output、1 piece VGA output、1 piece LINE output、WIFI 802.11b/g/n |
|||
|
OS |
Android5.1 |
Windows 7, 8, 10 trial version |
|||
Whiteboard Software:
Whiteboard software features:
üUserfriendly whiteboard software under Android OS;
üPowerful coloring, shaping, and drawing functions;
üBuilt eraser function with hand gesture erasing ;
üHalf screen function with adjusting the display height;
üAnnotation function can float on both Windows and Android;
üSupport QR sharing after annotation, so it is very easy
üQR code sharing can download the content by QR scanning directly by mobile phone;
üRecording both the audio and pictures;
üSupport 5 fingers touch to power on and off and 3 fingers touch to follow floating menus.
For more detailed software functions, pls check with our sales manager.

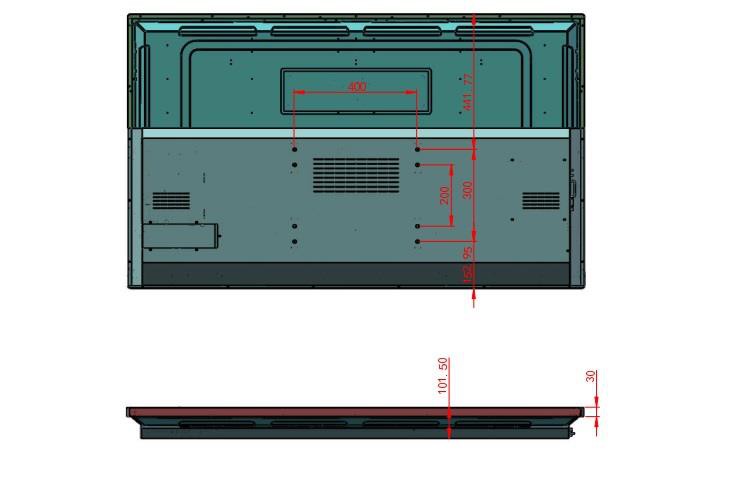

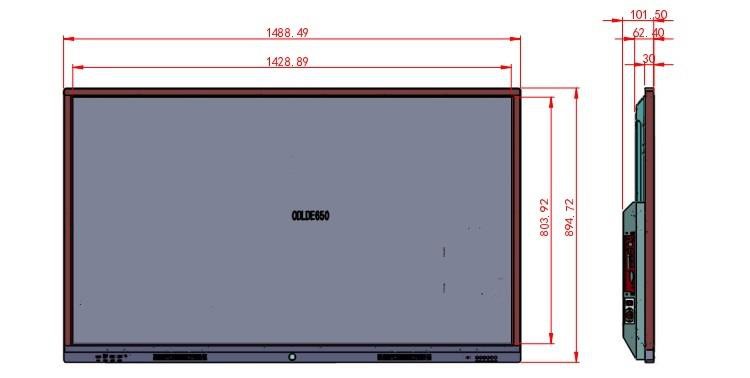

Dimension:

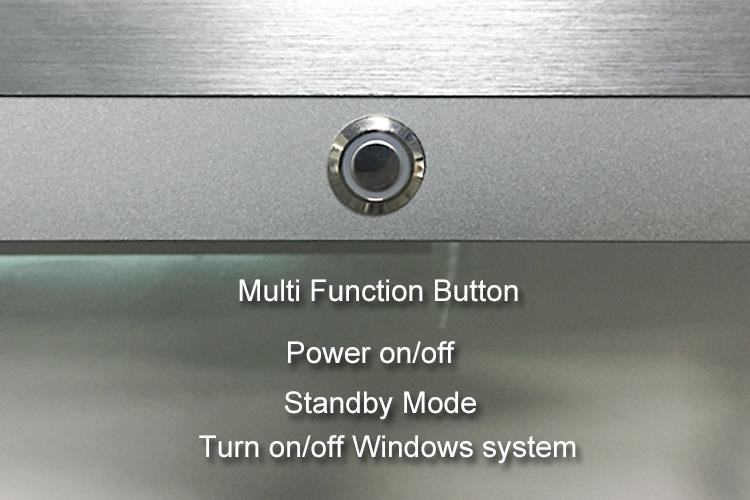

Product Features introduction:
Application
Meeting, Training, Teaching:
Delivery:
Regular models are available in stock and can be delivered on the same day as soon as possible.
If customized products involve proofing and docking, it will take about half a month for mass production
only after the samples pass the standard。
