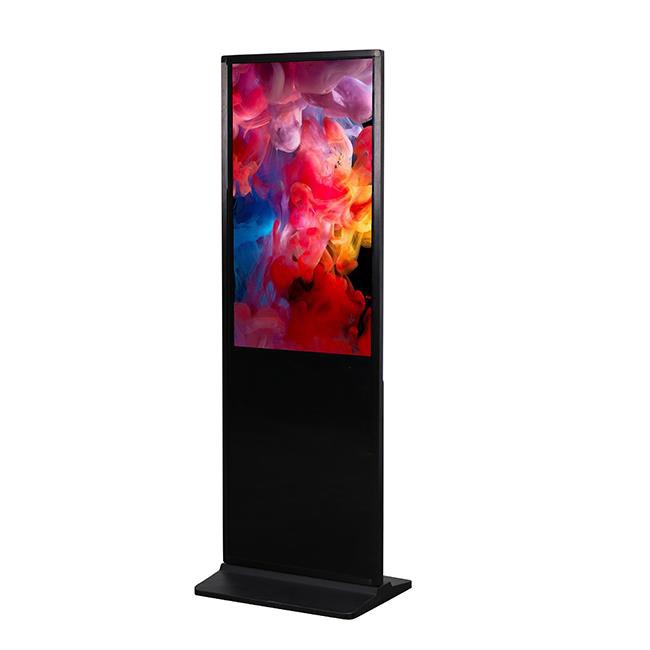

55 Digital Signage with Ir Touch Screen

Model: HD-55F-T Android Pro

√ Excellent design with apple shape, aluminum edging;

√ 55″ LG brand new original panel with LED backlight;

√ Excellent design with super slim body of only 30mm thickness;

√ Android OS, support to customize Windows OS;

√ Support to play program directly from USB;

√ System support USB upgrade and remote network upgrade;

√ Color available: black, silver grey, champagne golden;

√ Support Ethernet, WIFI network, and can customize 3/4G function;

√ Support to work together with HD-DS signage software.

√ Industrial level design, support 24/7 working;

√ CE&RoHS certified.

Product Specification

Display:

Display Screen	55″ TFT-LCD with LED backlight
Panel Brand	LG
Display Ratio	16: 9
Color	16.77M colors (8-bit)
Display area	1209.6*680.4
Resolution	1920*1080
Brightness	350cd/m2
Contrast	1100: 1
View Angle	89° left and right, up and down
Response Time	Less than 5ms
Life time	Over 50,000hrs

Android Pro Performance:

CPU	Quad core CPU, RK3288
RAM	DDR3 2G
Storage	Flash memory 16G (can expand)
Main Board	Industrial board
Graphic Card	Integrated graphics card
Network Card	10/100M/1000M adaptive card
WIFI	Support WIFI
OS	Android OS 6.0 above

Interface:

USB	USB2.0*2,
COM	COM*1
HDMI Output	HDMI*1
MIC Audio Input	MIC Audio*1
Line Audio Output	Line*1
Network	RJ45*1

Touch:

Touch Type	Infra-red
Points	10 points
Glass cover	Tempered glass cover
Response Time	Less than 5ms
Resolution	32767 * 32767
Position Accuracy	±1.5mm
Communication	USB2.0
Life Time	Over 60,000,000 touches

HD-DS Digital signage software:

HD-DS Key Features:

※ Easy to operate, user can manage the system anywhere as long as he has internet access;

※ Support online edit program and release program;

※ Support visually make program, can preview the program immediately;

※ Support centrally manage the system, but every terminal will download the program and play locally;

※ Networking based, central control of multiple kiosks;

※ Remotely control, such as restart, volume adjust, system upgrade;

Dimension:

Product Features

Why Choose Us

1. We are the manufacturer for digital signage and lcd video wall with over 10 years experience of producing products.

2. We have a professional sales team, all sales should be trained for 1 to 3 month before service customers.

3. Our professional technical team can quickly provide pre-sales and after-sales service. and we have full experience

in construction, our engineer team is integration of theory and practice.

4. We could provide OEM/ODM service for all kinds of customers. We have full design experience for indoor and outdoor display.

5. Samples are always available for checking quality and can be dispatched to you very quickly.

6. We have strict inspection of incoming materials and finished product inspection system, to ensure that the qualified

rate of products reached more than 99.8%.

7. We choose the most economical and safe transportation channel for all customers. Ensure the goods arrive

safely in the hands of customers.

8. Warranty (1-3 year).

Certificate

This product has passed the CE, RoHS and FCC certificate as the following:

FAQ:

Q: Are you factory?

Yes, we are a factory, located in Shenzhen China.

Q: What’s the lead time?

The lead time is 7 working days (have stocks) 20 working days ( if no stock).

Q: What certificate do you have?

We have CE, RoHS, FCC, SASO… certificates meet the standard of different countries. A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.

Q: what brand of screen are you using?

A: we are using Samsung,LG,and BOE screen.

Q: Do you have your own enclosure factory?

A: Yes we do have our own enclosure factory, and we have the best structural Engineer, we hope to provide you with best

screen and shape, so OEM is also welcome. 42″ digital advertising boards
