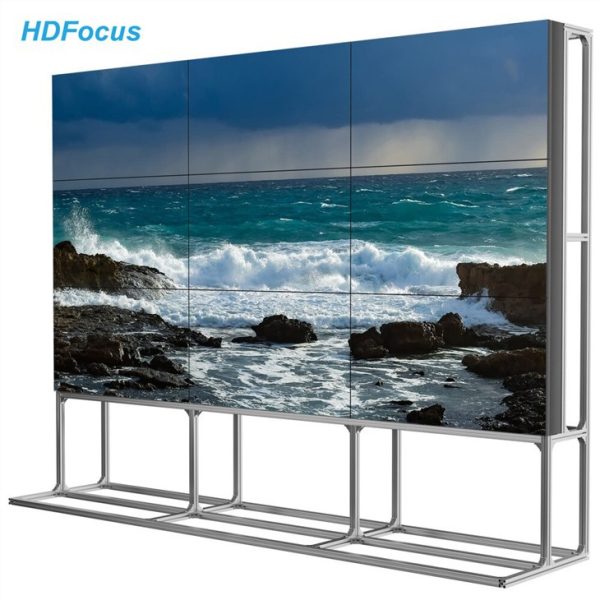

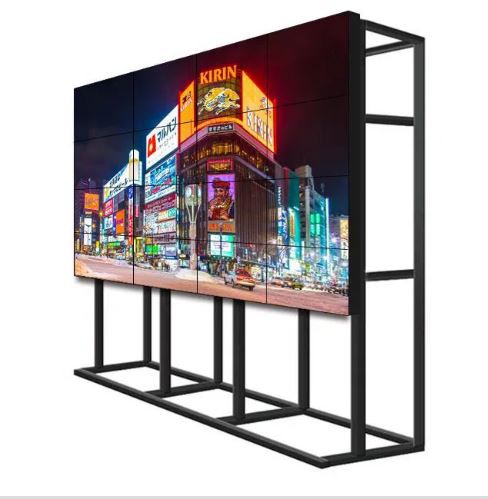

3×3 Video Wall For Shopping Mall

3×3 video wall for shopping mall, this is an LCD video wall solution, used for the shopping mall advertising, bigger display to attract more clients.
The video wall size is 55 inch, 3.5mm bezel, other bezels also availabe: 3.5mm, 1.8mm and 0.8mm; we use the original Samsung and LG brand new panel, so the display quality is assured, but with very competitive price.

Product Details



HDV55 Main Features:

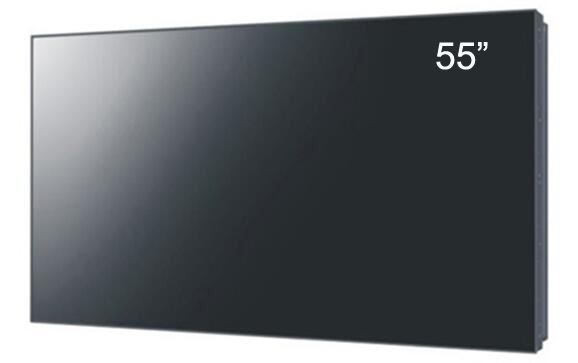

Video Wall  55″

Share

Achieve Ultimate Picture Quality through Advanced Factory CalibrationCaptivate

Audiences through a Narrow Bezel and Optimized Panel Design

High-Performing Display Readability and Durability for your Business EnvironmentNarrow bezel of 3.5mm,

 other bezels available: 1.8mm and 0.8mmFull HD resolution of 1920*1080P;Built in control software as a total solution.

Detailed product specification:



Display Screen

 55″ FHD-LCD   panel with LED   backlight

Panel Brand

Samsung

Display Ratio

16:9

Bezel

3.5mm

Color

16.77M full colors

Display area

1209.6mm(H)*680.4mm(V)

Resolution

1920*1080

Brightness

500cd/m2

Life time

Over  50,000 Hours

Contrast

3500:1

View Angle

178° left   and right, up and down

cheap video wall

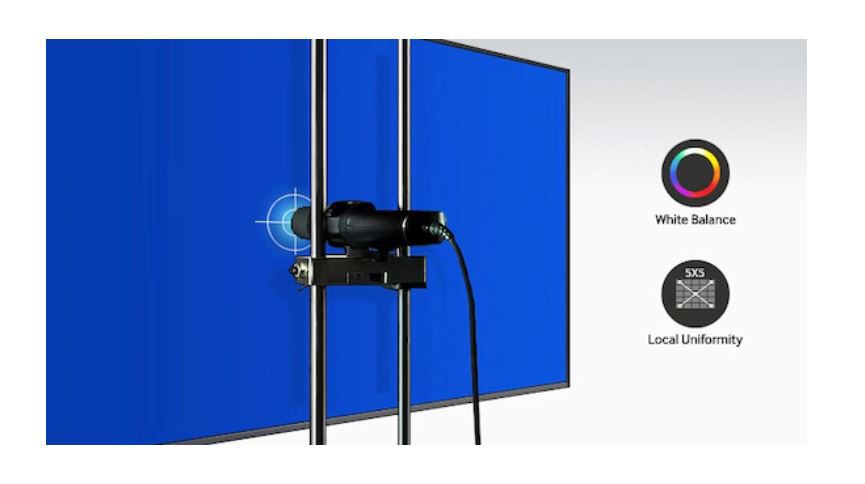

Achieve Ultimate Picture Quality through Advanced Factory Calibration duing production before shipping

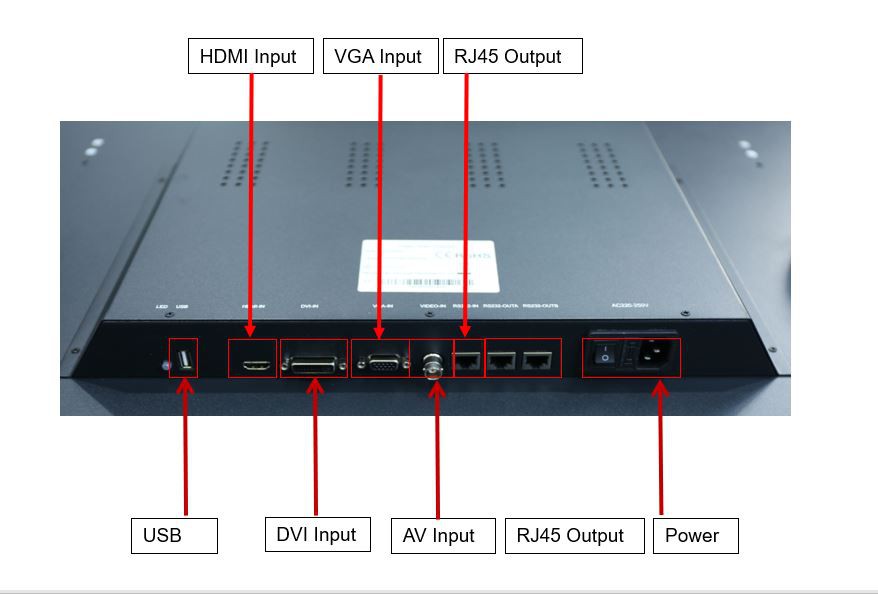

There are rich input and output interface, like the following pictures:

video wall system



USB

USB*1

HDMI   Input

HDMI*1

VGA  Input

VGA*1

DVI   Input

DVI-I*1

AV Input

AV *1

RJ 45 Input

RJ45 Input*1

RJ 45 Output

RJ45 Output*2

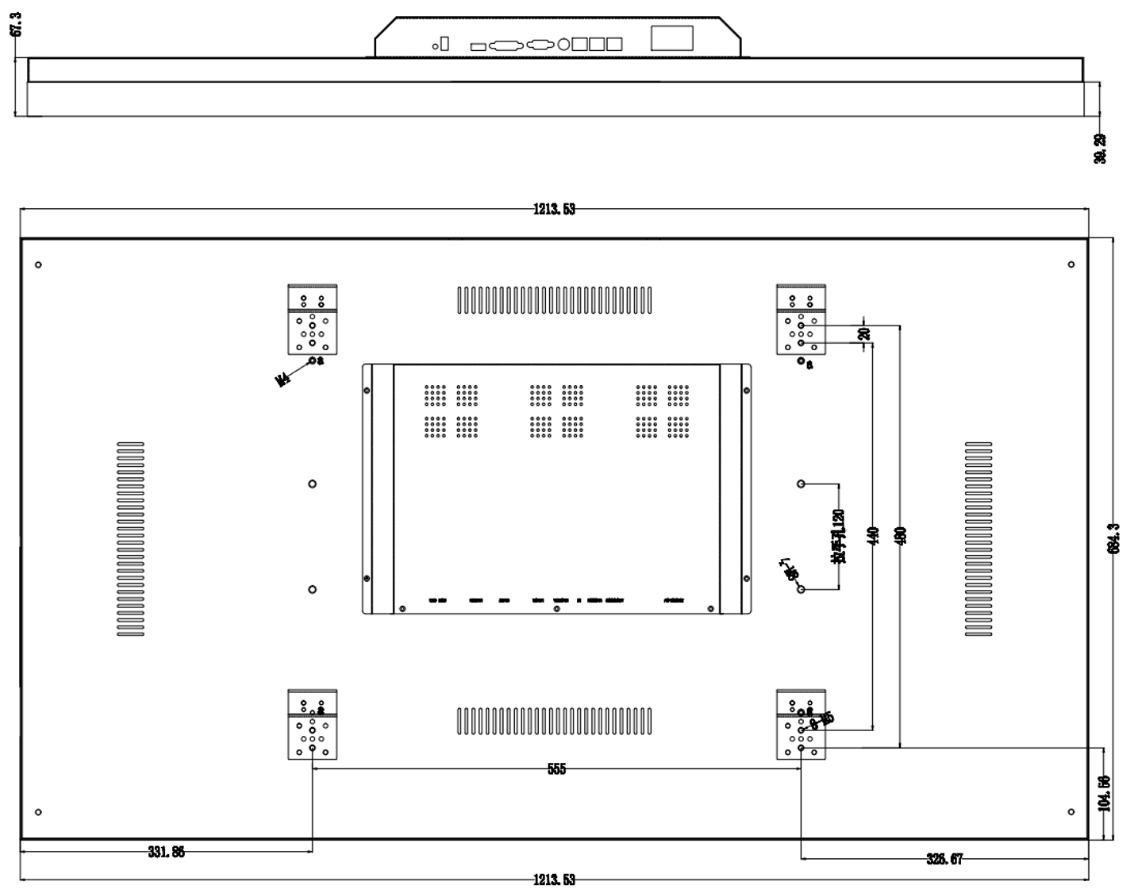

HDV55 product dimension:

video wall dimension



Format

PAL, NTSC

Voltage

DC12V/AC100-240V 50/60Hz

Power Output

≤ 280W

Working Temp

0- 60   ℃

Net Dimension

1213.53mm×684.3mm×67.3mm

Package   Dimension

1340mm×860mm×135mm

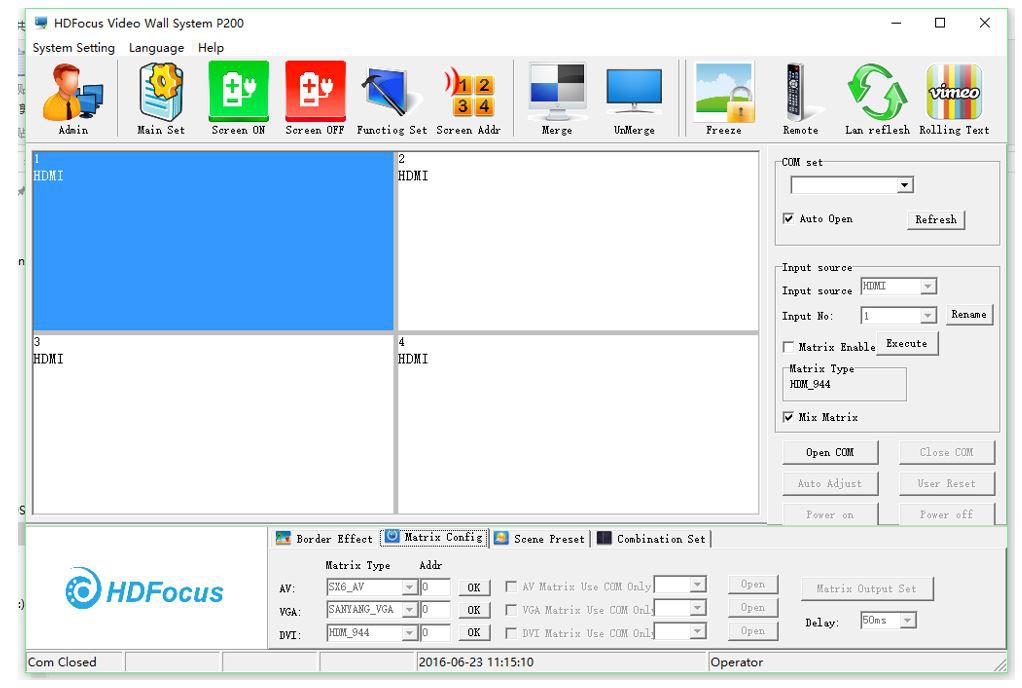

Software: Multi-Screen Display System

We offer detailed user manual to use this software, it is easy to use:

Video wall control software

 More specifications:

  • Diagonal Size55″

  • Panel TypeD-LED DID

  • Resolution1920 x 1080

  • Pixel Pitch (HxV)3.5mm

  • Active Display Size (HxV)1209.6 x 680.4mm

  • Contrast Ratio4000:1

  • Viewing Angle (H/V)178/178

  • Response Time8 ms

  • Display Color8 bit – 16.7M

  • Color Gamut72 %

  • H-Scanning Frequency30kHz ~ 81kHz

  • Maximum Pixel Frequency148.5MHz

  • V-Scanning Frequency48Hz ~ 75Hz

  • Brightness500 cd/m2

  • Dynamic Contrast Ratio10,000:1

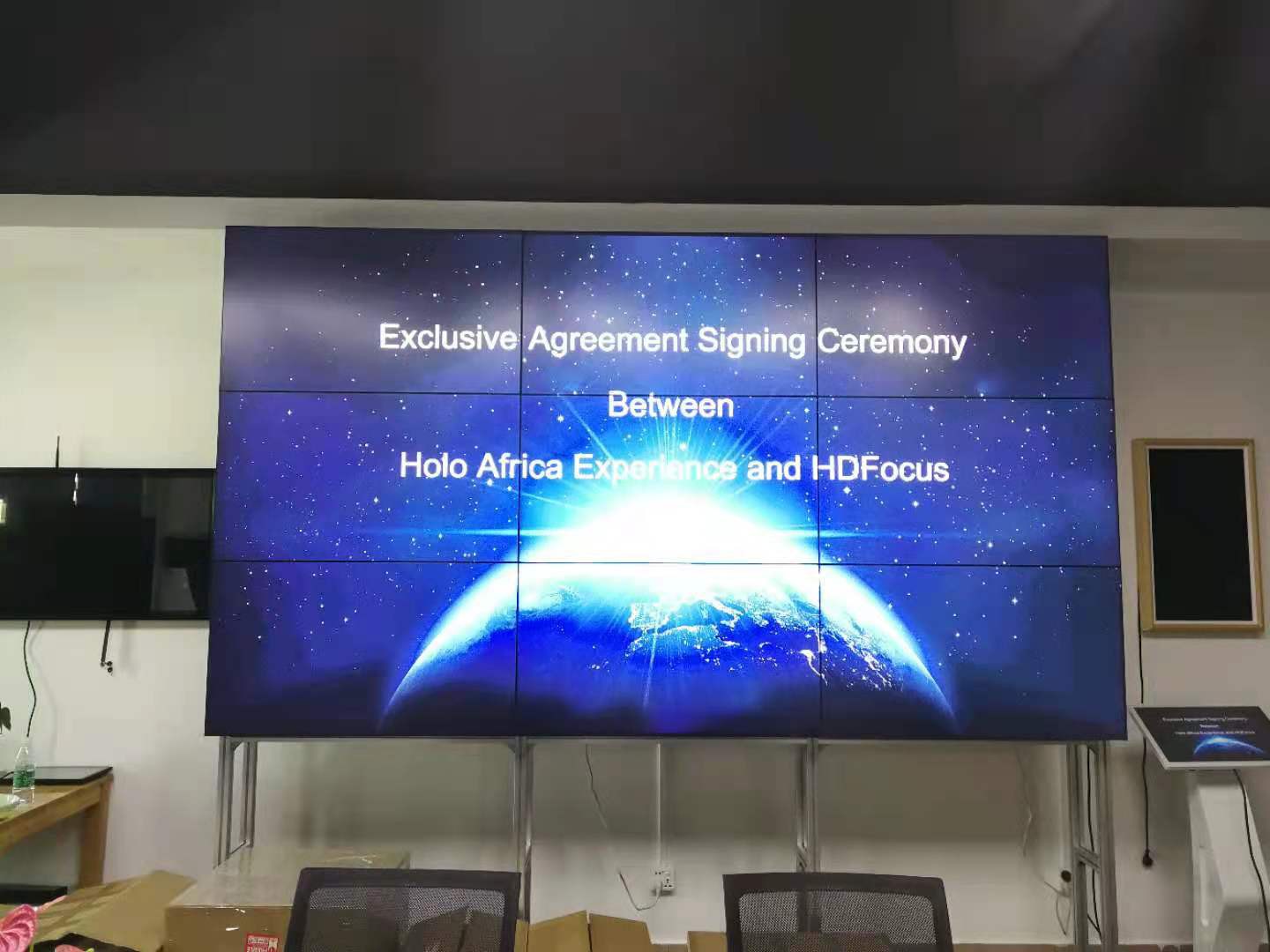

Case pictures after installation: 3*3 configuration, total 9 video wall displays:

led walls for churches

Our HDFocus 3×3 video wall for shopping mall delivers a continuously immersive and engaging viewing

experience through high-performing readability and durability. Designed for 24/7 continuous operation in

challenging environments. The displays offer 500 nit brightness to broadcast vivid, highly legible images

and visual messaging in various lighting conditions.This solution can be used in various applications,

such as transportation terminals, shopping malls, office lobbies and control rooms.

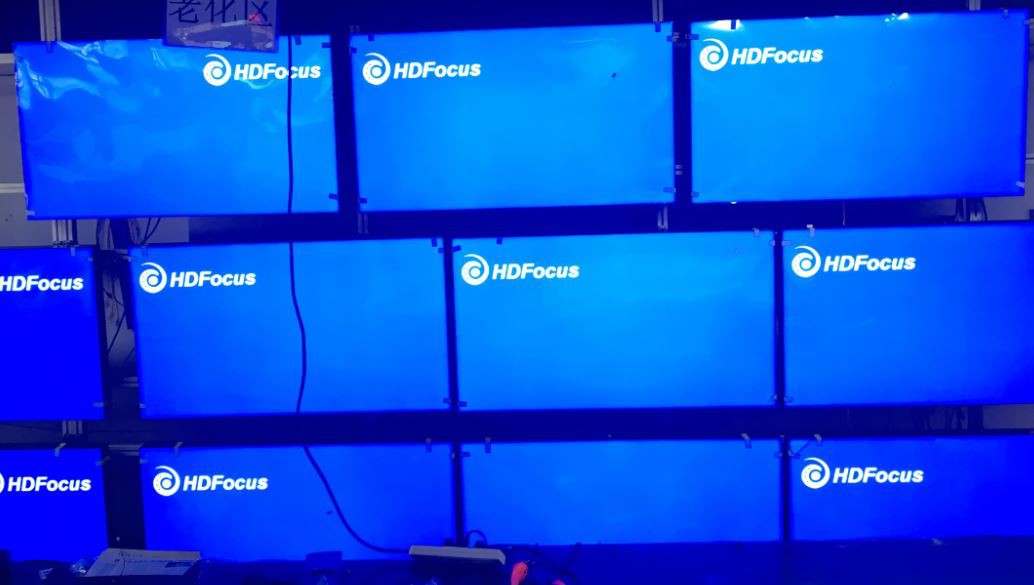

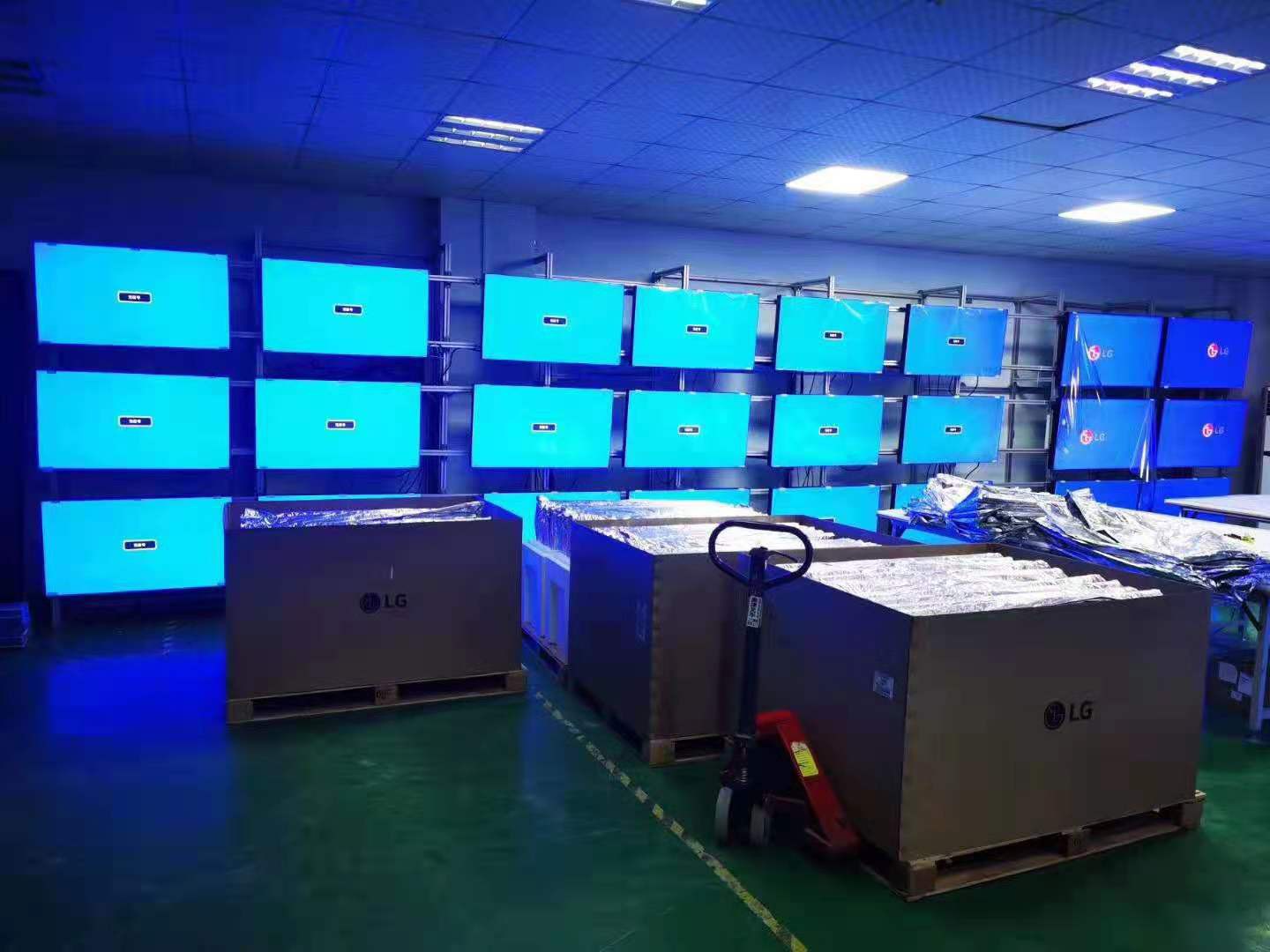

Our production pictures in our production lines:

lcd wall

video wall display
