| MATERIAL: | 6063 | TEMPER: | T5 |
|---|---|---|---|
| HARDNESS: | 2200pa | SURFACE TREATMENT: | Mill Finish |
| USAGE: | Heatsink | TYPE: | OEM Profile |
| ALLOY OR NOT: | Is Alloy | SIZE: | 200*150 |
| HIGH LIGHT: | large diameter aluminum extrusions, extruded aluminium profiles | ||

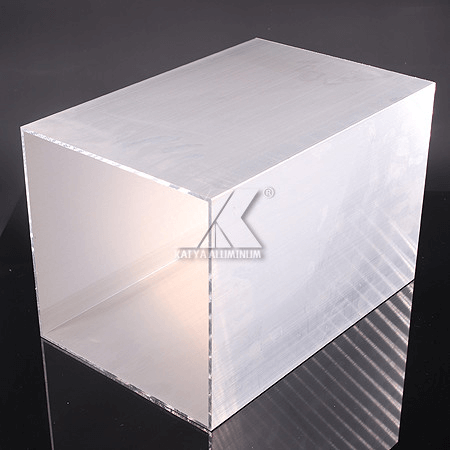

OEM Large Size 200*200mm Square Tube Aluminum Profile 6000 Series 2200pa
Prodictopm Description

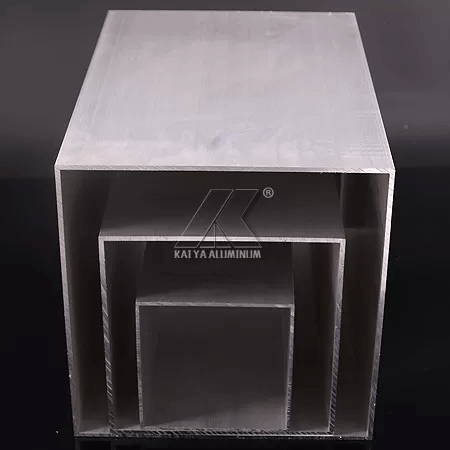

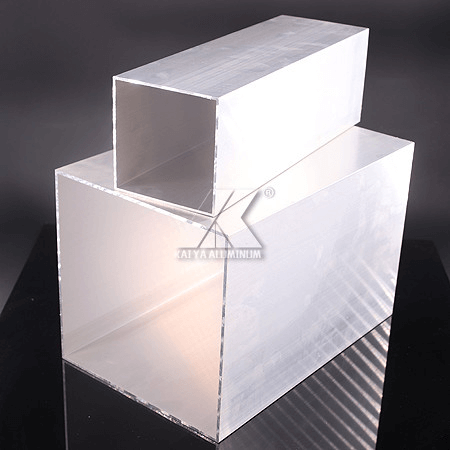

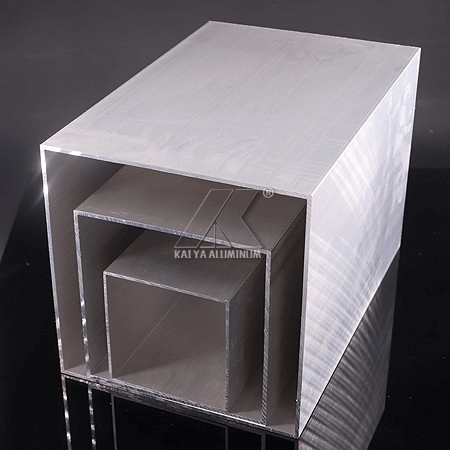

With more big size of aluminum square tube: 200*250 , 300*150 , 150*150 , 250*250 and so on, the customer can save the money for opening mould.
1) Material: 6063 6060 6463 6061 T5 T6 T66
2) Surface Treatment: Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting
3) Color: Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating
4) MOQ: 500KG.
5) Length: 5.8-5.98m, or as customer’s request
6) Sample delivery: Two weeks (one week for mould +one week making sample)
7) Sample design: It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.
8) Maximum extruder machine: 8000 tons; Minimum extruder machine: 500 ton
9) If the profiles are coutomized, we will make the sample first, after we get the confirmation from you, we will start production.
Our profile advantages:
| Complex integral shapes | Cost effective |
| Low tooling costs | Design flexibility |
| Versatility in joining | Machinable |
| Rapid prototyping | Short delivery |
| Wide range of finishes | Plenty of patterns and colors for your choice. |
| Strict control for surface finish, very little scratch. | Accurate mold as well as accurate size. |
| Standard alloy composition | Both ends of the profiles are very plain and with no burr. |
Electrophoretic coating surface treatment
|
Class |
Film thickness um | ||
| Local thickness of anodize oxide film um | paint film local film thickness um | complex film local film thickness um | |
| A | ≥9 | ≥912 | ≥21 |
| B | ≥9 | ≥7 | ≥16 |
| Note: Electrophoretic paint profiles are supplied at B level, and other grades can be supplied as required by customers. | |||
