18.5 Inch Queuing Floor Standing Kiosk

Product Details

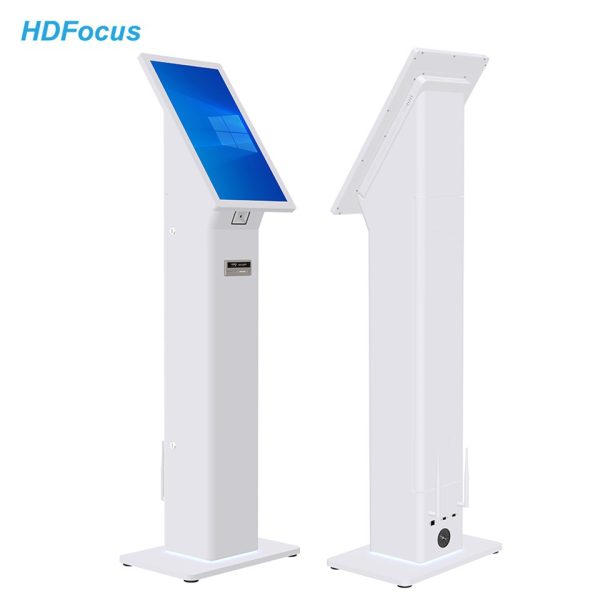

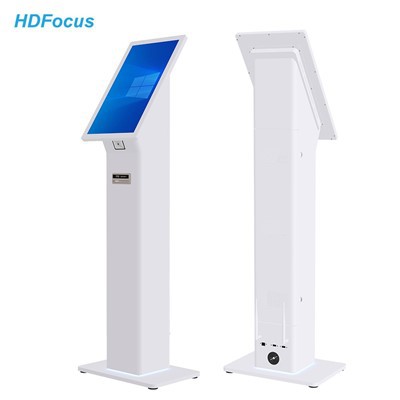

18.5 Inch Queuing Floor Standing Kiosk

One of the key features of this kiosk is the built-in sensitive 10 points capacitive touch screen, allowing for easy navigation and interaction. In addition, the kiosk also includes an 80mm thermal printer, with a 58mm thermal printer as an optional add-on. The kiosk also features a sensitive QR scanner, which can be used for ticketing or payment processing. Additionally, customers can benefit from the optional built-in 2M/5M/8M pixels camera for capturing images and videos.

Main Features：

◆ High end design, perfect for self-ordering and queuing application;

◆ Fashionable design with LED lighting strip at the bottom;

◆ Full HD brand new original panel;

◆ Built in sensitive 10 points capacitive touch;

◆ Built in 80mm thermal printer, 58mm thermal printer(optional);

◆ Built in sensitive QR scanner(optional);

◆ Built in 2M/5M/8M pixels camera(optional);

◆ NFC modules can be customized;

◆ Windows 7, 8.1 and 10 trial version or Android OS (optional);

◆ Support Ethernet, WIFI network, and can customize 3/4G function;

◆ Industrial level design, support 24/7 working;

◆ CE, RoHS, TELEC and PSE certified

◆ ISO9001 and ISO14000 certified;

Display

Display Screen	18.5″ TFT-LCD
Panel Backlight	LED Backlight
Display Ratio	16:9
Color	16.7M colors
Display area	409*230mm
Resolution	1920*1080
Brightness	350cd/m2
Contrast	≥ 1000:1
View Angle	89° left and right, up and down
Screen Response Time	14ms
Life time	Over 50000hrs

Windows motherboard performance

Configuration options	Pro version: Intel I3 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD(can expand).
	Max version: Intel I5 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD(can expand).
	Maxplus version: Intel I7 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD(can expand).
Graphics card	Intel® HD Graphics card integrated
WIFI	Support WIFI dual band 2.4G/5.2G
Windows OS	Windows7, 8.1, 10,11 trial version; Linux OS

Printer

Type	Thermal printer 58mm/80mm
Print width	576 dots
Resolution	203DPI
Print Speed	150mm/s(max)
Paper Width	79.5 ± 0.5 mm
Paper Thickness	60~120um
Print Baud Rate	9600,19200,38400,115200
Life	1 million times

QR Scanner

Sensor	CMOS
Resolution	640*480
Communicate Port	TTL232, RS232, USB(HID,CDC) available (need choose one of them, standard is USB port)
Format	2D, 1D
Accuracy	5 mil
Lighting	White LED
View Angle	Horizontal: 68°, Portrait: 51°

NFC (optional)

Support Card	MIFARE One ( M1 ), S50 , S70 , NTAG2 the X- the X- series, Fudan F08 , the I – COD E-the X- and other types of label; the same time, also supports second-generation ID card, the city a cartoon, bank identification card
Supporting Agreement	ISO15693 , ISO14443-A , ISO14443-B , ISO 18092
Wave Special Rate	115200 bps
Reading Distance	20mm~60mm (depending on the tag and antenna)
Interface	USBUART TTL

Camera (optional)

Sensor Type	CMOS
Pixel	2M/5M/8M pixels
Resolution	1920*1080
Field Angle	95°
Connect	USB 2.0

Touch

Touch Type	Capacitive Touch
Points	10 points
Touch Recognition	> 1.5mm(Finger, touch pen opaque objects)
Scanning Accuracy	4096*4096
Scanning Rate	200Hz
Response Time	Less than 5ms
Communication	USB2.0
Life Time	Over 80,000,000 touches

Others

Format	PAL, NTSC
Speaker	10W*2
Freestand Racker	Basement*1
Voltage	DC12V/AC100-240V 50/60Hz
Power	≤ 80W
Product Net Dimension	1417450300mm
Gross Weight	25KG

Dimension

For added convenience, the kiosk can be customized with NFC modules, allowing for instant contactless payments. With its advanced features and sleek design, the 18.5 Inch Queuing Floor Standing Kiosk is a versatile solution that can be used in a wide range of industries, including retail, hospitality, and entertainment.

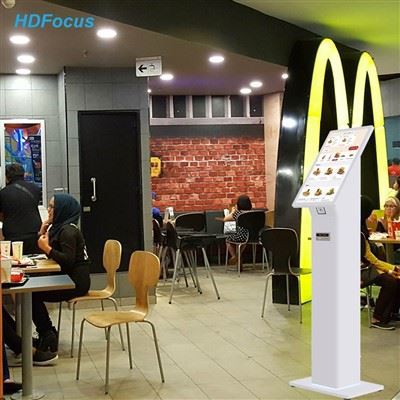

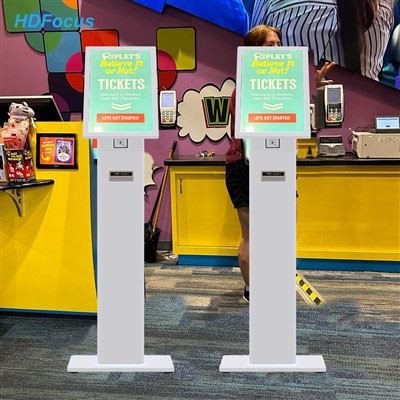

Whether it’s for self-ordering at restaurants, queuing for tickets at events, or checking in at hotels, the kiosk is an efficient and user-friendly solution. It can even be used as a tool for digital signage, displaying advertising or important information. With its innovative features and sleek design, the 18.5 Inch Queuing Floor Standing Kiosk is the perfect solution for businesses looking to enhance their customer experience.
