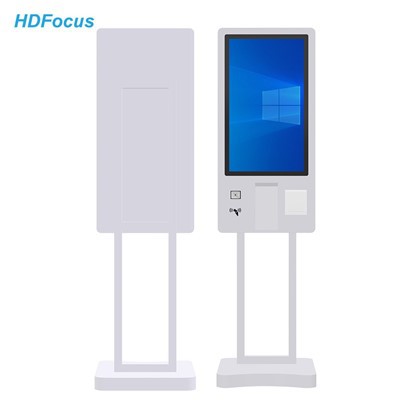

Self Ordering Floorstanding Kiosk

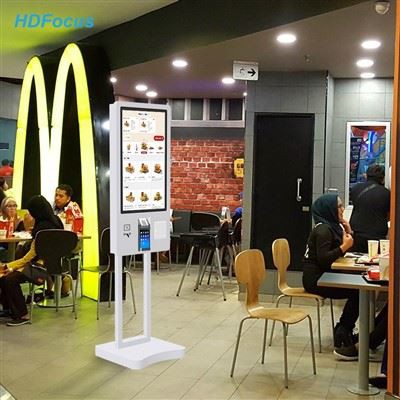

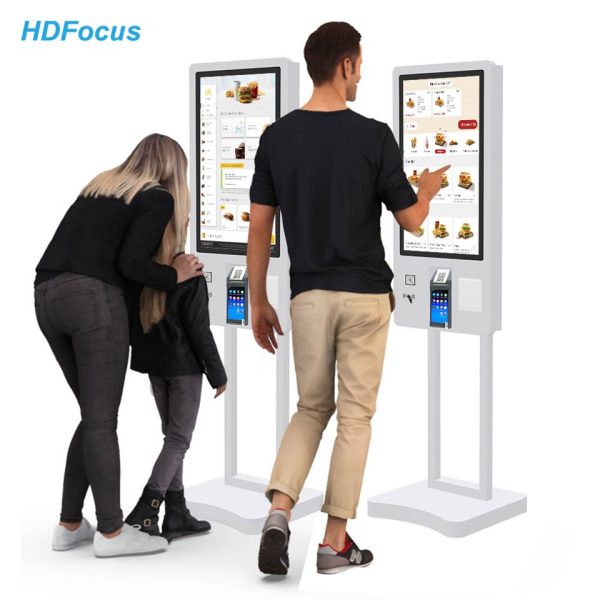

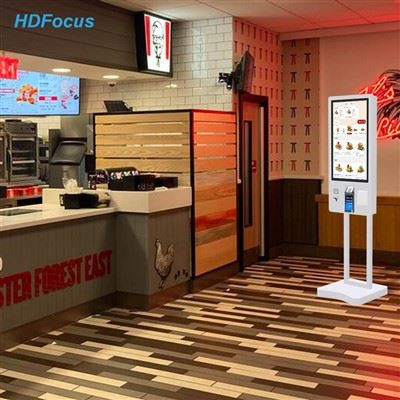

This Self-ordering Floorstanding Kiosk device can be placed in any area of the restaurant, and customers can use it to view the restaurant’s menu, place orders, pay, etc. The device is very simple to use and does not even require any manual intervention from the customer. Just follow the prompts on the screen to complete the order. In addition, the Self-ordering Floorstanding Kiosk also has voice recognition and touch screen operation methods to meet the needs of different customers.

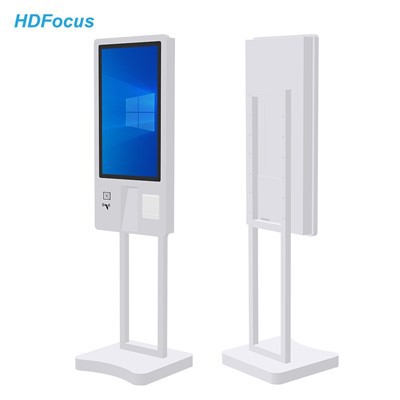

One of the standout features of this kiosk is its flexible design. It can be installed as a wall-mounted or floor-standing unit, making it ideal for environments where space is at a premium. Additionally, it comes equipped with a built-in POS slot, which enables seamless payment processing for customers.

The kiosk boasts a full HD brand-new original panel that delivers vibrant colors and crystal-clear visuals, which help to enhance the self-ordering experience. Moreover, the kiosk features a sensitive 10 points capacitive touch technology that ensures effortless and accurate interaction with the device.

Specification

Type	Thermal printer 58mm/80mm
Print width	576 dots
Resolution	203DPI
Print Speed	150mm/s(max)
Paper Width	79.5 ± 0.5 mm
Paper Thickness	60~120um
Print Baud Rate	9600,19200,38400,115200
Life	1 million times

QR Scanner

Sensor	CMOS
Resolution	640*480
Communicate Port	TTL232, RS232, USB(HID,CDC) available (need choose one of them, standard is USB port)
Format	2D, 1D
Accuracy	5 mil
Lighting	White LED
View Angle	Horizontal: 68°, Portrait: 51°



optional

NFC

Support Card	MIFARE One ( M1 ), S50 , S70 , NTAG2 the X- the X- series, Fudan F08 , the I – COD E-the X- and other types of label; the same time, also supports second-generation ID card, the city a cartoon, bank identification card
Supporting Agreement	ISO15693 , ISO14443-A , ISO14443-B , ISO 18092
Wave Special Rate	115200 bps
Reading Distance	20mm~60mm (depending on the tag and antenna)
Interface	USBUART TTL



Camera

Sensor Type	CMOS
Pixel	2M/5M/8M pixels (optional)
Resolution	1920*1080
Field Angle	95°
Connect	USB 2.0



Product Detection









Self-ordering Floorstanding Kiosks also provide great business value to restaurants. It automatically calculates revenue and helps manage the restaurant’s cashier, inventory, customer feedback, and other information to improve sales and customer satisfaction. The device can also provide advertising displays for restaurants and increase additional sales revenue.



Overall, the Self-ordering Floorstanding Kiosk is a smart and efficient solution that not only streamlines processes and frees up staff time, but also enhances customer satisfaction and engagement. Its sleek design, coupled with its high-tech features, make it a must-have for businesses looking to revolutionize their self-ordering operations.
