Outdoor 4k Hd Led Display Pixel 2.6mm For Rental Stage Background
| Place of Origin | China |
| Brand Name | TBC |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | D2.6 |
Product Details
Pixel:2.6mm
Weight:8kg
Cabinet Size:500x500mm
Refresh:3840Hz
Contrast:3000:1
Material:Die Cast Aluminum
High Light: high brightness led screen, high resolution led display
Product Description
Outdoor 4K High Definition Led Display P2.6mm Rental Stage Background
Application:
Outdoor 4K High Definition Led Display P2.6mm are very high end rental led display product, high definition plus high brightness, capable to used for both outdoor and indoor enviroment.
Available in 2.6mm, 2.9mm and 3.2mm

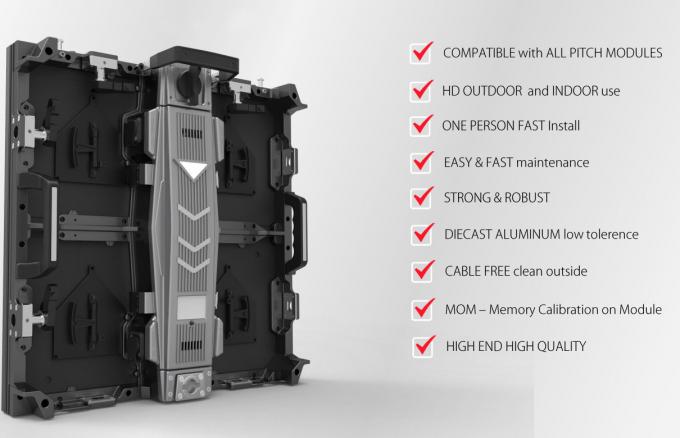

Features and Advantages:
1. Black Shell SMD High Brightness
5000 nits high brightness for outdoor good visibility
2. Calibration Memory in Modules
Allow customer to re-calibrate the display pixel by pixel
3. Fast Installation
Fast lock systems ensure fast installation, saving labor cost
4. High Refresh Rate
3840Hz high refresh rate, no ghosting, no flicker, no moire

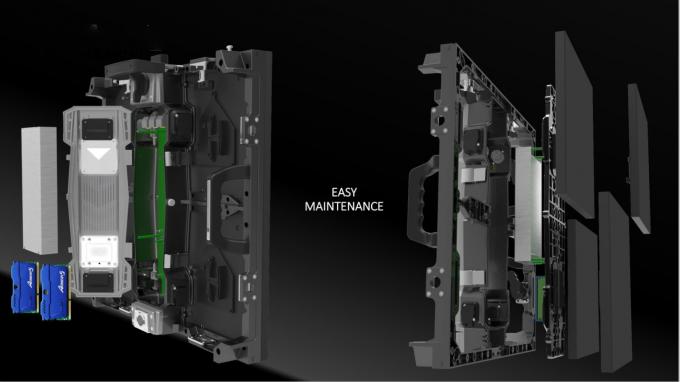

5. Front Maintenance
Take off module quick and easy
6. Stable and Reliable
Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.
5000 nits high brightness for outdoor good visibility
2. Calibration Memory in Modules
Allow customer to re-calibrate the display pixel by pixel
3. Fast Installation
Fast lock systems ensure fast installation, saving labor cost
4. High Refresh Rate
3840Hz high refresh rate, no ghosting, no flicker, no moire
5. Front Maintenance
Take off module quick and easy
6. Stable and Reliable
Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.
Parameters:
| Brightness | nits | 4000 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle – Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle – Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 9 | ||
| Cabinet width | mm | 500 | ||
| Cabinet height | mm | 500 | ||
| Cabinet depth | mm | 90 | ||
| Cabinet area | sq. m. | 0.25 | ||
| Cabinet material | Aluminum | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP54 | ||
| Operating temperature range | deg. C | – 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 2.604 | ||
| Pixel matrix per cabinet | 192×192 | |||
| Pixels per cabinet | 36864 | |||
| Lines per meter | 384 | |||
| Pixels per sq. meter | 147474 | |||
| LEDs per sq. meter | 147474 | |||
| Recommended minimum viewing distance | m | 3 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 3840 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 970/330 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
