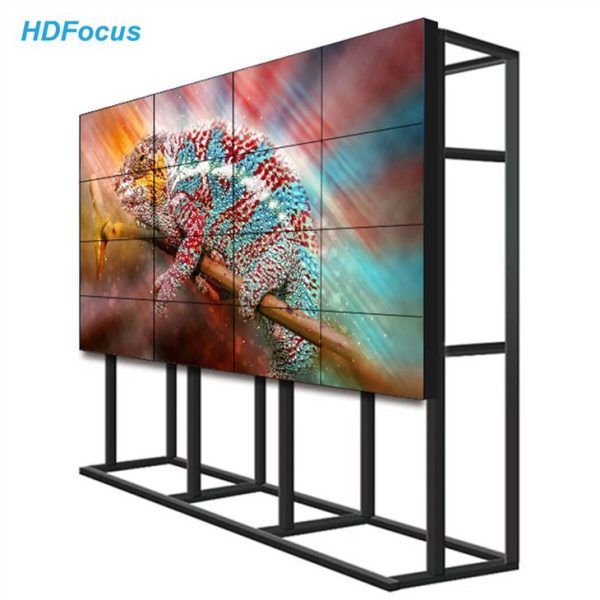

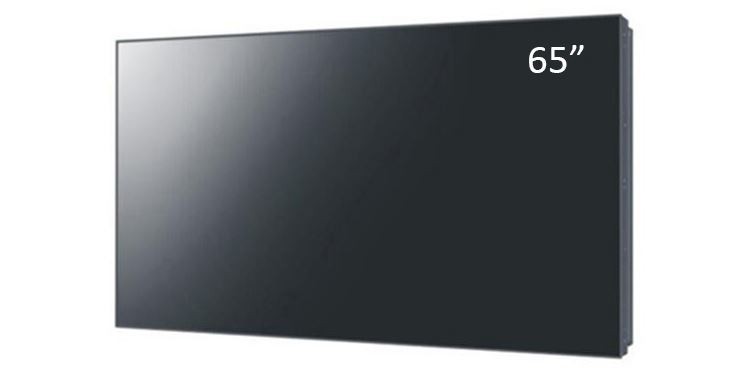

65” 3.5mm Patchwork Display

For the model HD-N6570S, we use original Samsung panel inside, it featured with its high brightness of 700nits, it support 4K of 3840*2160 resolution, which can ensure the reliable and perfect display color quality;

Product Details



Model: HD-N6570S

For the model HD-N6570S, we use original Samsung panel inside, it featured with its high brightness of 700nits,

it support 4K of 3840*2160 resolution, which can ensure the reliable and perfect display color quality;

and also built in industrial level processor, this can ensure the reliable 24/7 hours running.

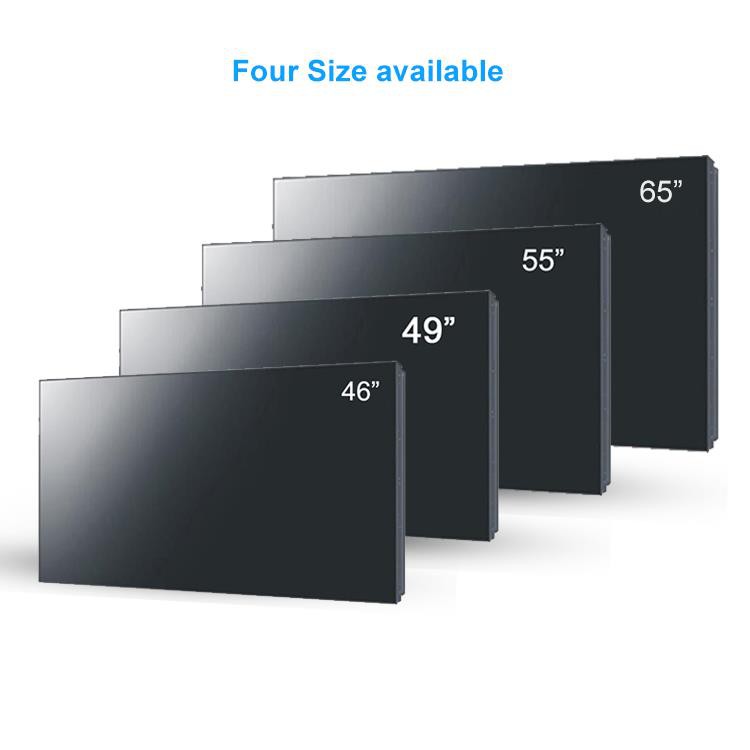

We also can produce other sizes, such as 46” and 65”, with different bezels, range from 3.5mm to 0.88mm.

This product is widely used in the digital signage application, such as the advertising display in control center,

 traffic control center, command center, shopping mall, airport, retail shops etc..

We also offer professional video wall display control software as total solution.

Product Specification

Display:

Display Screen

65″ FHD-LCD panel with LED backlight

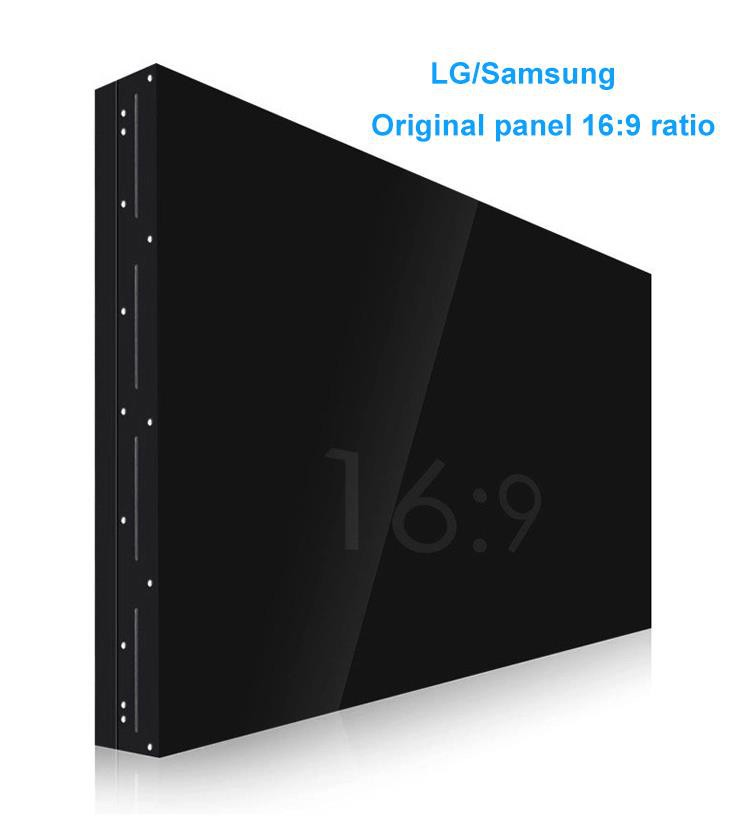

Panel Brand

Samsung

Display Ratio

16:9

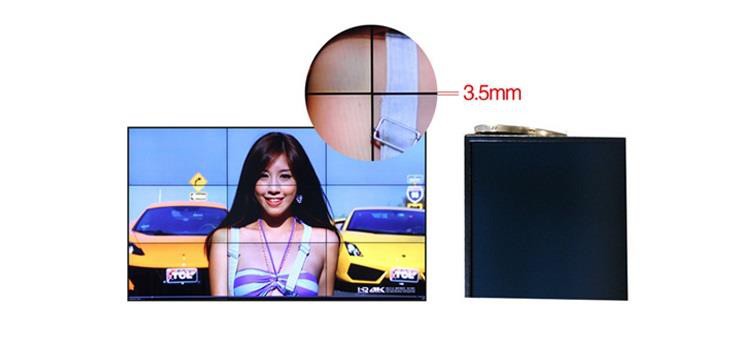

Bezel

3.5mm

Color

16.7M (8bits-True)

Display area

1428.48 (H) x 803.52(V)mm

Resolution

3840*2160

Brightness

700cd/m2

Life time

Over 50,000 Hours

Contrast

3500:1

View Angle

178° left and right, up and down

Video Wall Processor built in:

√ All-in-one solution with built in video wall processor, support to full picture splicing display with splitter;

and also can work together with matrix switcher and video wall processor;

√ Multi channels parallel processing, signal processing powerful;

√ RS232 serial remote control; each unit to support two-way RS232 loop out;

√ Does not need to dial the code to set up ID, the debugging is simple;

√ Support to 4K processor, to achieve the total video wall display achieve 4K resolution.

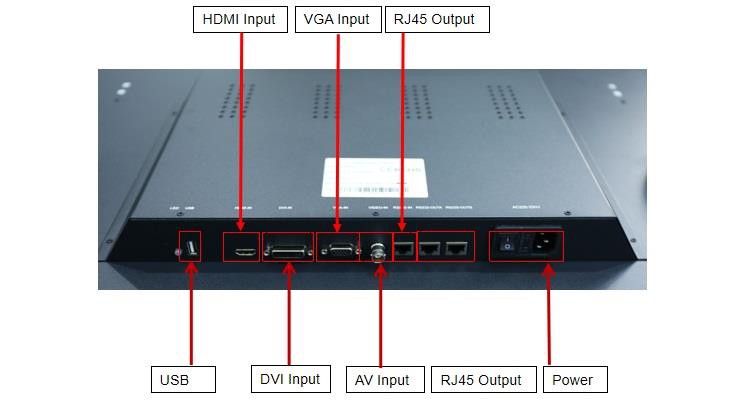

Interface:

USB

USB*1

HDMI Input

HDMI*1

VGA Input

VGA*1

DVI Input

DVI-I*1

AV Input (BNC)

AV Input*2

AV Output (BNC)

AV Output*2

RJ 45 Input

RJ45 Input*1

RJ 45 Output

RJ45 Output*2

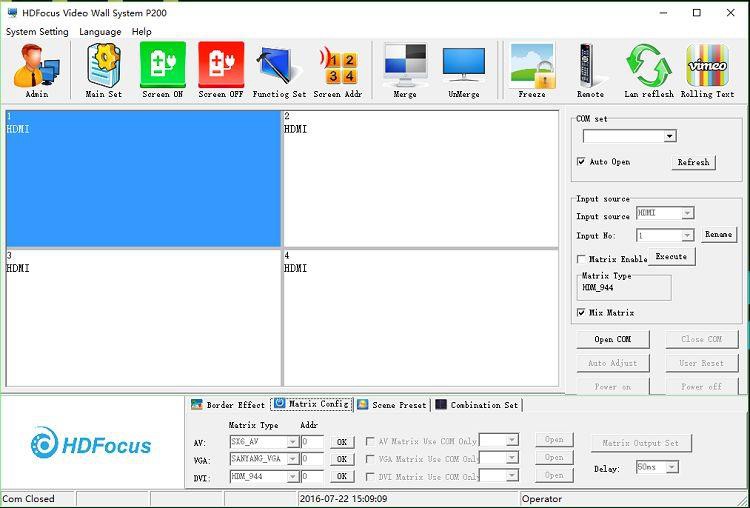

Video Wall Control software:

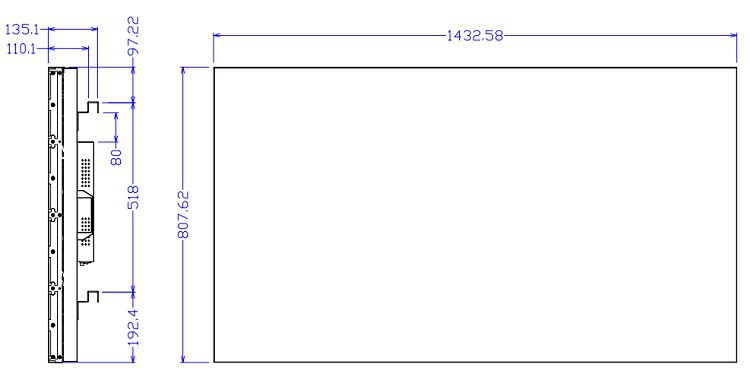

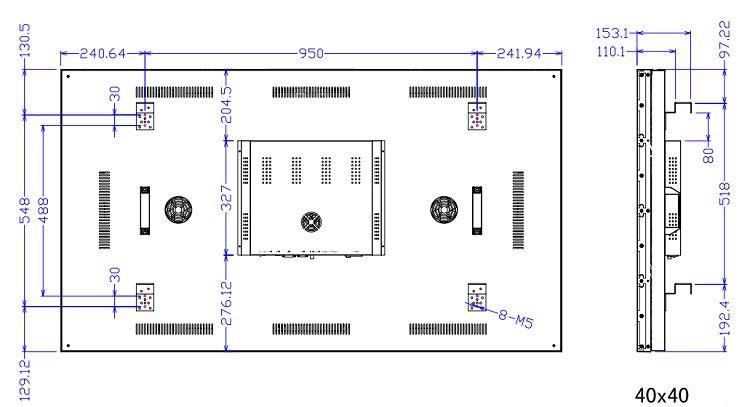

Dimension:



Product Features

65 led video wall for sale

65”3.5mm patchwork display

65”1.7mm patchwork display

65 black board big led screen

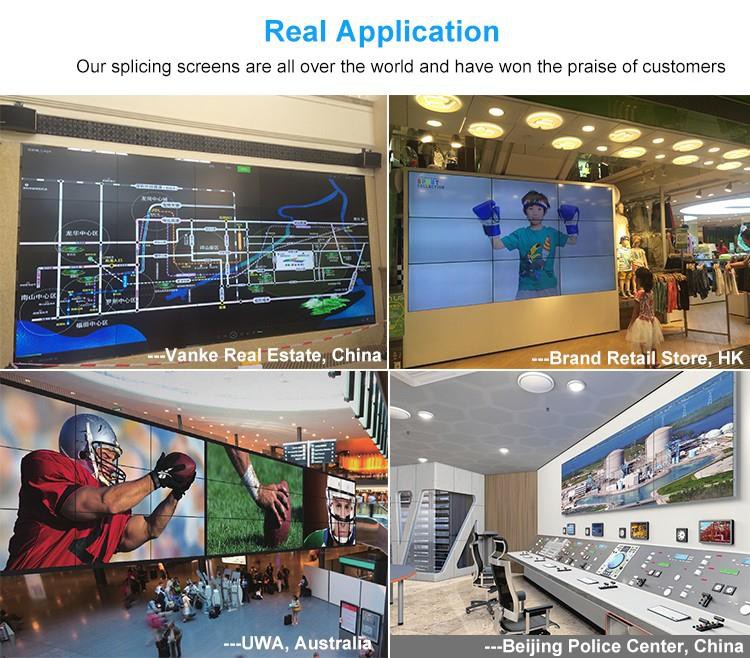

Application

Because of the bigger splicing display effect, this product is widely used in the advertising application,

such as shopping mall, chain store, airport, KTV, event etc.., to attract people’s attention.

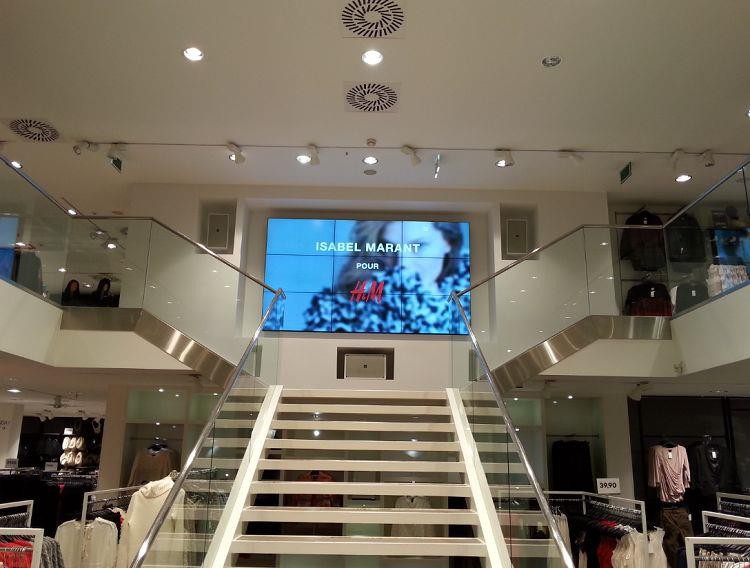

The following case is installed in Korea:



Certificate

This product has passed the CE, RoHS and FCC certificate as the following:

7.14 (1)

FAQ:

Q1. Are you factory?

Yes, we are a factory, located in Shenzhen China.

Q2. What’s the lead time?

The lead time is 7 working days (have stocks) 20 working days (if no stock).

Q3. What certificate do you have?

We have CE, RoHS, FCC, SASO… certificates meet the standard of different countries.

Q4. What’s the warranty?

The warranty time is 1 year, can extend with extra cost.

Q5. Can you put our Logo on your product?

Yes, we can silk print your Logo on our product, we can do OEM and ODM.

Q6. Do you offer the software?

Yes, we offer digital signage software for both Android and Windows system,

meanwhile the training for software.

Q7. Could you accept L/C payment?

Yes, we accept payment by L/C, T/T, Paypal, Trade Assurance and so on.
