MF-P15.625

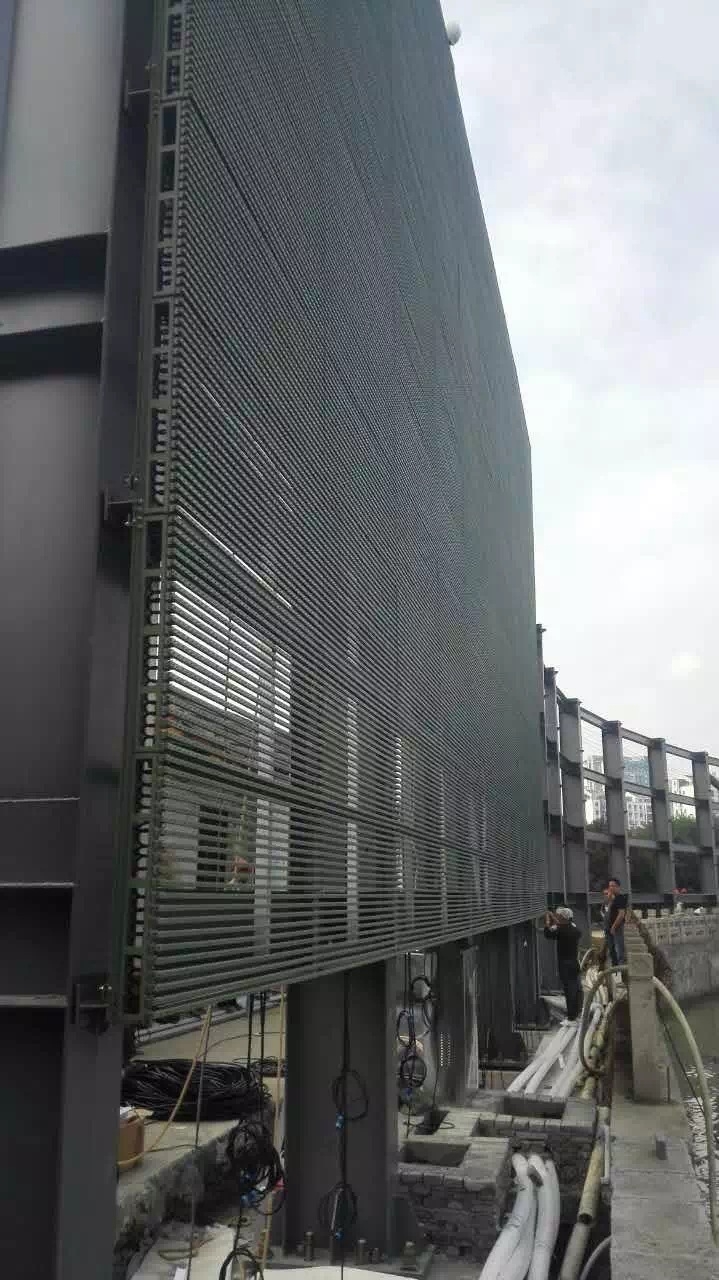

Strip contructure, Lightweight,Super thin, high transparent, Easy to be installed,saving support steel constructure cost. For outdoor building fixing installation.

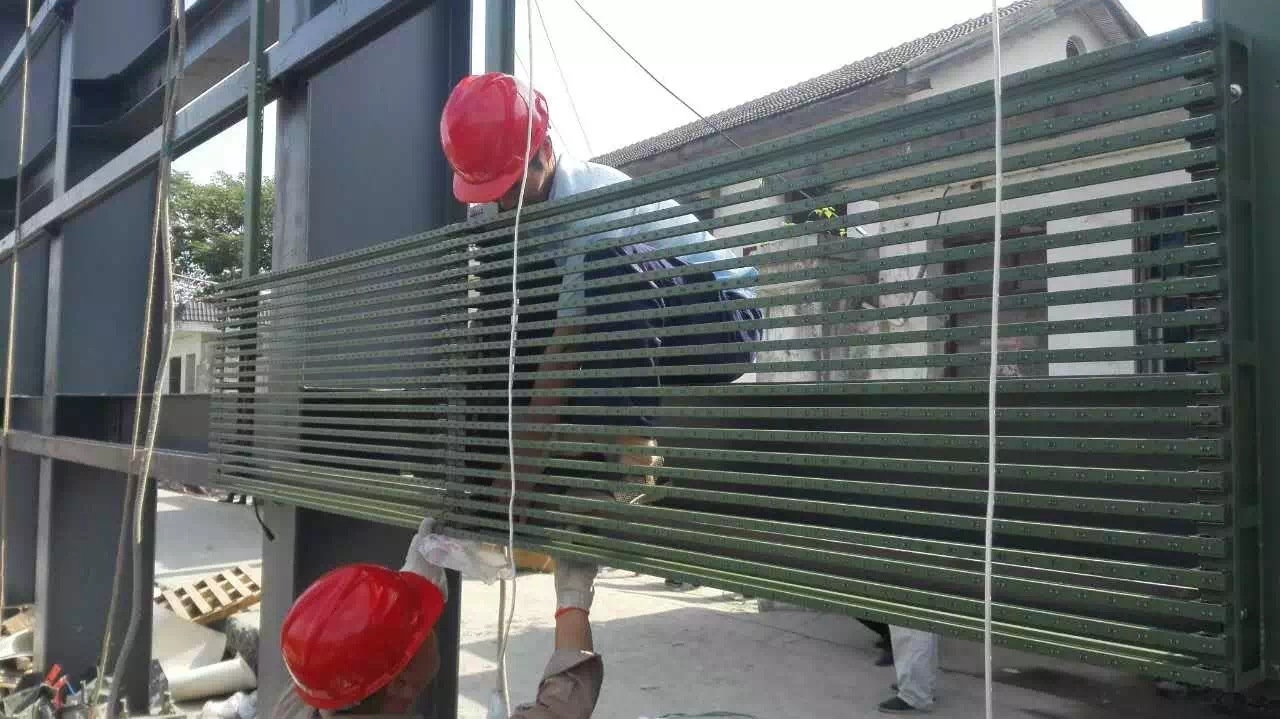

1.Strip constructure, easy for repair and replace, less cost in maintance.

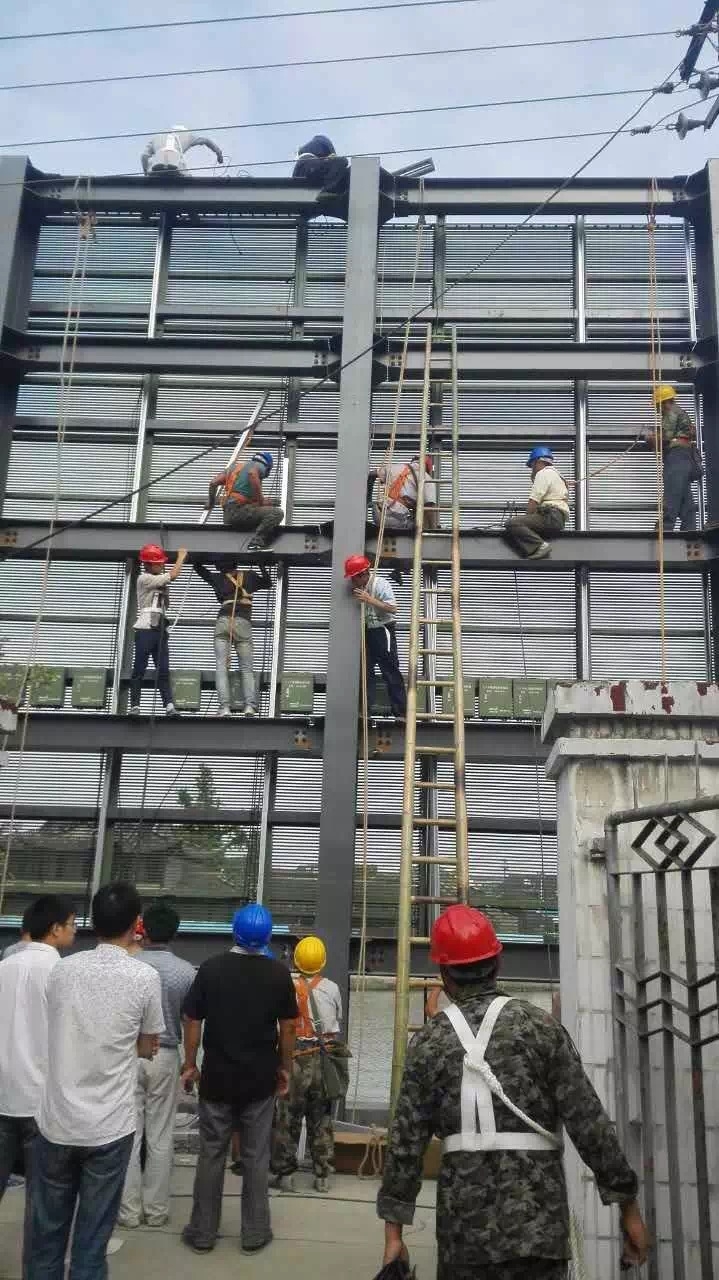

2.Lightweight: no more than 30kg/㎡, half weight saved comparing to normal cabinet LED displays, reducing the materials and difficult level of installation. saving cost in support steel structure and safer.
3.Strip constructure, high transparent, excellent in heat dispatch, no air condition required, anti-wind.
4.High quality DIPs technology, and unique hardware can provide fantastic video performance.

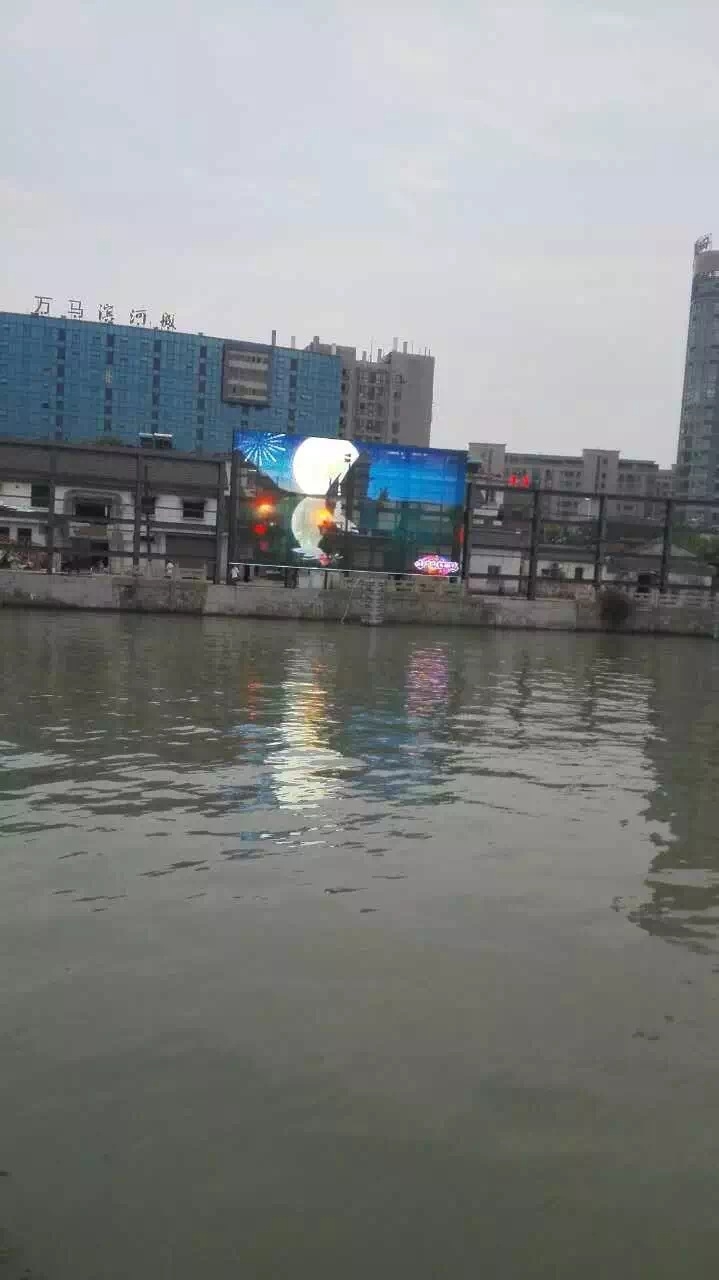

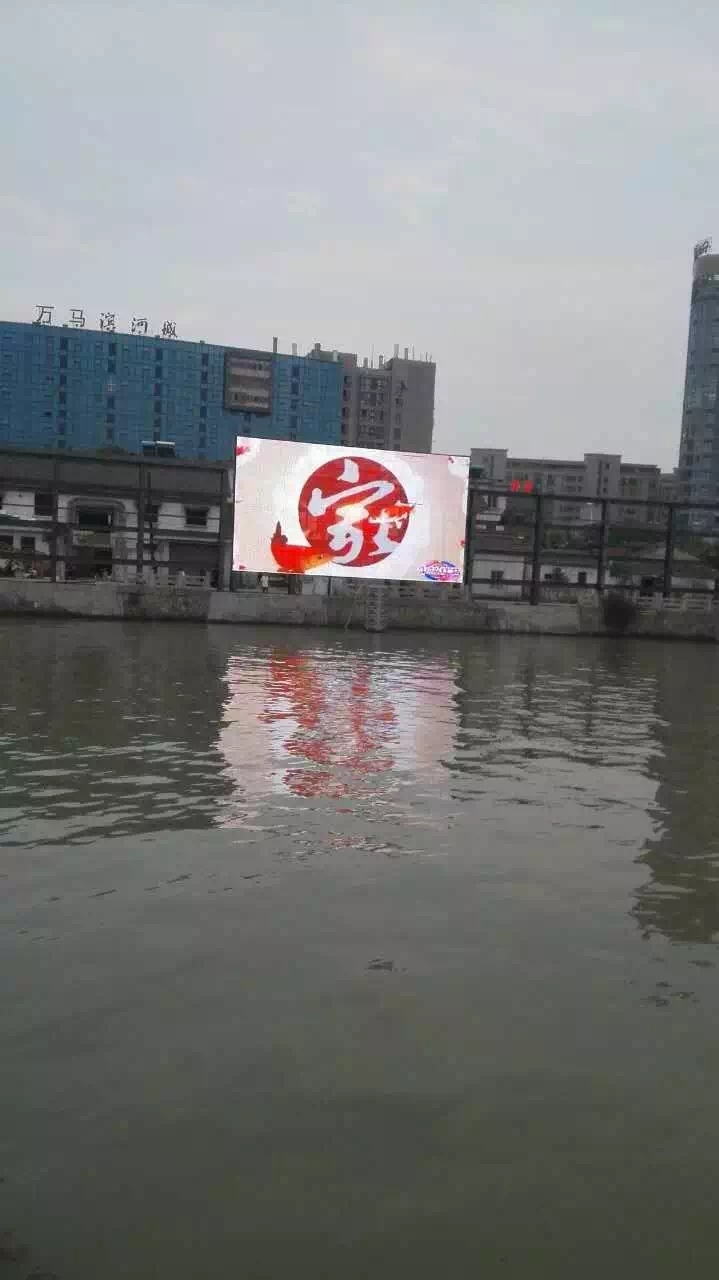

5.Suitable to building installation.
屏体

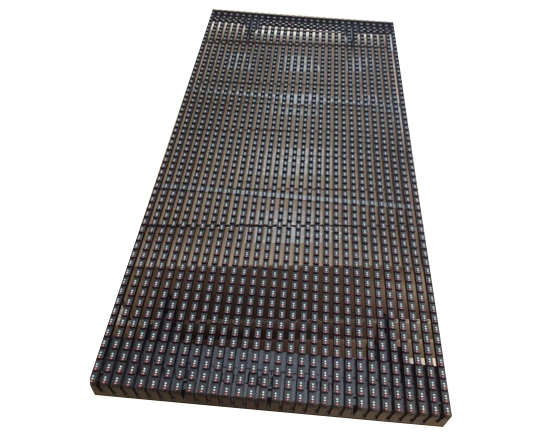

Panel
项目 Item 参数 Parameter
产品型号 Model Number MF-p15.625
物理点间距 Pixel pitch 15.625mm
物理密度 Pixels Density 4096点/m2
发光点颜色 Pixel configuration 1R1G1B
LED封装 Package mode DIP3466
箱体尺寸 Dimension 500mm*1000mm
模组分别率 Pixel resolution 32dots(W)*64 dots(H)
模组重量 Weight 7kg/Panel
驱动方式 Drive type 恒流驱动Constant drive
扫描方式 Scan mode 1/1扫描 1/1 scan
接口方式 Port type HUB75-A
白平衡亮度Brightness of white balance ≥ 6500cd/m2
最佳视距 Best viewing distance 16M~150M
最佳视角 Best viewing distance 120°(W) 70°(H)
环境温度 Temperature 存贮storage:-35℃~ 85℃
工作working:-20℃~ 50℃
相对湿度 Opration humidity 10%-95%
屏体厚度 Thickness 65
防护等级 protection level IP65
供电
Power
工作电压 Working voltage AC220V±10%
平均功耗 Average Power consumption 130W/㎡
最大功耗 Max.Power consumption ≤480W/㎡
控制系统Control system 控制主机 CPU Pentium4 or above P4或 以上
操作系统 Operation system WIN98/2000/NT/XP
控制方式 Control method 同步控制 Synchronization
主要技术参数 Main technical
parameter
驱动器件 Driving device 恒流驱动 Constant currentdriver IC
刷新频率 Refresh frequency ≥2380HZ
灰度/颜色 Grey scale/colors RGB各256级,可显示16.7M颜色
256levels of each color(RGB)/16.7M colors
平均无故障时间 MTBF ≥9000hours
电源开关 Power switch 自动开关Automatic switch
显示模式 Display Mode 800*600/1024*768
