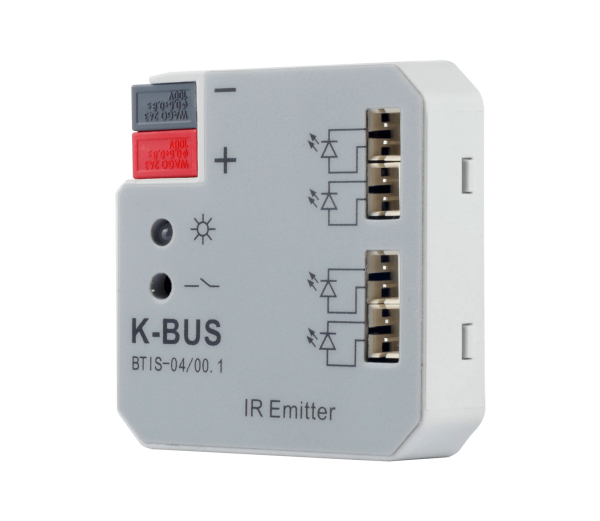

IR Emitter

Description

• 4 channels, up to 64 different IR codes can be learned/storedfor per channel
• Support multi-sending and delayed-sending
• Each channel can link up to 16 group addresses
• The IR codes can be assigned to 1bit or 1byte objects
• Each main function can include 5 slave functions
• The transmitting distance is max.2m

• Capability of learning over 95% remote control units in the market
• Using USB port to communicate with the PC, it is easy to learn the functional control codes of the IR remote controller, and store the codes to the database of the PC Software
