Our products can touch 20 points on the screen at the same time, and can write, zoom in, zoom out, erase, drg and other shortcuts in the writing function interface.
What’s more, you can write something clearly on the whiteboard in different colors.
Production Introduction
| Technical Specification: | ||
| Specification | Details | |
| Panel | ||
| Resolution | 3840 x 2160 | |
| Aspect ratio | 16:09 | |
| Brightness | 250cd/m² | |
| Contrast ratio | 2K:1 | |
| Viewing angle | 178°/178° | |
| Display color | 16.7 Billion (8bit) | |
| Touch type | Infrared 20 points touch | |
| Touch precision | ≤1mm | |
| Backlight type | D-LED | |
| Tempered glass | 4mm, Morse level 7 | |
| OPS Computer | ||
| CPU | I7-4th 2.4 GHZ | |
| Memory | 4GB | |
| Storage | 128GB SSD | |
| Interfaces | ||
| DP x1, HDMI TOUCH x2, HDMI x2 | ||
| USB FL x1, USB x1, TF(Max.128g) x1 | ||
| Output | RJ45 OUT x1, HDMI OUT x1, Earphone x1, Coax x1 | |
| Machine Parameters | ||
| Power consumption |
350W (Max) | |
| Speaker | Stereo 2*10W | |
| Material | Aluminum alloy front frame, metal back cover | |
| VESA | 400 x 400mm | |
| Product size | 1497 x 918 x 90mm | |
| Installation | Wall mount | |
| Accessories | Remote control x1 | |
| AC power cable (1.5M) x1 | ||
| Wi-Fi antenna x1, | ||
| Magnetic writing pen | ||
| Wall mount Bracket | ||
| Net Weight | 30KG | |
| Gross weight | 43KG | |
| Product Warranty | 3 Year Complete warranty card in Hardware and Software. | |
| Functional Specification: | ||
| S.N. | Speccification | Description |
| 1 | System Shall Support 4K super Clear Display. |
Full 3820*2160 high definition images can be displayed. |
| 2 | System shall support multi touch operation. |
10 point touch allows several people to write at the same time. |
| 3 | System shall support robust dual system. | Android and Windows dual system that would supports more applications. |
| 4 | System shall have Scan code to share. | Scan code are used for storing and sharing meeting records. |
| 5 | System shall have wireless screen cast | This function can share the content wirelessly, realizing real time demonstration. |
| 6 | System shall support precise written. | 1 mm recognition accuracy make zooming, mobile dragging, roaming and other shortcut operation easy. |
| 7 | System shall support wide viewing angle | The wide viewing angle can ensure clear images from all angles. |
| 8 | New technology | The screen assembly process adopts zero-fit technology to make the display screen naturally clear and transparent |
| 9 | Support gestures to pull up the menu | The menu can quickly adjust the brightness and sound, and switch the signal source process |
Specification
Main spec. of the 75 inch screen as below:
Our standard model supports SINGLE OS and DUAL OS, please check the configuration for Android and Windows OS:
Accessories
FREE PARTS: remote controller, wall bracket, touch pen, user manual, etc.
Available parts: mobile stand, OPS, camera, etc.

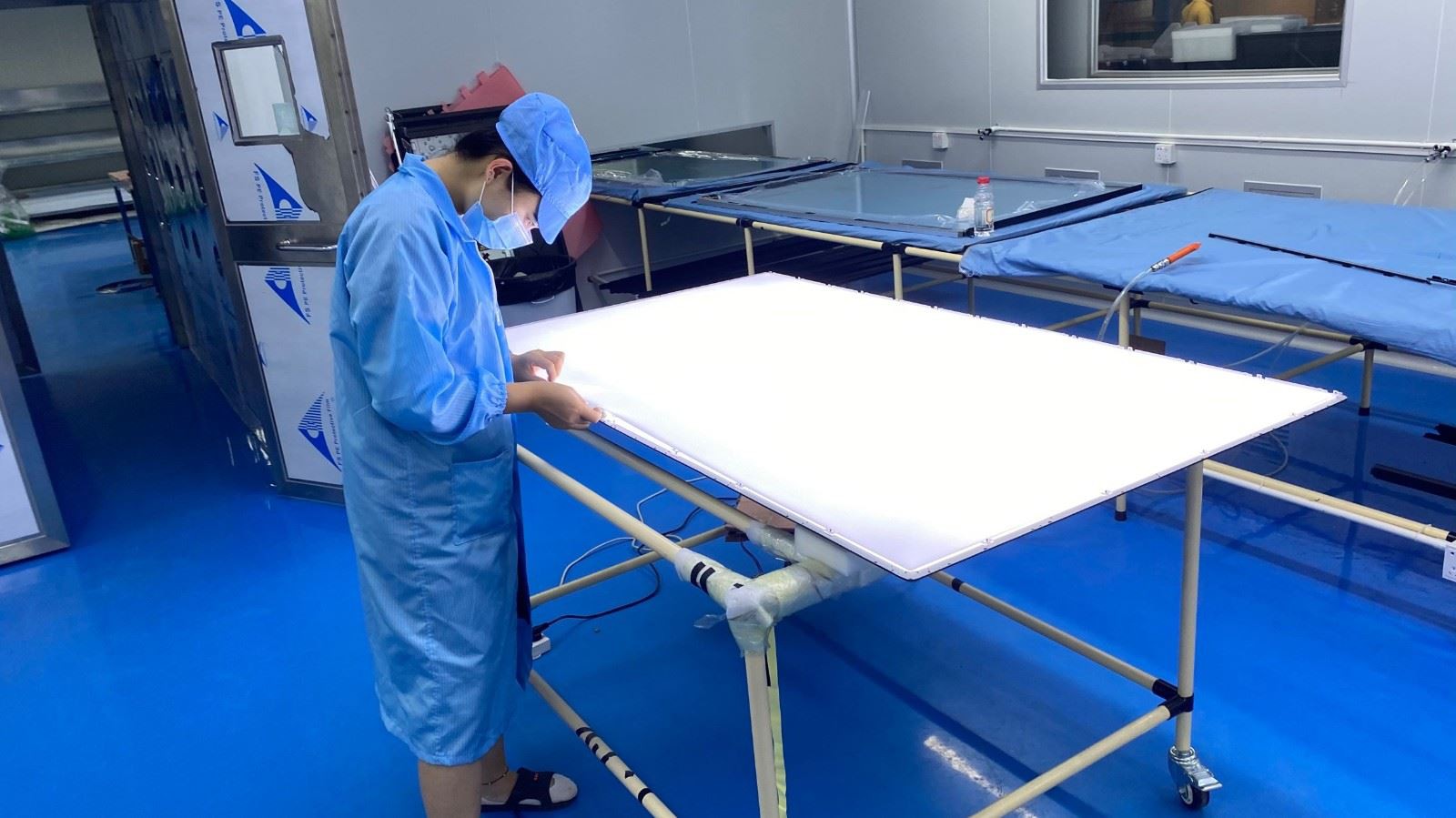

Factory
FAQ:
1. About Sample Sample is availble. We always supply sample to our clients for testing.
2. About OEM Welcome, within 15years OEM experiences, We have our own hardware factory and component engineer.Please send your own design and logo, we could make it as your idea/design.
3. About Quality Our company Core: Never Stop, Quality First. to be the future direcetion of All in one Interactive whiteboard.
4. About Payment T/T, Western Union, Paypal, BOLETO, mastercard, visa, e-Checking, PAYLATER, and MoneyGram.
5. What is the minimum order? Normally, we mainly deals with wholesale deals, but we also can accept MOQ 1 set as except.
